KFC-XP6902C
KFC-XP6902C

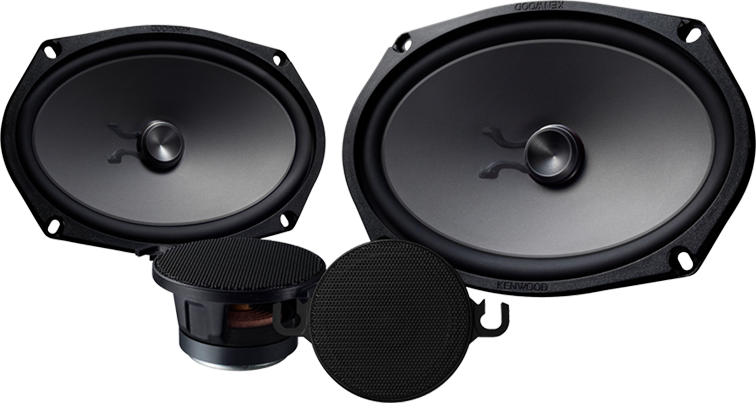

KFC-XP6902C6x9" + 2-3/4" Component Speaker System

  • Shallow 6x9" PP Cone Woofer
  • 2-3/4" Mid-High Speaker
  • Custom fit for select Chevrolet, Dodge, & Toyota
  • 6x9" Multi-Use Bracket Included

6x9" Vehicle Specific Component Speakers

Introducing the industry’s best solution for a 6x9” door speaker and vehicle specific sized dash speaker replacement – all in one package! By pairing a set of true mid-bass 6x9” drivers with 2-3/4” speakers, solid mid-bass response along with rich mid and high frequency reproduction is delivered. Multi-brackets are included, enabling easy OEM replacement in many Chevrolet, Dodge, Toyota vehicles and more!

・Multi-Use Basket

  • Type ① (CHEVROLET)
  • Type ② (CHEVROLET)
  • Type ③ (TOYOTA)
  • Type ④ (TOYOTA)
  • Type ⑤ (TOYOTA)
  • Type ⑥ (TOYOTA)

General Features

« scroll
Car Brand Vehicle KFC-XP6903C KFC-XP6902C
Bracket Bracket
CHEVROLET Silverado ('14-present)     Type ①*
Tahoe ('15-present)     Type ①*
Camaro ('15-present)     Type ②*
CHRYSLER 200 ('15-'17) -
300 ('11-present) -
DODGE Avenger ('08-'14) -
RAM ('10-present) -
Caliber ('07-'12)     -
Caravan ('08-present) -
Challenger ('08-present) -
Charger ('06-present) -
Journey ('09-present) -
TOYOTA Tacoma ('04-'16)     Type ③
Tundra ('07-present)     Type ③
Sequoia ('08-present)     Type ③
FJ Cruiser ('06-'18)     Type ③
4Runner ('02-'09)     Type ③
4Runner ('09-present)     Type ④
Highlander ('08-present)     Type ④
Camry ('11-'17) Type ⑤
Camry ('17-present) Type ⑥

*With spacer

General Features

Peak Input Power 300W
Rated Input Power 100W
Impedance
Woofer Features 6 x 9 inch PP Cone

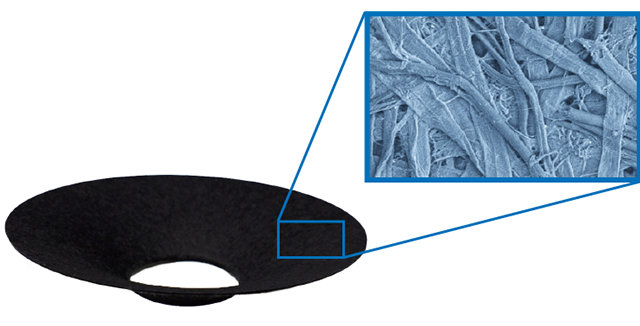

Midrange Features Acrylic Carbon Hybrid Cone
Specifications
Sensitivity 84 dB/ W / m
Frequency Response 45Hz -20KHz
Cutout Diameter 8-9/16 x 5-11/16 inch
Mounting Depth 2-3/4" Inch
Weight of Magnet(Woofer) 14.5oz

The above "referred" online retailers are authorized by KENWOOD.
They are listed here based upon meeting specific operational criteria and offer a very informative shopping experience,
along with exceptional customer service.

We want you to have the BEST product/support experience!

KENWOOD's manufacturer's warranty and any rebates offered by KENWOOD are not valid when purchased from an unauthorized dealer.
Buying from an unauthorized dealer also increases your risk of buying fake or counterfeit products.

« scroll
ELECTRICAL Impedance(Ω)
Peak Input Power(W) 300W
RMS Input Power(W)
CTA standards
100W
Sensitivity (dB at 1m)
CTA standards
84dB
Frequency Response(Hz)
CTA standards
45-23,000Hz
Woofer Diaphragm PP Cone
Size 153x229mm 6x9 inch
Surround Rubber
Basket Steel
Magnet Ferrite φ90xt15
Midrange Diaphragm PP Cone +Sub Cone
Size 44mm 2-3/4 inch
Surround Cloth
Basket Plastic
Magnet Ferrite φ50x18
Newtwork Midrange HPF -6dB/oct, 850Hz
Woofer LPF -6dB/oct, 850Hz
Bypass Selectable inch
Dimension Woofer
Width 236.4 mm 9-5/16
Height 164 mm 6-7/16
Top Height 82.3 mm 3-1/4 in.
Cutout Diameter 217 x 145 mm 8-9/16 x 5-11/16 in.
Height from the mouning surface 12.3 43467
Mounting Depth 70 mm 2-3/4 in.
Midrange
Width 103mm 4-1/16 in.
Height 71.5 mm 2-13/16 in.
Top Height 40 mm 1-9/16 in.
Cutout Diameter φ62 mm φ2-7/16 in.
Height from the mouning surface 6 mm 1/4 in.
Mounting Depth 34 mm 1-5/16 in.
Weight Gross Weight 4.4kg 155.2 oz
Weight of Woofer Magnet 410g 14.5 oz
Accessory Accessory Bracket for Woofer 2pcs
Spacer for Woofer 2pcs
In-Line Network 2pcs
Speaker Cord for Woofer (0.3m) 2pcs
Tapping Screw(φ4x16mm) for Woofer 8pcs
Cushion for Bracket/Woofer 1set
Cushion for Bracket① 1set
Cushion for Bracket② 2pcs
Cushion(15mm) for Woofer 1set
Cushion for 2.75inch Midrange 1set
Tapping Screw(φ4xL25mm) for Woofer 8pcs
