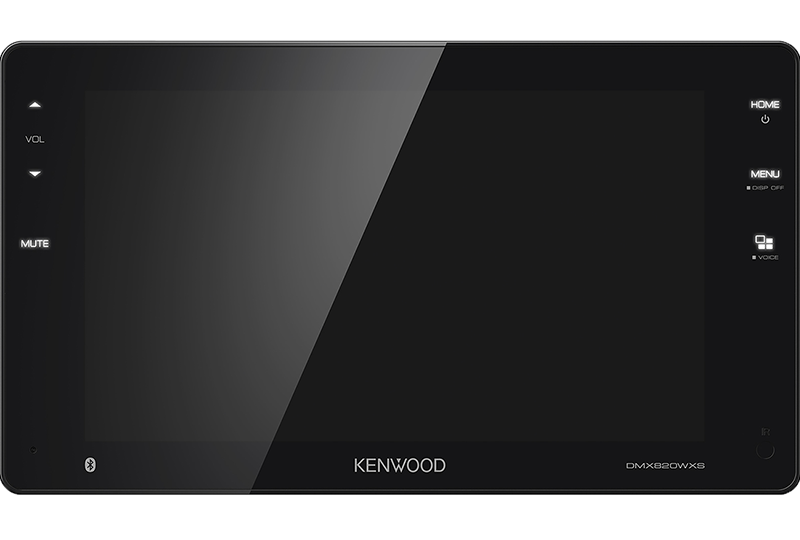

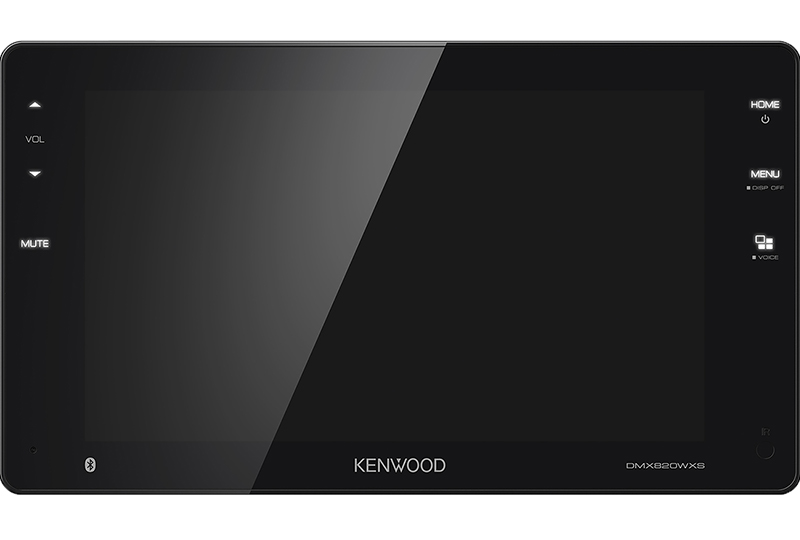

DMX820WXSDigital Media Receiver
with 8" WVGA Display
(Discontinued)

  • 230mm Fit, suitable for Selected Toyota vehicles

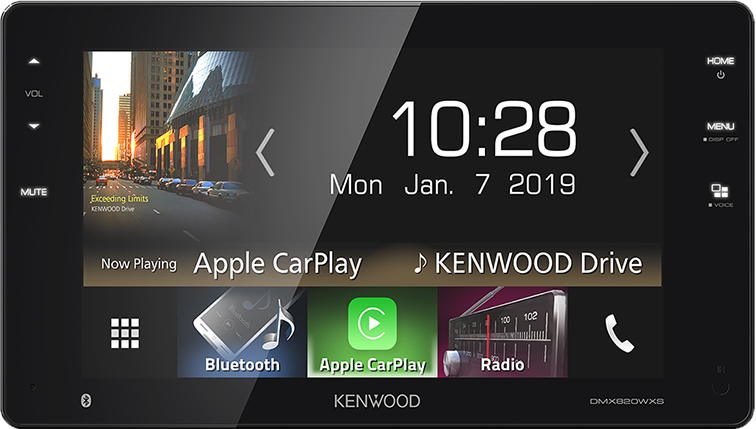

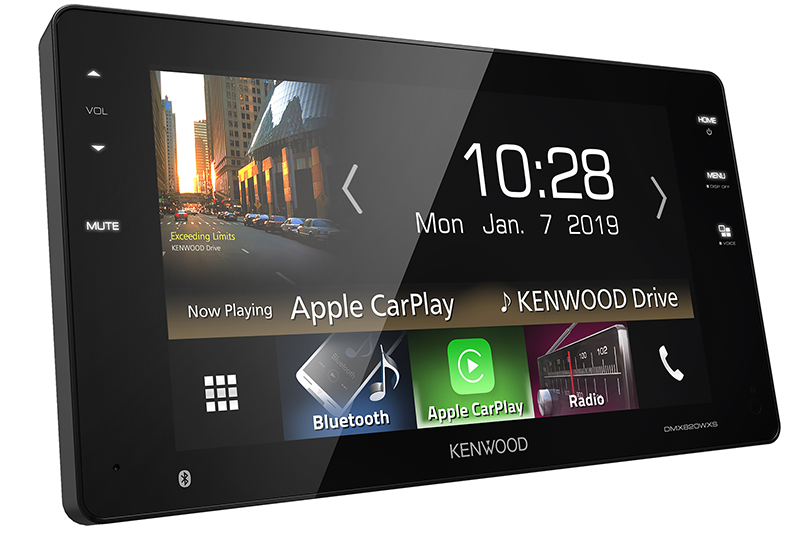

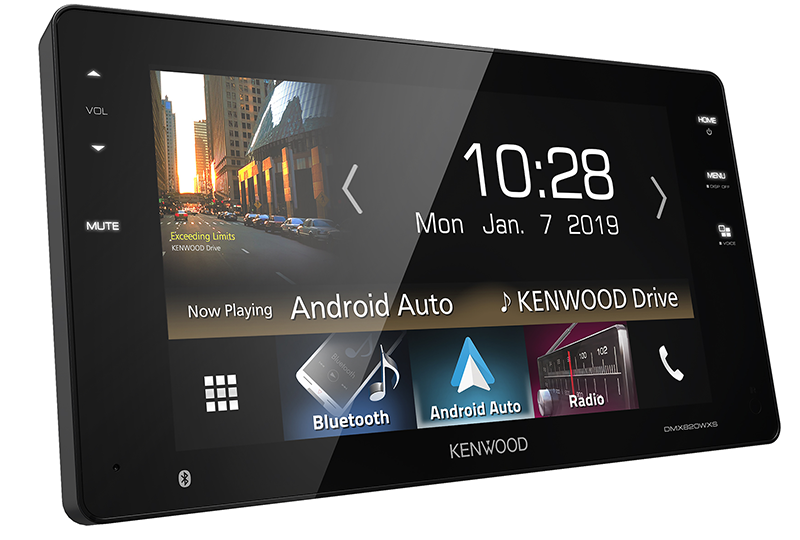

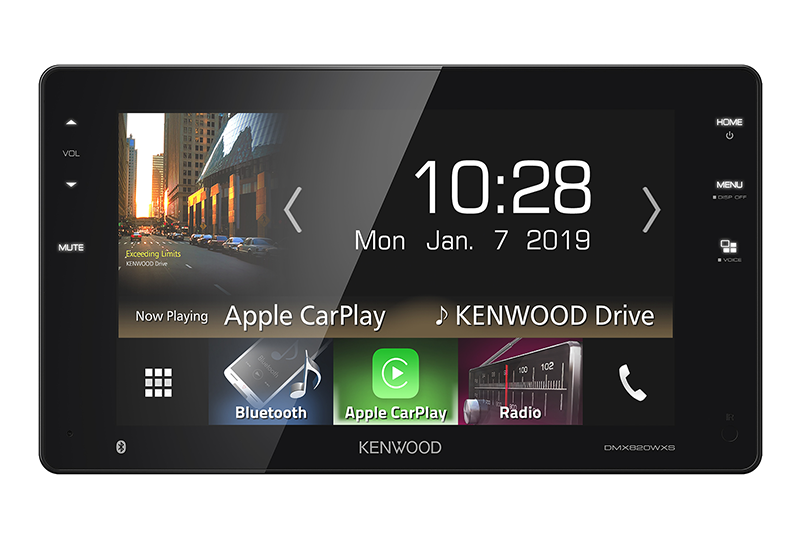

  • Apple CarPlay™ & Android Auto™ Ready

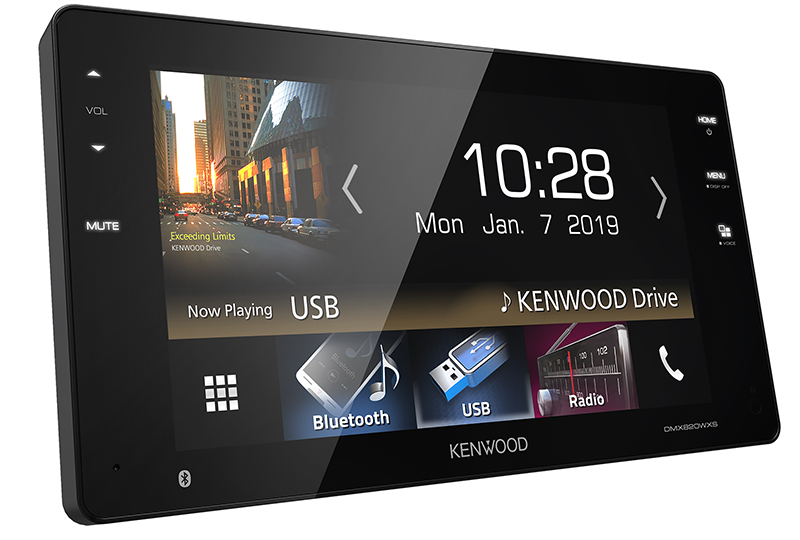

  • USB Mirroring Ready

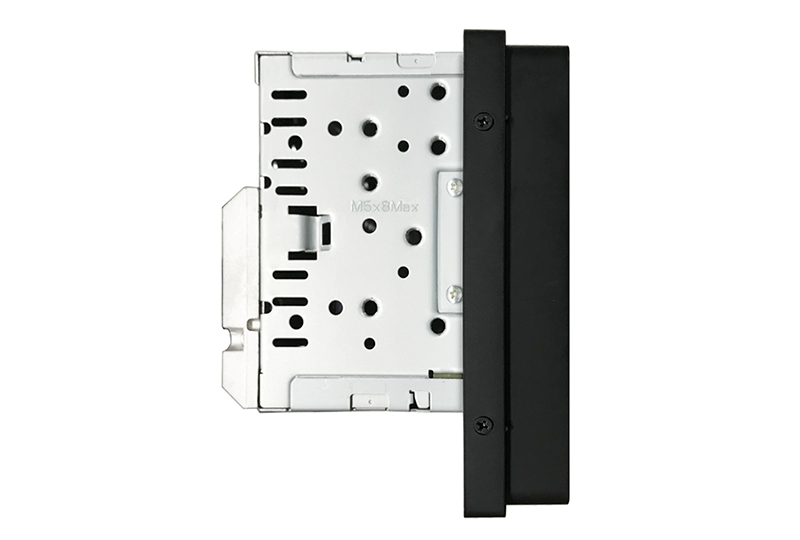

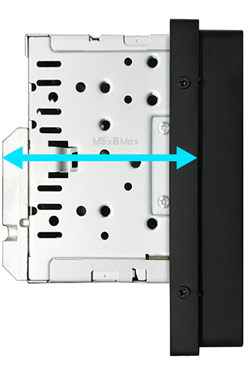

  • Short Chassis
  • Built-in Bluetooth
  • 13 Band EQ & Digital Time Alignment
  • 2 Preouts 4V & Subwoofer Out
  • 4.0V 3 Preouts

Smartphone Connectivity

By connecting your smartphone and receiver wirelessly, your driving time will be more fun and convenient.

Learn More

Learn More

The Best Audio Experiences

Sound quality enthusiasts will love the playback support of various types of music formats, including compatibility with FLAC files. Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.

Learn More

Learn More

Safe Driving

Keeping you safe on the road ahead is our top priority.

Learn More

Learn More

Additional Features

Learn about exciting product features and highlights.

Learn More

Learn More

KENWOOD Car Electronics System

Authorized KENWOOD Retailers

Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.

Where to Buy

« scroll
Main Unit Monitor Section Picture size 8.0 inches(diagonal) wide
W x H 176.6 X 99.4 mm
Display system TN LCD panel
Drive system TFT active matrix system
Number of pixels 1,152,000
800H x 480V x RGB
Effective pixels 99.99%
Pixel arrangement RGB striped arrangement
Back lighting LED
USB I/F Section USB Standard USB2.0 High Speed
File System FAT 16/32 , NTFS
Maximum Power Supply Current DC5V=1.5A
D/A Converter 24Bit
Audio Decoder MP3 / WMA / AAC / WAV / FLAC
Video Decoder MPEG1/2,MPEG4 / WMV / H.264 / .mkv
Frequency response 192k Sampling 20 - 20,000 Hz
      96k Sampling 20 - 20,000 Hz
      48k Sampling 20 - 20,000 Hz
      44.1k Sampling 20 - 20,000 Hz
Total harmonic distortion 1kHz 0.05
Signal to Noise ratio 88dB
Dynamic range 87dB
Bluetooth Section Technology Bluetooth Ver4.1
Frequency 2.402 – 2.480 GHz
RF Output Power(E.I.R.P.) +4dBm (MAX) Power Class 2
Maximum Communication range Line of sight approx.10m(32.8ft)
Audio Codec SBC / AAC
Multi Profile Support Multi Profile
Profile HFP (V1.6) (Hands Free Profile)
SPP (Serial Port Profile)
A2DP (Advanced Audio Distribution Profile)
AVRCP (V1.5) (Audio/Video Remote Control Profile)
PBAP (Phonebook Access Profile)
DSP Section Graphics equalizer
BAND 13 Band
frequency (Hz) (BAND1-7,1-13) 62.5/ 100/ 160/ 250/ 400/ 630/ 1k/ 1.6k/ 2.5k/ 4k/ 6.3k 10k/ 16k Hz
Gain -09 to +09 (-9dB to +9dB)
2Way X'Over
HIGH PASS FILTER frequency Through/ 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250 Hz
SLOPE -6/ -12/ -18/ -24 dB/Oct.
Gain -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB
LOW PASS FILTER frequency 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250 Hz/ Through
SLOPE -6/ -12/ -18/ -24 dB/Oct.
Gain -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB
Position
Front / Rear /Subwoofer Delay 0 to 6.1m (0.01m Step)
Gain -8 to 0dB
Subwoofer Level -40 to +6dB
FM Frequency Range 87.5 - 108.0 MHz
(Frequency step) (50kHz)
Usable sensitivity 13.2dBf
S/N:30dB 1.3μV/75 Ohms
Quieting sensitivity 19.2dBf
DIN S/N 46dB 2.5μV/75 Ohms
Frequency response 30Hz - 15kHz
(±3.0dB) 70dB (MONO)
S/N (dB)
Selectivity Over 80 dB(±400 kHz)
Stereo separation 37dB (1kHz)
AM Frequency Range 531kHz - 1602kHz
(Frequency step) (9kHz)
Usable sensitivity 44.7μV(33.4dBμ)
Video Color system of external video input NTSC/ PAL
External video input level (RCA jacks) 1Vp-p / 75 Ohms
External audio max input level (RCA jacks) 2V / 25k Ohms
Video Output level (RCA jacks) 1Vp-p / 75 Ohms
Audio Maximum Power Output (Front&Rear) 50Wx4
Full Bandwidth Power 21Wx4
(at less than 1%THD)
Output frequency band 20 - 20,000Hz
Preout level (V) 4.0V / 10k Ohms
Preout impedance (Ω) 1.3k Ohms
Speaker Impedance (Ω) 4-8 Ohms
General General Operating voltage 12V DC Car Battery
Installation Dimensions WxHxD 178 x 100 x 84 (mm)
Weight Main unit 1.4kg
