KFC-M1634A

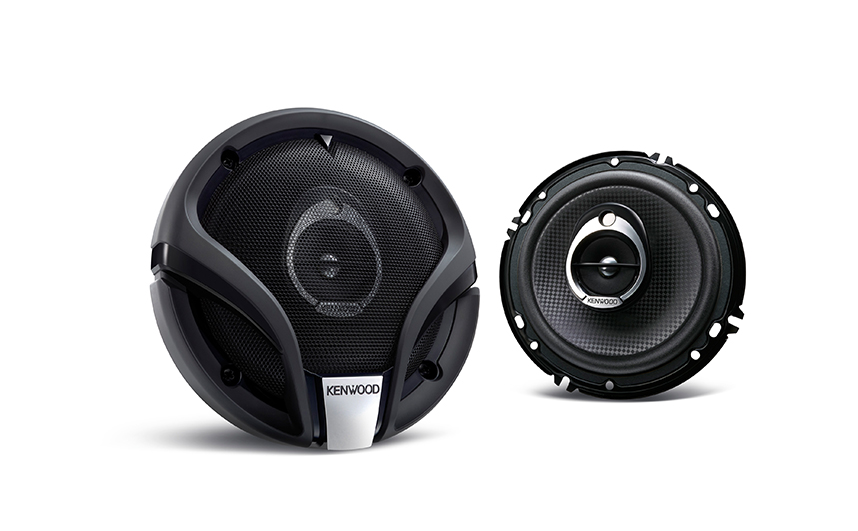

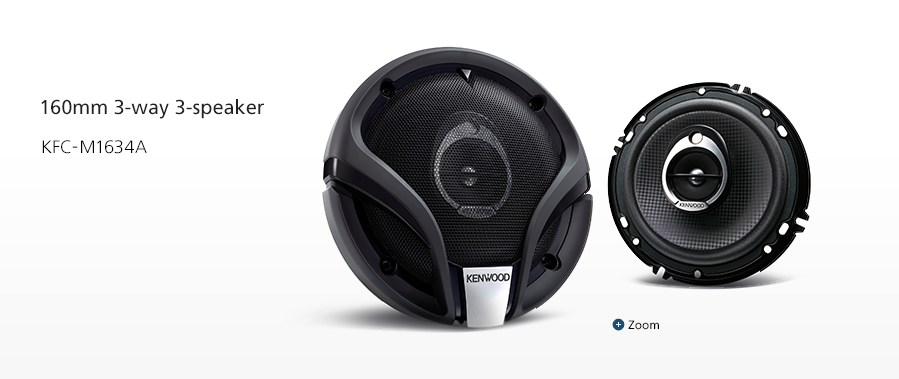

160mm 3-way 3-speaker KFC-M1634A

What's the meaning of the “A” in the M series speakers?

These speakers are equipped with a "5 degree slanted" mid-range speaker and a tweeter which we call it as "Angled Direct Sound" (so we put "A" in the model name) to direct mid-high range frequencies towards passengers’ ears and deliver clearer, more directional sound with less loss.

Peak Input Power

270W

Rated Input Power

60W (CEA Spec.)

Woofer Features

160mm Injection P.P. cone with Square-Array Pattern Diaphragm

Midrange Features

40mm Water Resistant Paper Cone

Tweeter Features

12mm Ceramic

Specifications

Sensitivity: 88dB at 1m
Frequency Response: 65-22k Hz
Impedance: 4 ohms
Size (WHD): 157.7mm x 157.7mm x 70.7mm (w/o Grille)
Mounting Depth: 45.5mm
Gross Weight: 1,900g
Magnet Weight: 220g
