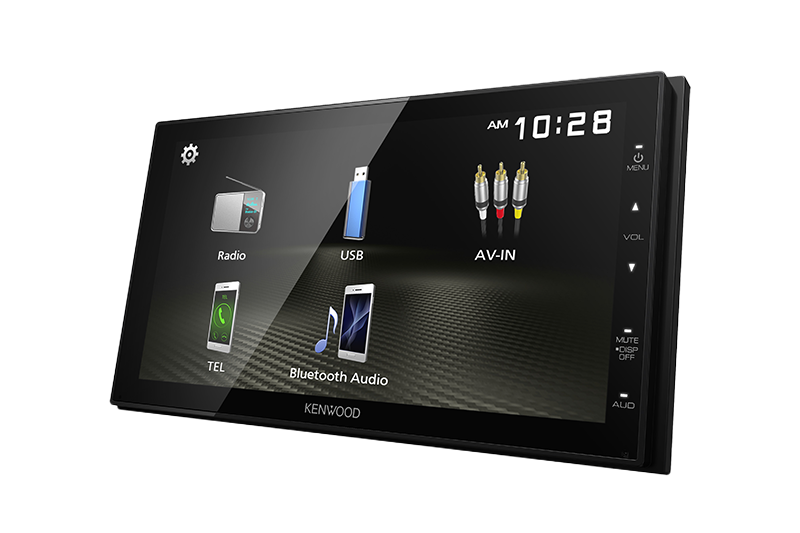

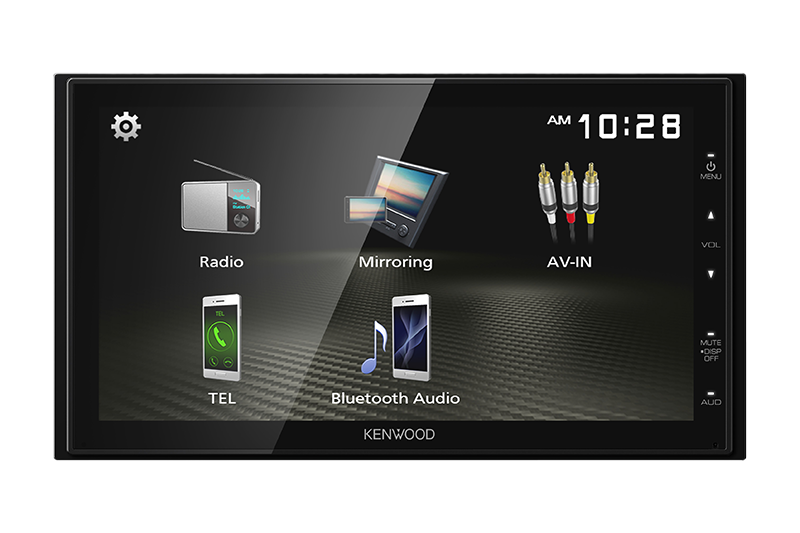

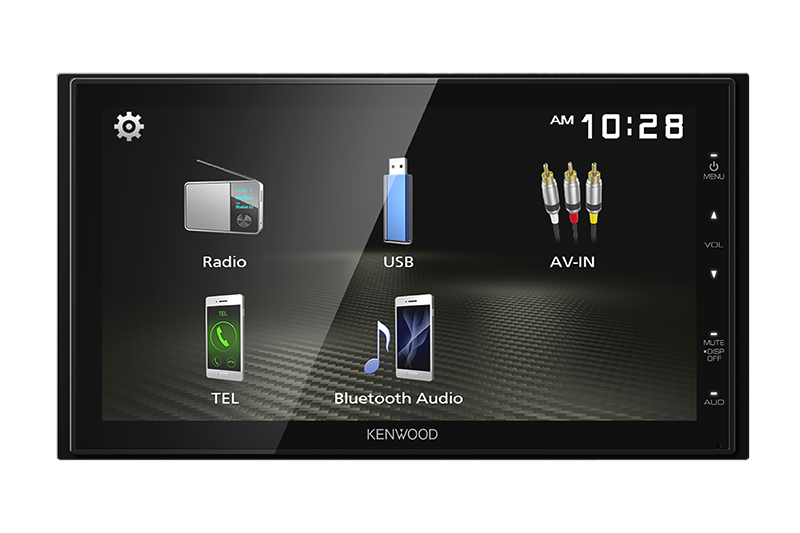

DMX1029BTMonitor with Receiver
6.8" Digital Multimedia Receiver

  • 6.8" WVGA Capacitive Display
  • USB Mirroring for Android
  • Dash-Cam Linkage
  • Built-in Bluetooth®
  • Short Chassis
  • 13 Band EQ & Digital Time Alignment
  • 2 Preouts 2V with Subwoofer out

Smartphone Connectivity

True Mirroring via USB,
2-Way Touch Control for Android

Allows you to display and control your Android smartphone on the screen of the receiver. You can enjoy your favorite apps on a large display and with impressive sound quality.

  • Before starting, just install the free app “Mirroring OB for KENWOOD” on your smartphone and connect it to KENWOOD receiver via a USB cable and Bluetooth.

*Click here to learn more.

Streaming Music

Listen to popular music applications and music stored on your device with basic audio controls.

The Best Audio Experience

Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment

Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.

Playable Video & Audio Files

You can play back from USB devices audio and video files compressed in various formats.

Safe Driving

Rear View Camera Input with Parking Guidelines

An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.

Dash Camera Linkage

DMX1029BT can be connected with the optional DRV-MN1025 dashcam (front & rear cameras). Recorded videos can be displayed and operated from the large touchscreen of the head unit.

Direct Control on DMX1029BT

Complete and direct control from DMX1029BT.Select Front / Rear / Front + Rear view to show on display and press touch screen to take picture or start movie recording.

Additional Features

Convenient and Easy-to-Use Capacitive Touch Panel

Provides a high contrast ratio, crystal clear display and vivid text.

Short Chassis Design

Only 75mm of depth for more flexible installation.

Direct OEM Steering Remote Control

The receivers can be installed in most Japanese and Korean vehicles easily.

Remote Control (Optional)

This receiver unit can be operated using the optional remote control KCA-RCDV340.

Authorized KENWOOD Retailers

Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.

Where to Buy

KENWOOD Car Entertainment System

« scroll
Main Unit Monitor Section Picture size 6.75 inches (diagonal) wide
Display system TN LCD panel
Drive system TFT active matrix system
Number of pixels 1,152,000
800H x 480V x RGB
Effective pixels 99.99%
Pixel arrangement RGB striped arrangement
Back lighting LED
USB I/F Section USB Standard USB2.0 High Speed
Connector Type-A
File System FAT 16 / 32 / exFAT / NTFS
Maximum Power Supply Current DC5V(DC logo) 1.5A
D/A Converter 24 Bit
Audio Decoder MP3/ WMA/ WAV/ AAC/ FLAC
Video Decoder MPEG1/ MPEG2/ MPEG4/ H.264/ MKV
Frequency response 192k Sampling 20 - 20,000 Hz
96k Sampling 20 - 20,000 Hz
48k Sampling 20 - 20,000 Hz
44.1k Sampling 20 - 20,000 Hz
Bluetooth Section Bluetooth Specification Version Bluetooth V5.0
Frequency 2.402 – 2.480 GHz
RF Output Power (E.I.R.P.) +8 dBm (AVE), Power Class 1
Maximum Communication range Line of sight approx.10m
Audio Codec SBC / AAC
Multi Profile Support Multi Profile
Profile HFP(Hands Free Profile) 1.6
SPP(Serial Port Profile)
A2DP(Advanced Audio Distribution Profile) 1.2
AVRCP(Audio/Video Remote Control Profile) 1.5
PBAP(Phonebook Access Profile) 1.2
FM Frequency range (Frequency step) 87.5 - 108 MHz (50kHz)
Usable sensitivity 16.2dBf
S/N:30dB 1.8μV/75Ω
Frequency response(±3.0dB) 30Hz - 14kHz
S/N Ratio(dB) 50dB (MONO)
Stereo separation 35 dB (1 kHz)
AM Frequency range (Frequency step) 531 - 1611 kHz (9kHz)
Usable sensitivity 99μV (40 dBμ)
Video Color system of external video input NTSC/ PAL
External video input level (RCA) 1 Vp-p / 75 Ω
External video input level (RCA, AV-In) 1 Vp-p / 75 Ω
External audio max input level (RCA, AV-In) 1.5 V / 25 kΩ
Video Output level (RCA) 1 Vp-p / 75 Ω
Audio Maximum Power (Front&Rear) 45Wx4
Full Bandwidth Power (Front&Rear)
(at less than 1%THD)
Output frequency band 20 - 20,000 Hz
Preout level (V) 2 V / 10 kΩ
Preout impedance (Ω) 1.4 kΩ
Speaker Impedance (Ω) 4 - 8 Ω
Equalizer 13 Band
Band Frequency 62.5/ 100/ 160/ 250/ 400/ 630/ 1k/ 1.6k/ 2.5k/ 4k/ 6.3k/ 10k/ 16k Hz
Level -09 - +09 (-9dB - +9dB)
HPF Frequency Through/ 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250 Hz
Slope -6/ -12/ -18/ -24 dB/Oct.
Gain -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB
LPF Frequency 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250 Hz/ Through
Slope -6/ -12/ -18/ -24 dB/Oct.
Gain -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB
General Operating voltage 12V DC car battery
Installation Dimensions W x H x D 182 x 112 x 75 mm
Main Unit Installation size W x H x D(w/o sleeve) 178 x 100 x 75 mm
Weight Main unit 1.1 kg
