Speaker

KFC-PS170C

17cm Component Speaker

KFC-PS170C KFC-PS170C
(1)
(2)
(3)
(4)

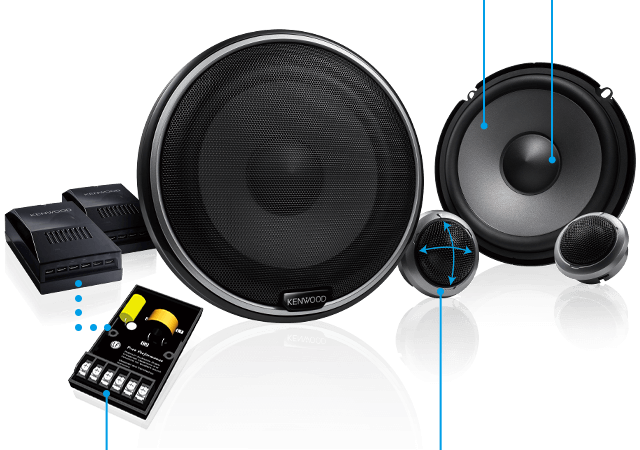

(1) 170mm Wide Etched PP Woofer Cone creates solid bass sound by avoiding deformation of diaphragm

(2) Convex Shape PP+Mica+Carbon Cap enhances mid-range performance.

(3) Audiophile grade External Network Box
using hi-quality crossover film capacitors and inductors Tweeter High Pass Filter : -12dB/oct.

(4) Swivel Type 25mm soft dome Tweeter Able to adjust the direction after installation

Speaker Tech-Spec KFC-PS170C
Peak Input Power 400W
RMS Input Power 80W
Size 17cm
Tweeter Design Soft Dome
Tweeter Magnet Composition Neodymium
Woofer Magnet Composition Ferrite
Nominal Impedance 4ohms
Frequency Response 58Hz - 22kHz
Sensitivity (dB/W at 1m) 86dB
Mounting Depth 56mm

KFC-PS6996EX / 6996 / 6986/ 6976

6 x 9 inch 5Way / 4Way / 3Way Speaker

KFC-PS6996EX / 6986/ 6976

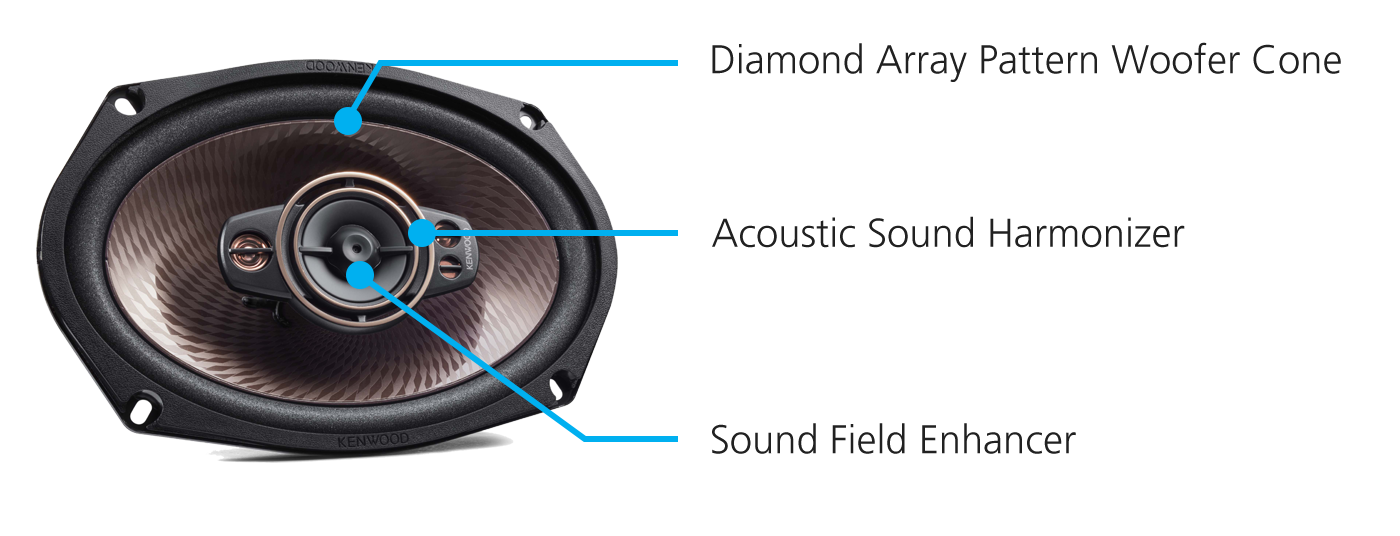

Diamond Array Pattern Woofer Cone

enhances sound and reduces distortion.

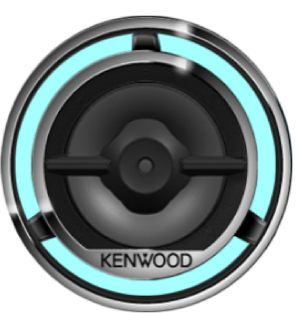

Sound Field Enhancer

The unique shape of the tweeter creates strong frontward sound as well as a wider sound field in 5kHz and upper frequencies.

Acoustic Sound Harmonizer

harmonizes different sounds from the woofer and tweeter and reproduces a natural sound.

Factory Location Fit

The tweeter height is designed as low as possible, and the speaker units can fit within most of the spaces for factory speakers.

1. Black-painted Woofer Yoke Plate

efficiently releases heat inside the magneticcircuit and prevents the temperature of the voice coil from rising, resulting in improved durability.

2. New Shape of Woofer Damper

minimizes mechanical stress and makes the sound response smoother.

Speaker Tech-Spec KFC-PS6996EX KFC-PS6996 KFC-PS6986 KFC-PS6976
Peak Input Power 700W 650W 600W 550W
RMS Input Power 160W 150W 140W 130W
Size 6 x 9 inch 5Way 6 x 9 inch 5Way 6 x 9 inch 4Way 6 x 9 inch 3Way
Tweeter Design Balanced Dome Balanced Dome Balanced Dome Balanced Dome
Tweeter Magnet Composition Ferrite Ferrite Ferrite Ferrite
Woofer Magnet Composition Ferrite Ferrite Ferrite Ferrite
Nominal Impedance 4ohms 4ohms 4ohms 4ohms
Frequency Response 55Hz-22kHz 58Hz–22kHz 60Hz–22kHz 63Hz–22kHz
Sensitivity (dB/W at 1m) 88dB 88dB 88dB 88dB
Mounting Depth 81.5mm 80.5mm 80.5mm 80.5mm

KFC-PS1696 / 1396 / 1096

16cm / 13cm / 10cm 2Way Speaker

KFC-PS1696 / 1396 / 1096
Speaker Tech-Spec KFC-PS1696 KFC-PS1396 KFC-PS1096
Peak Input Power 320W 320W 220W
RMS Input Power 100W 75W 50W
Size 16cm 2Way 13cm 2Way 10cm 2Way
Tweeter Design Balanced Dome Balanced Dome Balanced Dome
Tweeter Magnet Composition Neodynium Neodynium Neodynium
Woofer Magnet Composition Ferrite Ferrite Ferrite
Nominal Impedance 4ohms 4ohms 4ohms
Frequency Response 75Hz-24kHz 80Hz-25kHz 114Hz-25kHz
Sensitivity (dB/W at 1m) 88dB 85dB 85dB
Mounting Depth 48mm 46mm 43.4mm

Subwoofer

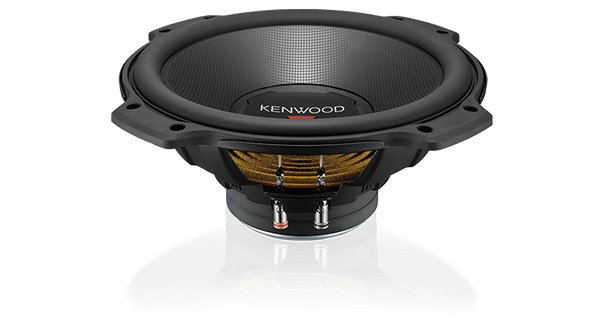

KFC-PS3017W/2517W

30cm / 25cm Subwoofer

KFC-PS3017W/2517W

Durability Enhancement

Heat-resistant Alminum Bobbin provides higher thermal conductivity.

Stress Controlled Spider

Computer-optimized Dumper controls stress and increase mechanical durability.

Subwoofer Tech-Spec KFC-PS3017W KFC-PS2517W
Peak Input Power 2000W 1300W
RMS Input Power 400W 300W
Size 30cm 25cm
Woofer Magnet Composition Ferrite Ferrite
Nominal Impedance 4ohms 4ohms
Frequency Response 29Hz–300Hz 33Hz–300Hz
Sensitivity (dB/W at 1m) 85dB 84dB
Mounting Depth 137mm 124mm
