Hi-Resolution Audio

High-Resolution Audio Certified

With more information to play with, high-resolution audio tends to boast greater detail and texture, you'll hear every song in all its detailed glory – just as the artist intended – for sound that's more engaging, dynamic and lifelike.

More detail, more clarity. KENWOOD understands the true value and potential of High-Resolution Audio, which is why we’ve developed High-Resolution Audio certified products for KENWOOD loyal customers who want to listen music in the best sound quality.

*The product with this logo is conformed to High-Resolution Audio standard defined by Japan Audio Society. This logo is used under license from Japan Audio Society.

Hi-Resolution Audio
Flat Terminal Layout

Cooling Fan allows the amplifier to operate at comfortable temperature levels even under the most stressful conditions.

Flat Terminal Layout
Flat Terminal Layout

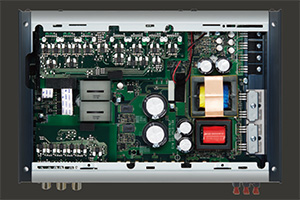

High Density Construction to achieve best sounding and have one of the smallest footprints in this class.

Flat Terminal Layout

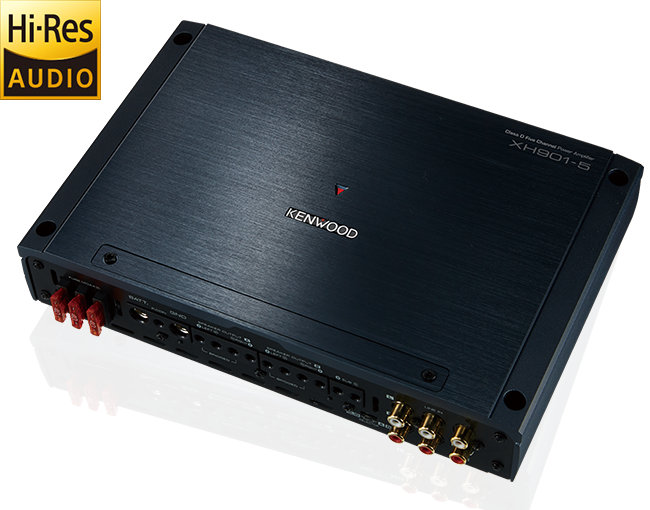

  • XH901-5

    Hi-Resolution Audio Certified
    D-Class 5ch Amplifier

    XH901-5 XH901-5
  • XH401-4

    Hi-Resolution Audio Certified
    D-Class 4ch Amplifier

    XH401-4 XH401-4
Amplifier Tech-Spec XH901-5 XH401-4
Maximum Output Power 1800W 1000W
RMS Power at 4ohms 60W x 4ch + 400W 75W x 4ch
RMS Power at 2ohms 75W x 4ch + 600W 100W x 4ch
Bridged at 4ohms 150W x 2ch + 400W 200W x 2ch
Frequency Response 20Hz - 50kHz 20Hz - 50kHz
High Pass Filter 50Hz - 200Hz, -12dB/oct 50Hz - 200Hz, -12dB/oct (Low Range)
2.5kHz - 10kHz, -12dB/oct (High Range)
Low Pass Filter 50Hz - 200Hz, -24dB/oct 50Hz - 200Hz, -12dB/oct (Low Range)
2.5kHz - 10kHz, -12dB/oct (High Range)
Speaker Level Input Yes Yes
Signal to Noise Ratio 100dB 100dB
Dimensions W x D x H (mm) 260 x 169 x 51 220 x 169 x 35



Hi-Resolution Audio Certified
17cm Component Speaker

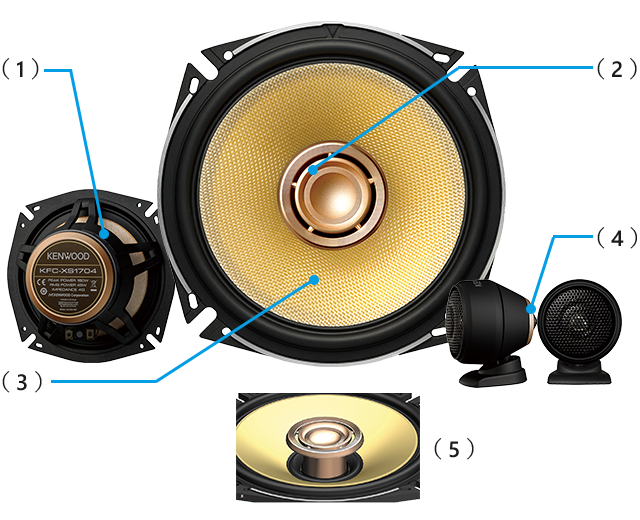

KFC-XS1703 Hi-Resolution Audio

(1) 170mm Glass Fiber Cone

(2) Harmonic Equalizer

(3) Rigid Aluminum Die-cast Frame reduces needless vibration

(4) Neodymium Magnet with Cavity Architecture enhances mid-bass performance

(5) 25mm Soft Dome Type Tweeter Swivel Application

  • Optimized magnetic circuit

    Optimized magnetic circuit
    with Aluminum short-ring

    Optimized magnetic circuit
  • High Density Square Voice Coil

    High Density Square Voice Coil

    High Density Square Voice Coil
  • Hi-Grade Film Condenser

    Hi-Grade Film Condenser
    improves higher frequency performance

    Hi-Grade Film Condenser
Speaker Tech-Spec KFC-XS1703
Peak Input Power 180W
RMS Input Power 45W
Size 17cm
Tweeter Design Soft Dome
Tweeter Magnet Composition Neodymium
Woofer Magnet Composition Neodymium
Nominal Impedance 4ohms
Frequency Response 25Hz – 48kHz (-10dB)
Sensitivity (dB/W at 1m) 83dB
Mounting Depth 57.7mm
