Volume : Input sensitivity control knob
ACTIVE EQ : Equalizer selector switch
Frequency : Cut-off freqeuncy control knob
Phase : Phase select switch

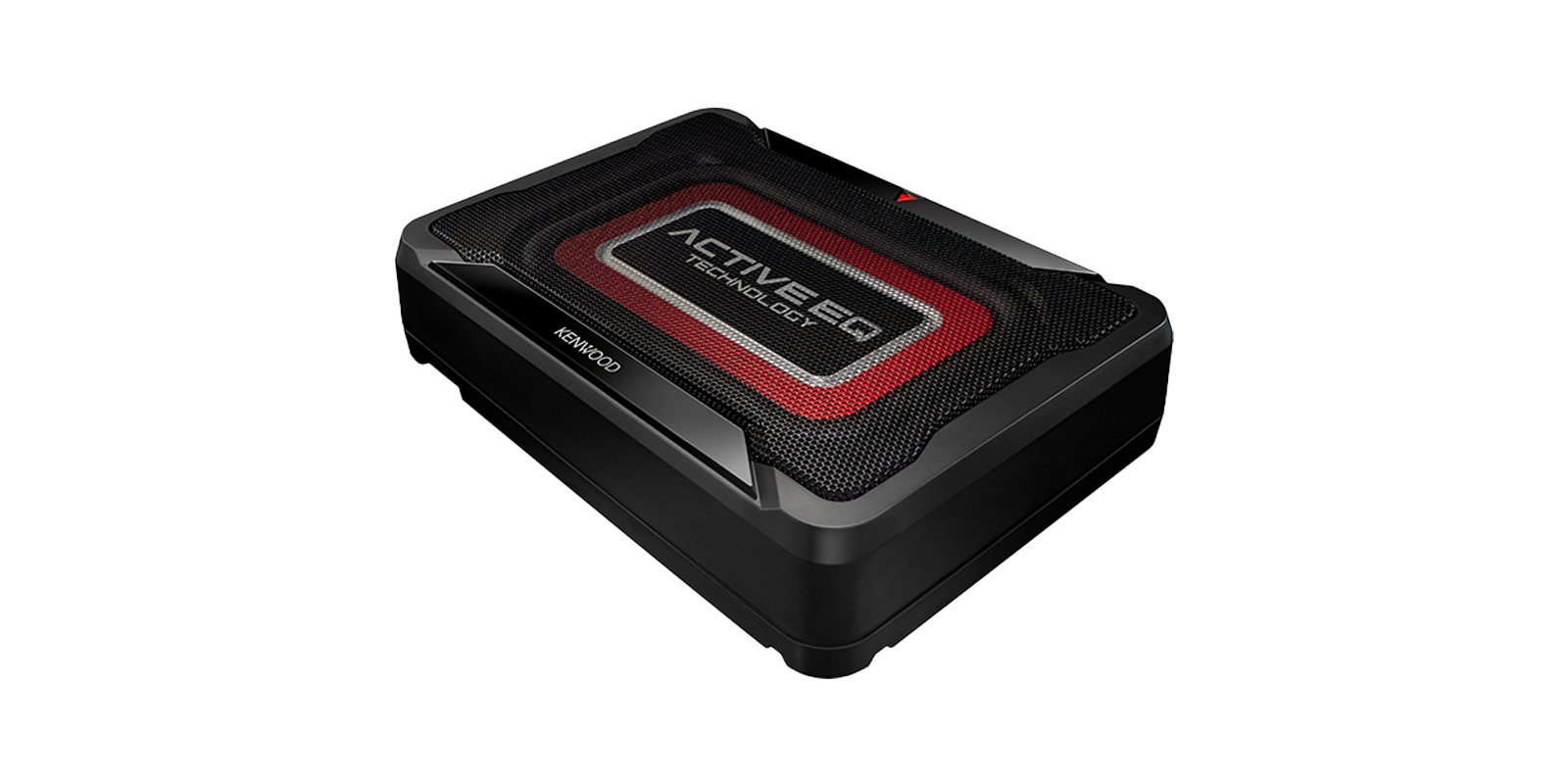

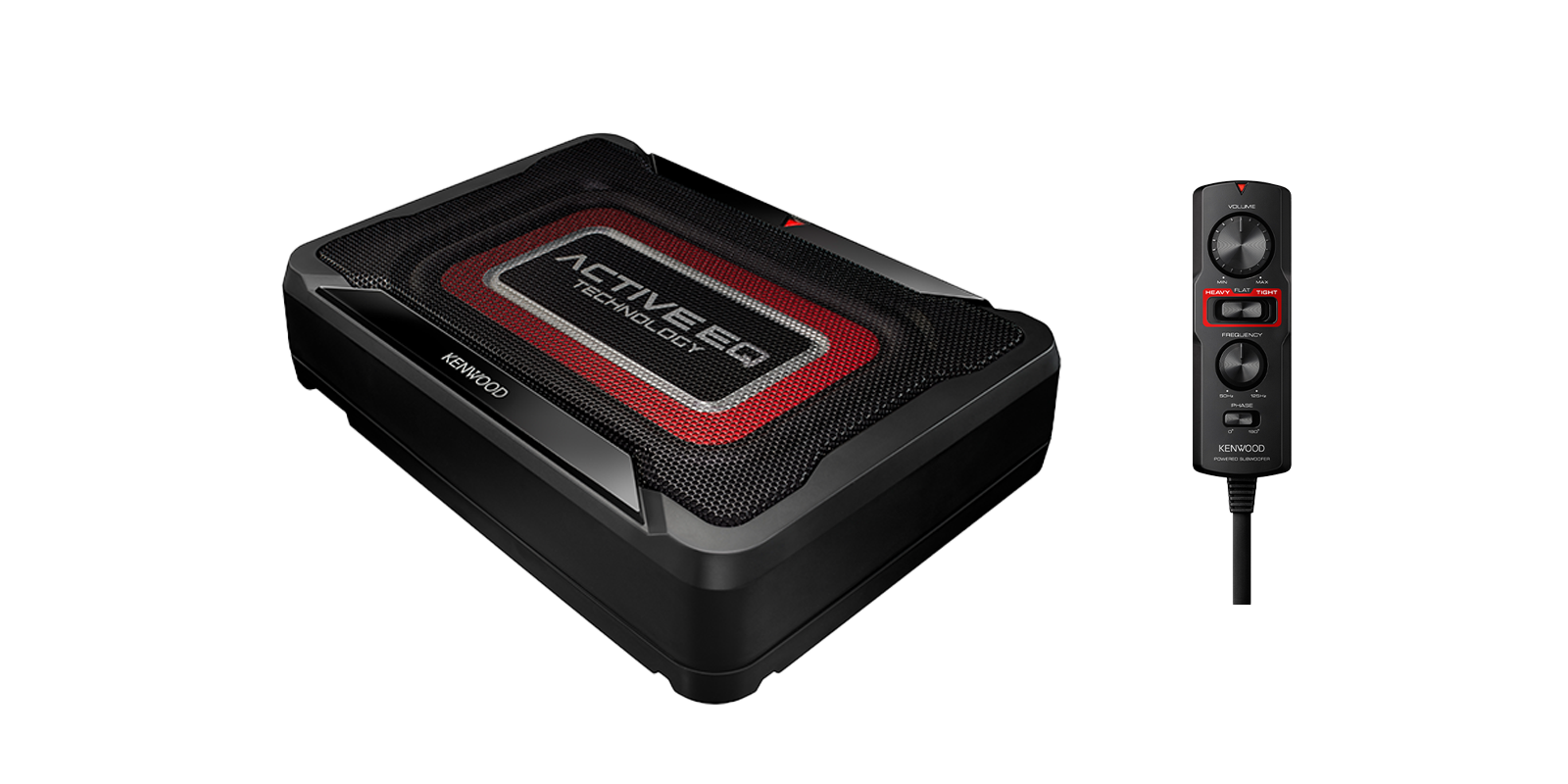

| Tech Spec | KSC-PSW7EQ |
|---|---|
| Woofer Size | 200mm x 130mm |
| Max Power (W) | 160W |
| Current Consumption | 5.9A |
| Sensitivity (dB at 1m) | 89dB |
| Frequency Response (Hz) | 40Hz - 200Hz (-15dB) |
| Speaker Level Input | Yes (Speaker Level Input) |
| Signal Sensing Turn-on | Yes (Speaker Level or RCA) |
| Dimension (W x H x D) | 280mm x 70mm x 200mm |
| Weight | 2.6kg |
| Remote Control Cable Length | 5m |
20cm All in One Powered Subwoofer
(1) Volume Control
(2) Frequency Control
(3) Phase Control
(4) 20cm Woofer Cone
(5) 35cm
(6) 24cm
(7) 7.5cm
| Powered Sub. Tech-Spec | KSC-PSW8 |
|---|---|
| Maximum Output Power | 250W |
| RMS Power | 150W |
| Size | 20cm |
| Low Pass Filter | 50Hz - 125Hz, -12dB/oct |
| Gain Control | Yes (On Remote) |
| Phase Control | 0°/180°(On Remote) |
| Speaker Level Input | Yes |
| Signal Sensing Turn On | Yes |
| Dimensions W x D x H (mm) | 350 x 240 x 75 |
| RCA Input | Yes |

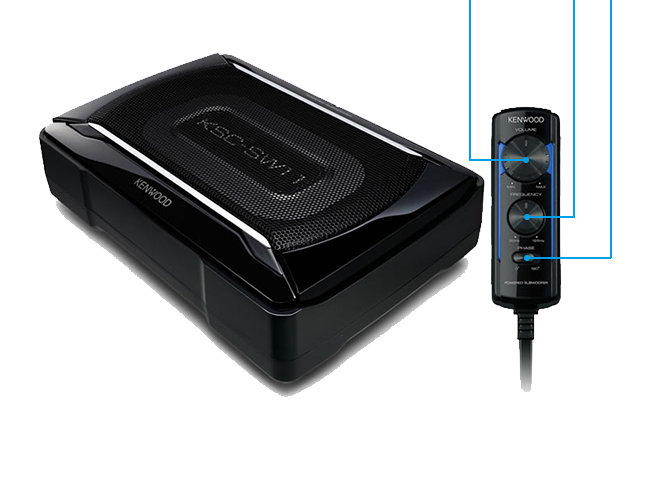

(1) Volume Control
(2) Frequency Control
(3) Phase Control
| Powered Sub. Tech-Spec | KSC-SW11 |
|---|---|
| Maximum Output Power | 150W |
| Speaker Size | 200mm x 120mm |
| Low Pass Filter | 50Hz - 125Hz |
| Gain Control | Yes (On Remote) |
| Phase Control | 0°/180°(On Remote) |
| Speaker Level Input | Yes |
| RCA Input | Yes |
| Dimensions W x D x H (mm) | 280 x 190 x 70 |
20cm Oversized Subwoofer in Ported Enclosure
| Powered Sub. Tech-Spec | PA-W801B |
|---|---|
| Maximum Output Power | 400W |
| RMS Power | 200W |
| Woofer Size | 20cm |
| Phase Control | 0°/180° |
| Sensitivity (dB at 1m) | 80dB |
| Frequency Response (Hz) | 32-250Hz |
| Dimension W x D x H (mm) | 450 x 300 x 150 |
| Weight | 8.4kg |
