KDC-360UI
KDC-360UI

KDC-360UIUSB / CD 收放机

  • 255段 2行文本显示

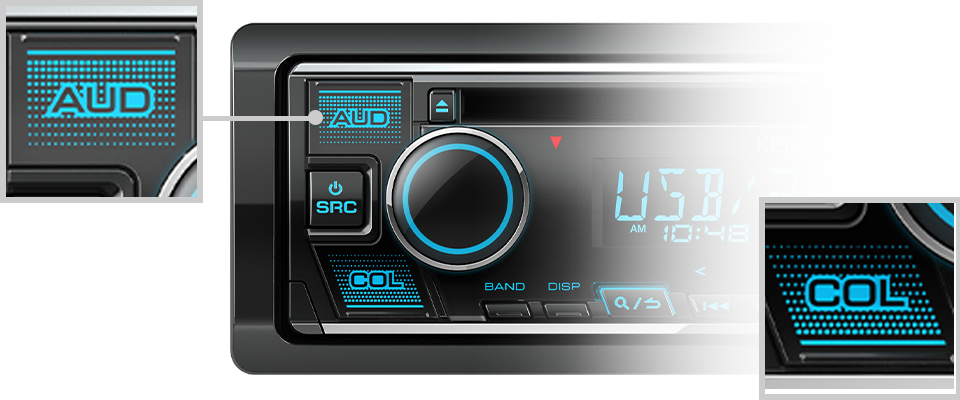

  • 直接音频控制键
  • 多彩背光
  • 13频段均衡器和DTA

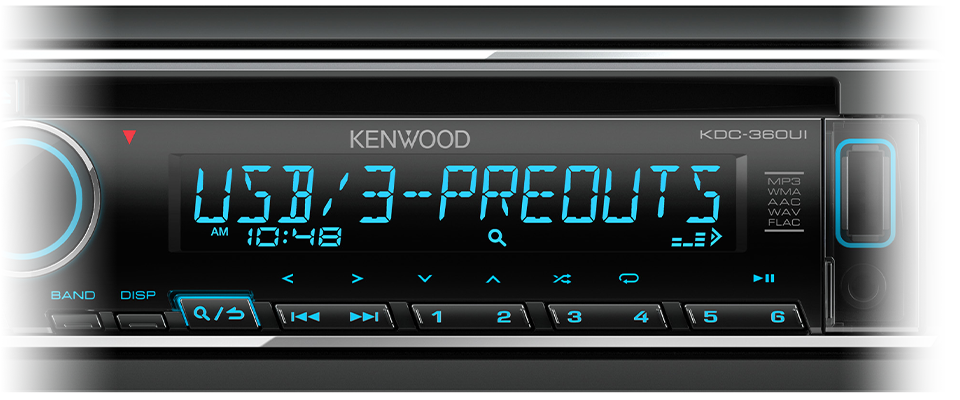

  • 前置USB和AUX IN

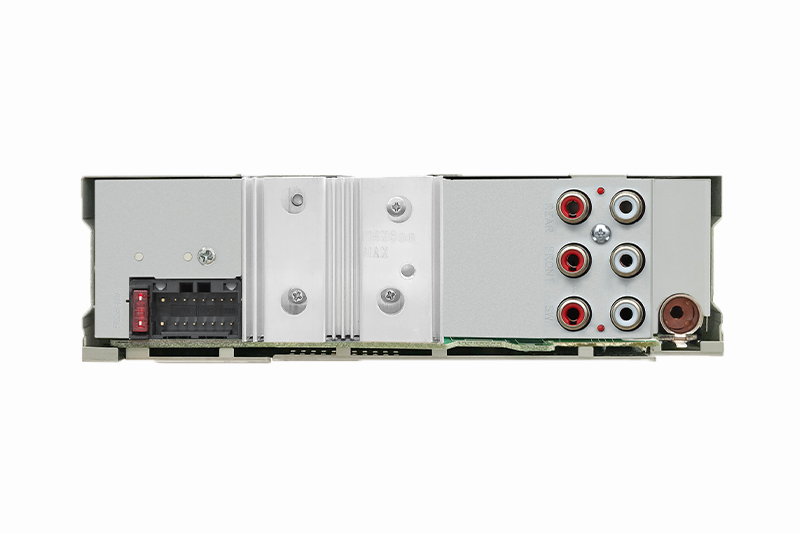

  • 3组 5.0V RCA输出

良好的音频体验

支持包括FLAC文件等音乐爱好者喜欢的高清音乐格式的兼容性。 内置13段均衡器和数字时间对准功能,可简单的通过触摸屏定制个性化声音。

了解更多

附加的功能

了解令人兴奋的产品功能和亮点。

了解更多

激光唱机 Yes
内置蓝牙 /
USB端子 x 1
音频解码器 FLAC / WAV / AAC / MP3 / WMA
均衡器 / 数字时间校准 / 3向分频 13 Band / Yes / Yes
音频预输出 5.0V / 3Preouts
遥控器 Included

建伍车载电子系统

Authorized KENWOOD Retailers

Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.

Where to Buy

« scroll
KDC-360UI
FM Frequency Range(MHz) 87.5MHz to 108.0MHz
(Frequency step) (50kHz)
Usable Sensitivity 8.2dBf
S/N:30dB (0.71μV/75Ω)
Quieting Sensitivity 17.2dBf
DIN S/N:46dB (2.0μV/75Ω)
Frequency Response(±3.0dB) 30Hz to 15kHz
S/N(dB) 64.0dB(MONO)
Stereo Separation 40dB(1kHz)
MW
(AM)
Frequency Range Band 1(MW) / 531kHz to 1602kHz(9kHz)
Band 2(SW1) / 2940kHz to 7735kHz(5kHz)
(Frequency step) Band 3(SW2) / 9500kHz to 10135kHz / 11580kHz to 18135kHz (5kHz)
Channel Space Selection Band 1 / 9kHz
Band 2/3 / 5kHz
Usable Sensitivity 29.0dBμ(28.2μV) : MW
S/N:20dB 30dBμ (32μV) : SW
CD Laser Diode GaAlAs
Digital Filter(D/A) 8 Times OverSampling
Spindle Speed 500 to 200rpm (CLV)
Wow & Flutter Below Measurable Limit
Frequency Response 20Hz to 20kHz(±1dB)
Total Harmonic Distortion 0.02%(1kHz)
S/N Ratio (dB) 94dB(1kHz)
Dynamic Range 91dB
Channel Separation 86dB
MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
WMA Decode Compliant with WINDOWS MEDIA AUDIO
AAC Decode AAC-LC ".aac" files
WAV Decode -
Preout Level(mV)/Load -Unbalanced 5000mV/10kΩ
Preout Impedance(Ω) =<600Ω
Speaker Impedance(Ω) 4 to 8Ω
USB I/F USB USB 1.1 / 2.0 High speed
File System FAT12 / 16 / 32
Maximum Supply current DC5V(DC logo) 1.5A
Frequency Response 20Hz to 20kHz(±1dB)
S/N Ratio (dB) 98dB(1kHz)
Dynamic Range 94dB
Channel Separation 91dB
MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
WMA Decode Compliant with Windows Media Audio
AAC Decode AAC-LC ".aac", "m4a" files
WAV Decode Linear-PCM
FLAC Decode FLAC file (Up to 24bit/96kHz)
AUX
Input
Frequency Response 20Hz to 20kHz ±3dB
Input Maximum Voltage 1000mV
Input Impedance 30kΩ
AMP PWR(MAX) 50Wx4
Full Bandwidth Power(at less than 1%THD) 22Wx4
TONE Band1 62.5Hz ±9dB
Band2 100Hz ±9dB
Band3 160Hz ±9dB
Band4 250Hz ±9dB
Band5 400Hz ±9dB
Band6 630Hz ±9dB
Band7 1kHz ±9dB
Band8 1.6kHz ±9dB
Band9 2.5kHz ±9dB
Band10 4kHz ±9dB
Band11 6.3kHz ±9dB
Band12 10kHz ±9dB
Band13 16kHz ±9dB
GENE Operating voltage 12V DC car battery
Installation Size (W) 182mm
(H) 53mm
(D) 155.5mm
Net Weight 1.2(kg)
(Trim plate and Mounting sleeve: Included)
