DPX-5300BT
DPX-5300BT

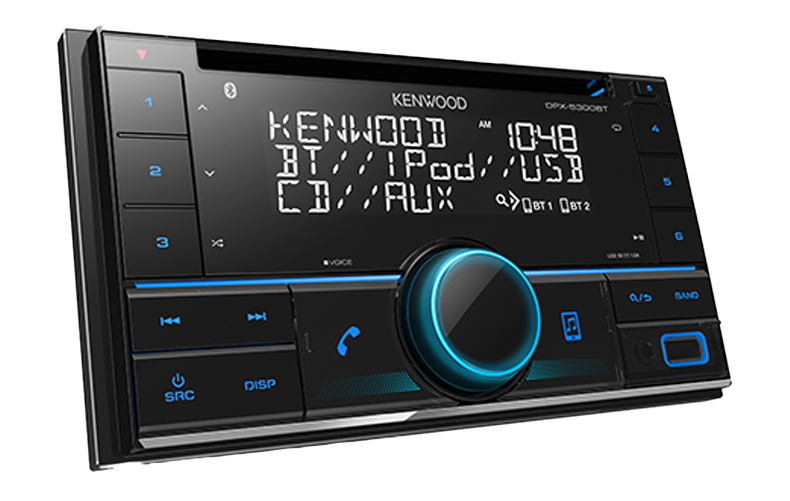

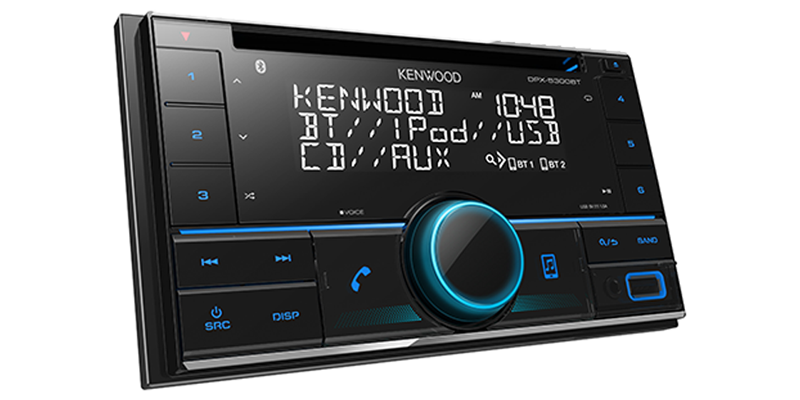

DPX-5300BT2DIN USB/CD 收放机

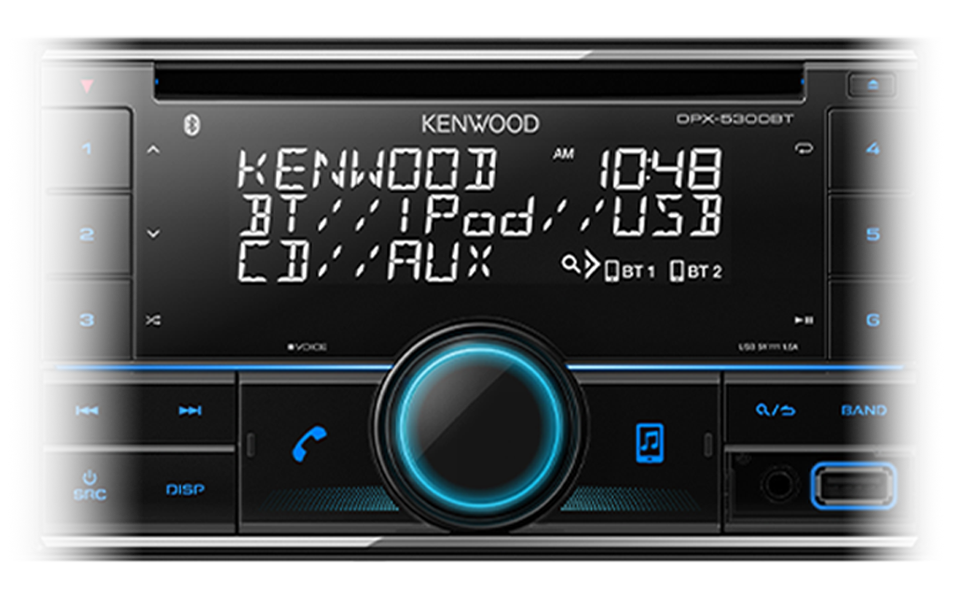

  • 420段3行文本显示
  • 内置蓝牙
  • 直接蓝牙控制键

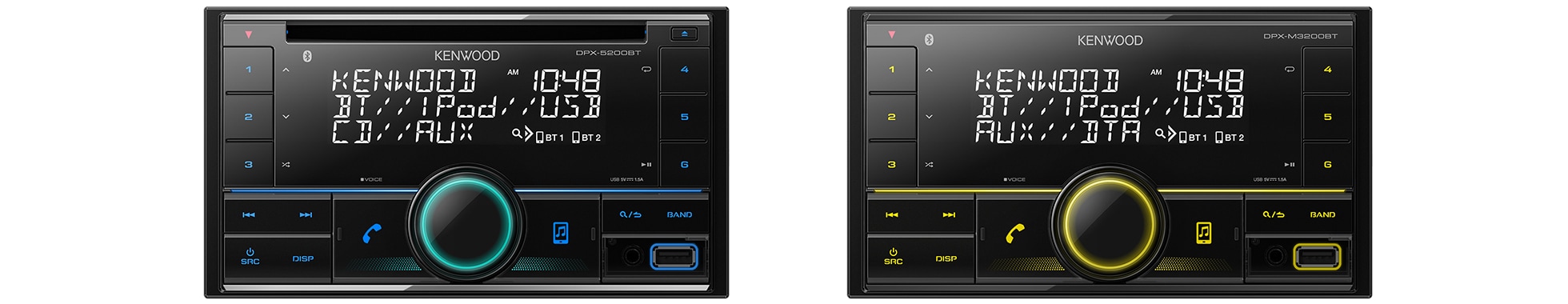

  • 多彩背光
  • 13频段均衡器和DTA

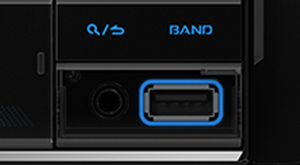

  • 前置USB和AUX IN
  • 3组 3.5V RCA输出

智能手机连接

通过将智能手机和接收机进行无线连接, 可让您在驾驶时享受更多乐趣和便捷。

了解更多

良好的音频体验

支持包括FLAC文件等音乐爱好者喜欢的高清音乐格式的兼容性。 内置13段均衡器和数字时间对准功能,可简单的通过触摸屏定制个性化声音。

了解更多

附加的功能

了解令人兴奋的产品功能和亮点。

了解更多

激光唱机 Yes
按键照明 / 音量旋钮照明 / LCD - LED 背光 //
内置蓝牙 2-Phone Hands Free / Music Mix / KENWOOD Remote App
USB端子 x 1
音频解码器 FLAC / WAV / AAC / MP3 / WMA
均衡器 / 数字时间校准 / 3向分频 13 Band / Yes / Yes

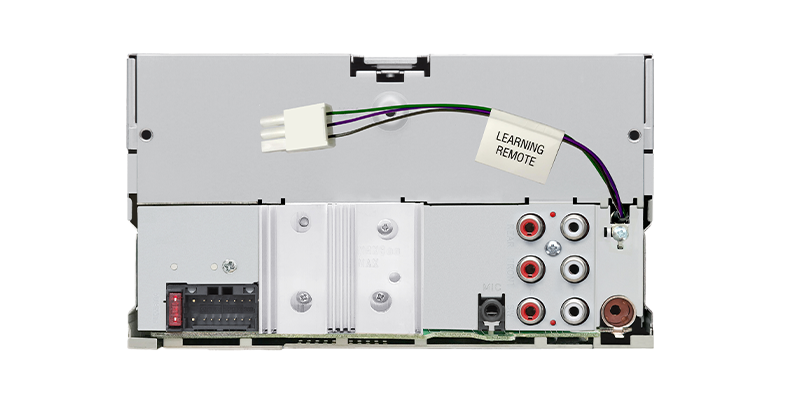

音频预输出 3.5V / 3Preouts
遥控器 Included

Authorized KENWOOD Retailers

Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.

Where to Buy

« scroll
FM Frequency Range(MHz) 87.5MHz to 108.0MHz
(50kHz)
(Frequency step)
Usable Sensitivity 8.2dBf
S/N:30dB (0.71μV/75Ω)
Quieting Sensitivity 17.2dBf
DIN S/N:46dB (2.0μV/75Ω)
Frequency Response 30Hz to 15kHz
(±3.0dB)
S/N(dB) 64.0dB(MONO)
Stereo Separation 40dB(1kHz)
MW(AM) Frequency Range Band 1(MW) / 531kHz to 1602kHz(9kHz)
Band 2(SW1) / 2940kHz to 7735kHz(5kHz)
(Frequency step) Band 3(SW2) / 9500kHz to 10135kHz / 11580kHz to 18135kHz (5kHz)
Channel Space Selection Band 1 / 9kHz
Band 2/3 / 5kHz
Usable Sensitivity 29.0dBμ(28.2μV) : MW
S/N:20dB 30dBμ (32μV) : SW
CD Laser Diode GaAlAs
Digital Filter(D/A) 8 Times OverSampling
Spindle Speed 500 to 200rpm (CLV)
Wow & Flutter Below Measurable Limit
Frequency Response 20Hz to 20kHz(±1dB)
Total Harmonic Distortion 0.01%(1kHz)
S/N Ratio (dB) 92dB(1kHz)
Dynamic Range 90dB
Channel Separation 86dB
MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
WMA Decode Compliant with WINDOWS MEDIA AUDIO
AAC Decode AAC-LC ".aac" files
WAV Decode -
Preout Level(mV)/Load -Unbalanced 3500mV/10kΩ
Preout Impedance(Ω) =<600Ω
Speaker Impedance(Ω) 4 to 8Ω
USB I/F USB USB 1.1 / 2.0 High speed
File System FAT12 / 16 / 32
Maximum Supply current DC5V(DC logo) 1.5A
Frequency Response 20Hz to 20kHz(±1dB)
S/N Ratio (dB) 99dB(1kHz)
Dynamic Range 93dB
Channel Separation 91dB
MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
WMA Decode Compliant with Windows Media Audio
AAC Decode AAC-LC ".aac", "m4a" files
WAV Decode Linear-PCM
FLAC Decode FLAC file (Up to 24bit/96kHz)
AUX Frequency Response 20Hz to 20kHz ±3dB
Input Input Maximum Voltage 1000mV
Input Impedance 30kΩ
AMP PWR(MAX) 50Wx4
Full Bandwidth Power 22Wx4
(at less than 1%THD)
TONE Band1 62.5Hz ±9dB
Band2 100Hz ±9dB
Band3 160Hz ±9dB
Band4 250Hz ±9dB
Band5 400Hz ±9dB
Band6 630Hz ±9dB
Band7 1kHz ±9dB
Band8 1.6kHz ±9dB
Band9 2.5kHz ±9dB
Band10 4kHz ±9dB
Band11 6.3kHz ±9dB
Band12 10kHz ±9dB
Band13 16kHz ±9dB
Bluetooth Version Bluetooth 4.2
Frequency Range 2.402 to 2.480GHz
RF Output Power (E.I.R.P.) +4dBm (MAX), Power Class 2
Maximum Communication range Line of sight approx.10m(32.8ft)
Profile HFP 1.7.1 (Hands Free Profile)
SPP(Serial Port Profile)
PBAP(Phonebook Access Profile)
A2DP(Advanced Audio Distribution Profile)
AVRCP 1.6.1 (Audio/Video Remote Control Profile)
GENE Operating voltage 12V DC car battery
Installation Size (W) 178(mm)
(H) 100(mm)
(D) 156(mm)
Net Weight 1.4(kg)
(Trim plate: Included)
