NX-900/901

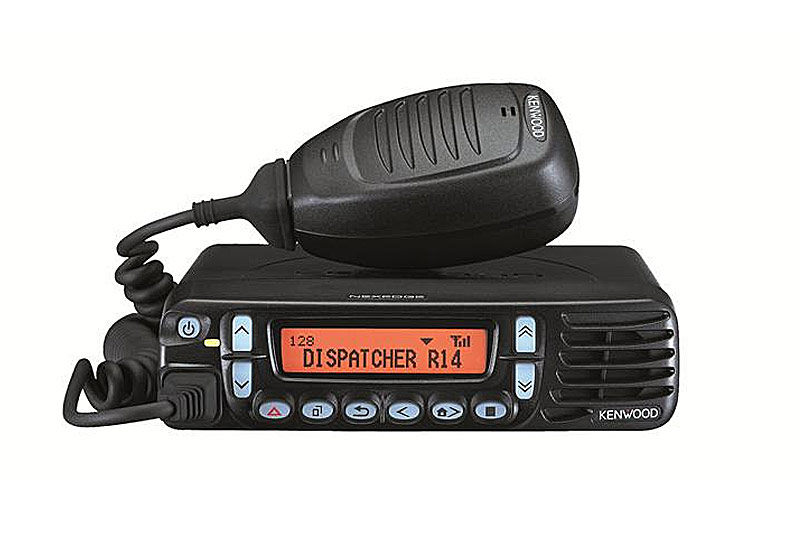

NEXEDGE® VHF/UHF Digital &FM Mobile Radios NX-900/901

KENWOOD’s groundbreaking NEXEDGE® very narrow band digital technology has expanded to include 800 MHz RF infrastructure and portable and mobile subscriber radios. NEXEDGE® technology now covers 150 MHz, 450 MHz and 800 MHz to offer scalable digital communications systems to users in a wide range of key applications from Public Safety to Enterprise, Utilities, Transportation, and Petrochemical. NEXEDGE® 800 MHz digital operating mode utilizes the NXDN digital air interface for conventional and trunking operation plus analog mode in both conventional and trunking (LTR).

General Features

• 15W (806-870 MHz) Model
• 512 CH-GID / 128 Zones
• Dash & Remote Mount
• 14 Character Alphanumeric Aliases
• Backlit Dot Matrix LCD
• Function/Status LCD Icons
• Multi-Language Display
• Date & 12/24 Hour Time Clock
• Transmit/Busy/Call Alert/Warn LED
• On/Off Power Control
• 4 Up/Down Selectors
• 6 Front PF Keys
• Emergency/AUX Key
• 4W Speaker Audio
• DB-25 Accessory Connector
• 9 Programmable AUX I/Os
• 2 Programmable AUX Outputs
• KPG-111D Windows® FPU
• Flash Firmware Upgrading
• NXDN® Conventional & Conventional IP Networks
• NXDN® Trunked Single Site & Multi-site Network Capability
• 6.25 & 12.5 kHz NXDN® Digital Modes; 25 & 12.5 kHz Analog Modes
• MDC-1200
• FleetSync®/II (FM)
• MIL-STD-810 C/D/E/F/G
• IP54/55 Water & Dust Intrusion
• PC Serial Interface
• SDM Manual Input*
• Transparent Data Mode*
• GPS Receiver Option
• VGS-1 Voice Guide / Voice & GPS Data Storage Option

• See product brochure for additional details.
