CAX-HL10QI

Compatible with all Qi-certified
receiver products,
including smartphones and
mobile phone covers.

Qi Wireless Charging Car MountCAX-HL10QI

Compatible with all Qi-certified receiver products, including smartphones and mobile phone covers.

  • Motorized Clamp
  • Infrared Sensor Lock
  • 15W Fast Charging
  • One-Touch Release

15W Fast Charging

Provides up to 15 watts of fast charging power to compatible Qi enabled phones.
*Charging wattage varies by phone type.

*QC3.0 USB car charger for fast wireless charging is included.

Qualcomm® Quick Charge is a product of Qualcomm Technologies, Inc.

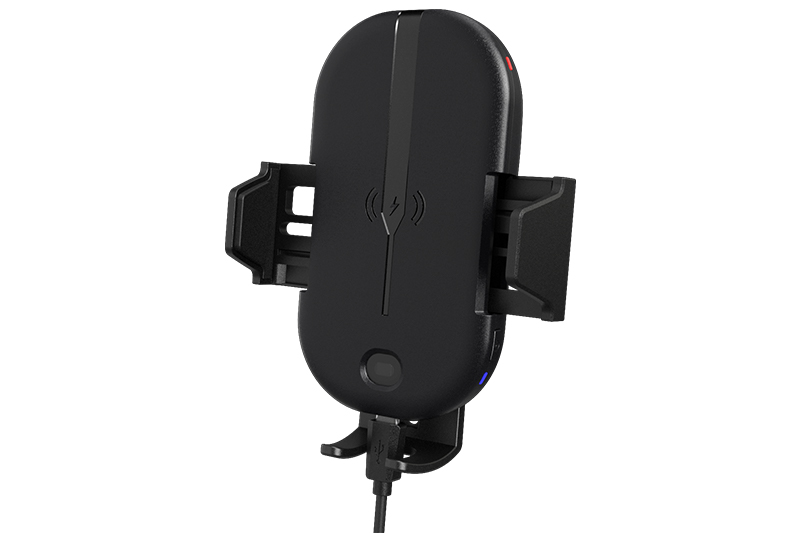

Motorized Clamp & Infrared Sensor Lock

When the phone is placed near the infrared sensor, the clamping arms will automatically motorize open, allowing you to easily set the phone into the mount. After the phone has been placed into the mount, the clamping arms will automatically motorize closed to lock and hold the phone firmly in place.

cax_hl10qi_angle
cax_hl10qi_angle

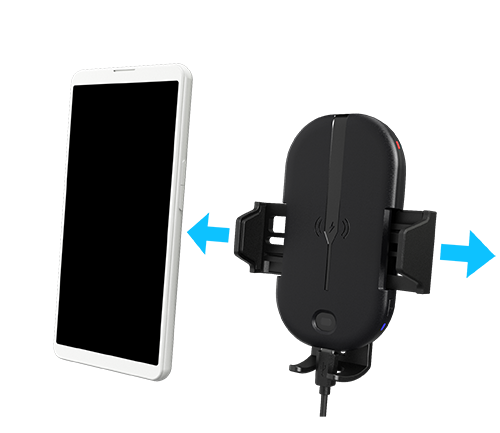

One-Touch Release

To remove the phone, simply touch the sensor on the lower left side of the mount.

charging movie

Built-in Battery

Allows mount to motorize open and closed even if your vehicle is turned off.

open arm Release

Safe Design

The adjustable hook ensures your phone stays securely in place, preventing a sudden drop even during the bumpiest of road conditions.

Stand adjust

Multiple Mounts Included

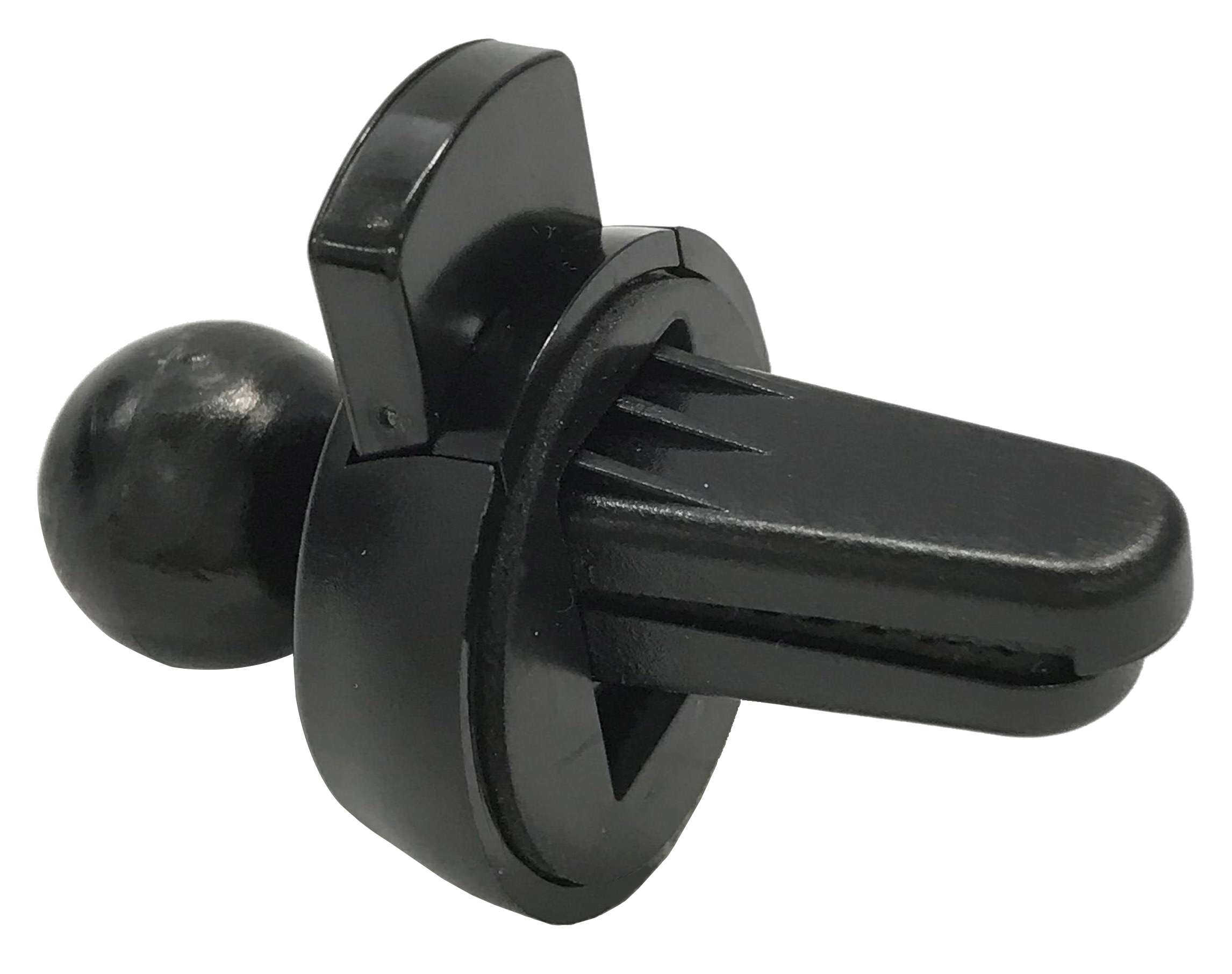

Air Vent Mount - Heavy duty mount that easily attaches to multiple types of air vents.

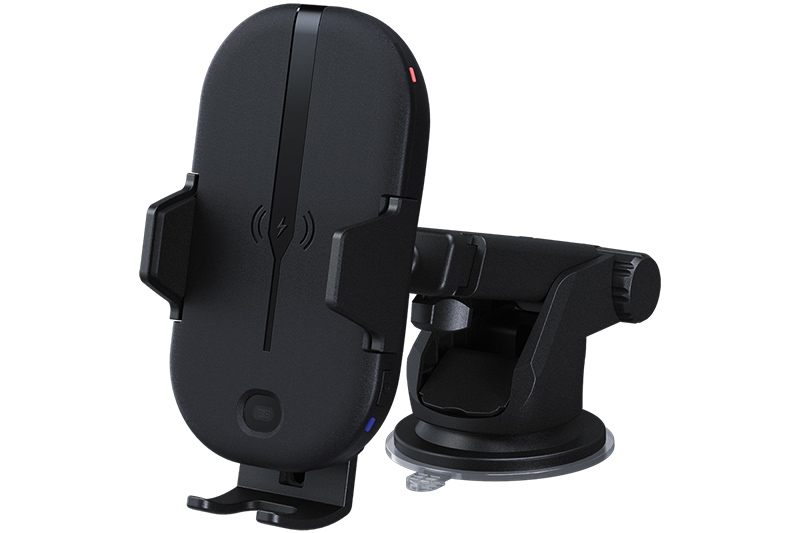

Suction Cup Mount - A sturdy scuction cup with locking function that holds firmly in place on a window.
Dashboard Mounting Plate - Attach this to your dashboard, then attach the suction cup mount for convenient mounting on your dash.

Multiple Mounts Included

Dashboard car mount

Dashboard car mount

Air vent car mount

Air vent car mount

Horizontal/vertical adjustable mount

Horizontal / vertical
adjustable mount

Qi Charger

Input DC.5V/3A ; 9V/2A ; 12V/1.5A
Output 9V/1.67A ; 9V/1.12A ; 9V/0.83A ; 5V/1A
Rated frequency 110kHz to 205kHz
Power 15W Max
Operating temperature range −10° C to +60° C
Transmission distance ≤ 6mm
Dimensions 69.8(W)mm × 123.0(H)mm × 65.9(D)mm
Weight 145g

USB Car Charger

Input DC12V/24V
Operating temperature range −10° C to +60° C
Output DC.5V/3A ; 9V/2A ; 12V/1.5A (It is in line with the protocol standard of Qualcomm® Quick Charge™ 3.0.)
Over temperature Protection:
When charging, if temperature goes over +60° C, the device will automatically stop charging and the transmitter light will flash red (1 second on/1 second off). When the temperature drops to +40° C, the device will automatically recharge.
« scroll

Qi Charger

Input DC.5V/3A ; 9V/2A ; 12V/1.5A
Output 9V/1.67A ; 9V/1.12A ; 9V/0.83A ; 5V/1A
Rated frequency 110kHz to 205kHz
Power 15W Max
Operating temperature range −10° C to +60° C
Transmission distance ≤ 6mm
Dimensions 69.8(W)mm × 123.0(H)mm × 65.9(D)mm
Weight 145g

USB Car Charger

Input DC12V/24V
Operating temperature range −10° C to +60° C
Output DC.5V/3A ; 9V/2A ; 12V/1.5A (It is in line with the protocol standard of Qualcomm® Quick Charge™ 3.0.)
Over temperature Protection:
When charging, if temperature goes over +60° C, the device will automatically stop charging and the transmitter light will flash red (1 second on/1 second off). When the temperature drops to +40° C, the device will automatically recharge.
