XM160-2

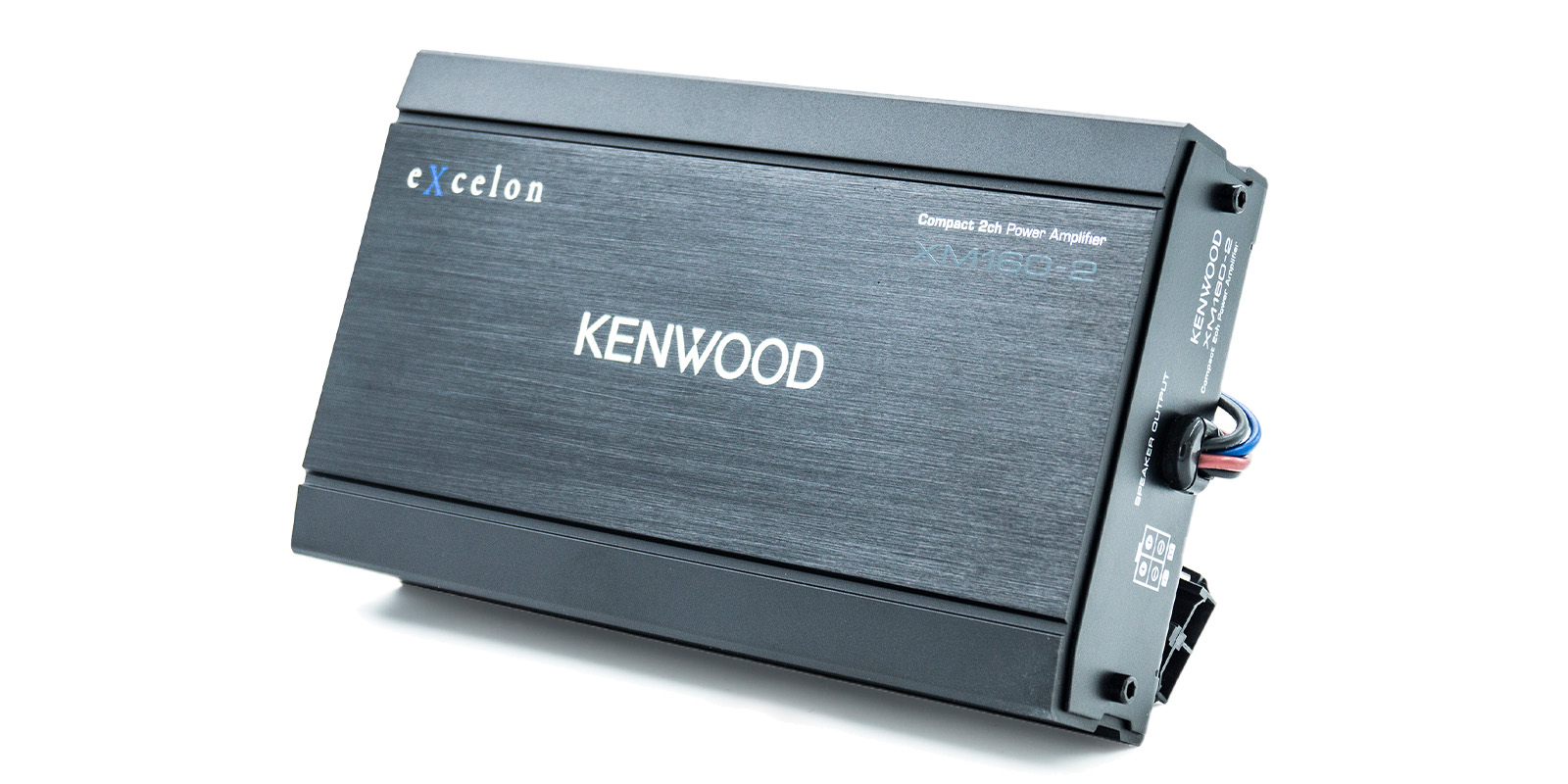

XM160-22-Channel Power Amplifier

  • Class D 2-Channel Power Amplifier
  • 80W x 2 @ 2 ohms (RMS)
  • No Radio Flash Required
  • Bypass Port For System Expansion

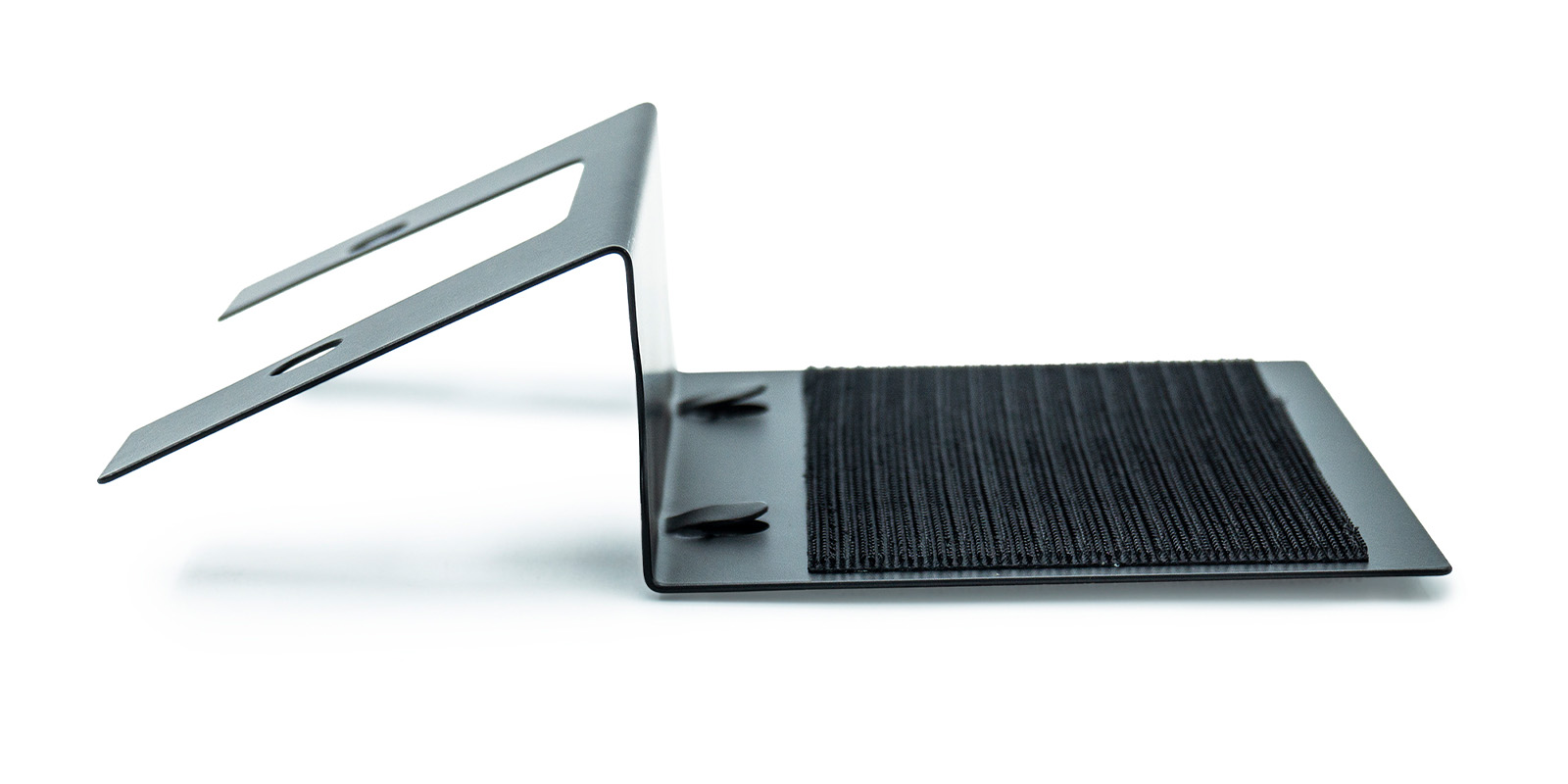

  • Street Glide®/Ultra® Mounting Plate
  • Road Glide® Mounting Plate

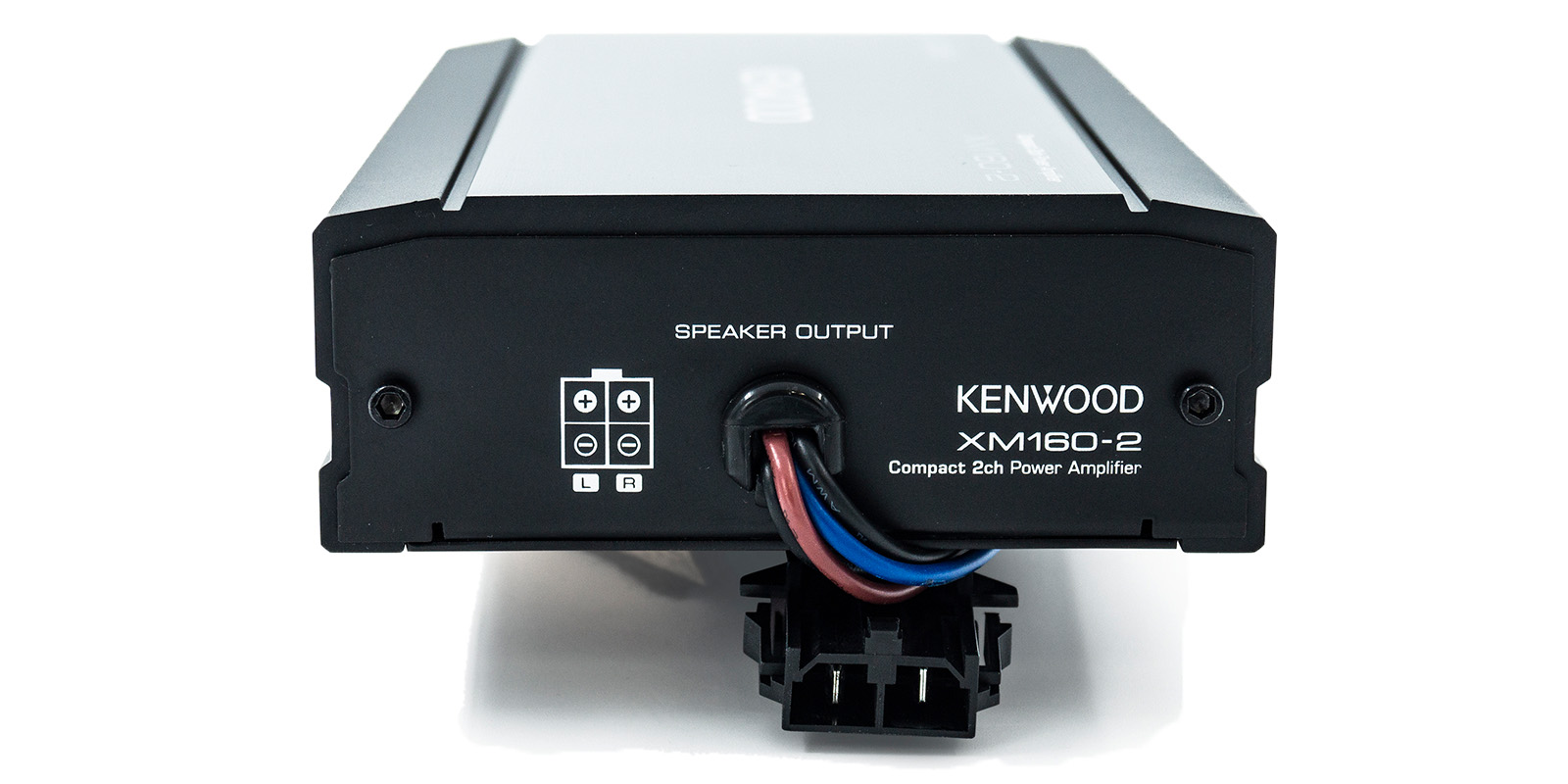

  • Plug & Play Power, Speaker, & Input Wiring
  • Speaker Level Input For HD OEM Radio or Any Aftermarket Receiver
  • Input Sensitivity Adjustment
  • High Efficiency Design Will Not Overload HD Electrical Systems
  • 2-Year Warranty

No Radio Flash Required

This amplifier is tuned for the best performance with a stock Harley Davidson® or aftermarket radio.

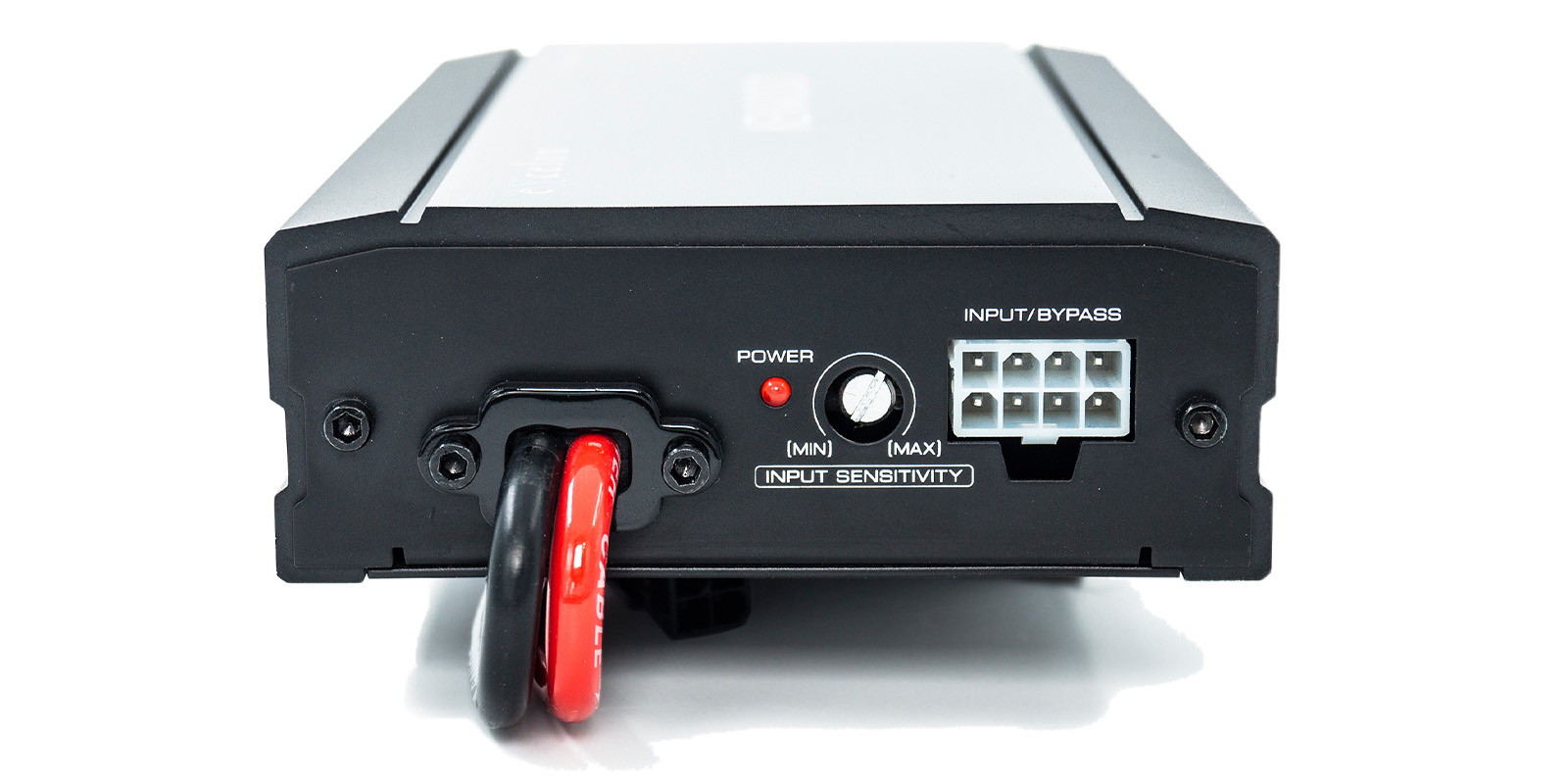

Input Sensitivity Setting

The input sensitivity adjustment exists to be able to properly level match an aftermarket receiver’s output if the OEM Harley Davidson® radio has been replaced (otherwise, we would have just removed and pre-set it!).

With an OEM Harley Davidson® radio, the input sensitivity should be set at just past the halfway point for optimal sound as shown in the picture above.

**Note** With this setting, the OEM Harley Davidson® radio can be turned up to 3 “clicks” from its max volume before the radio begins to distort.

Bypass Port For System Expansion

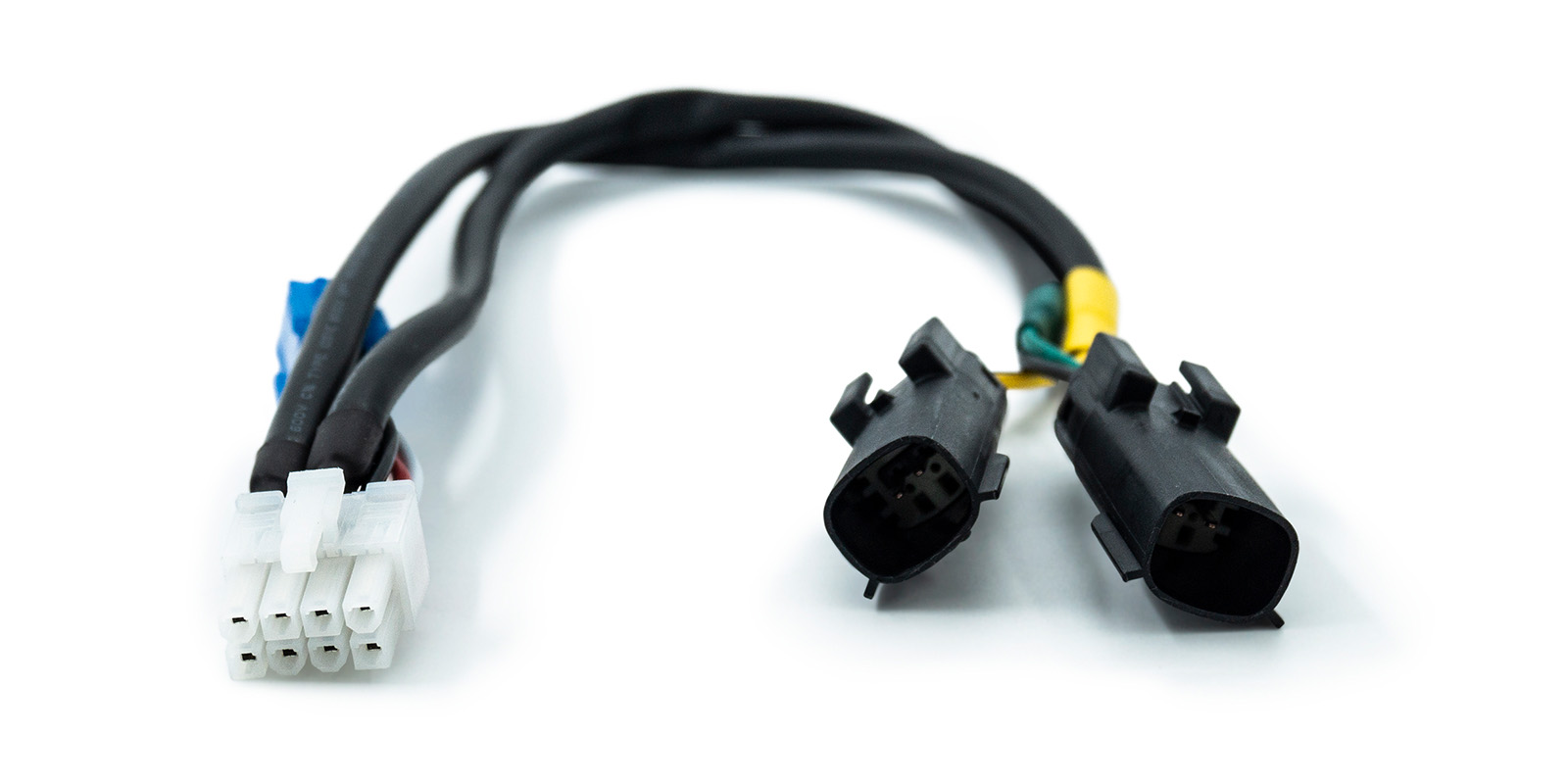

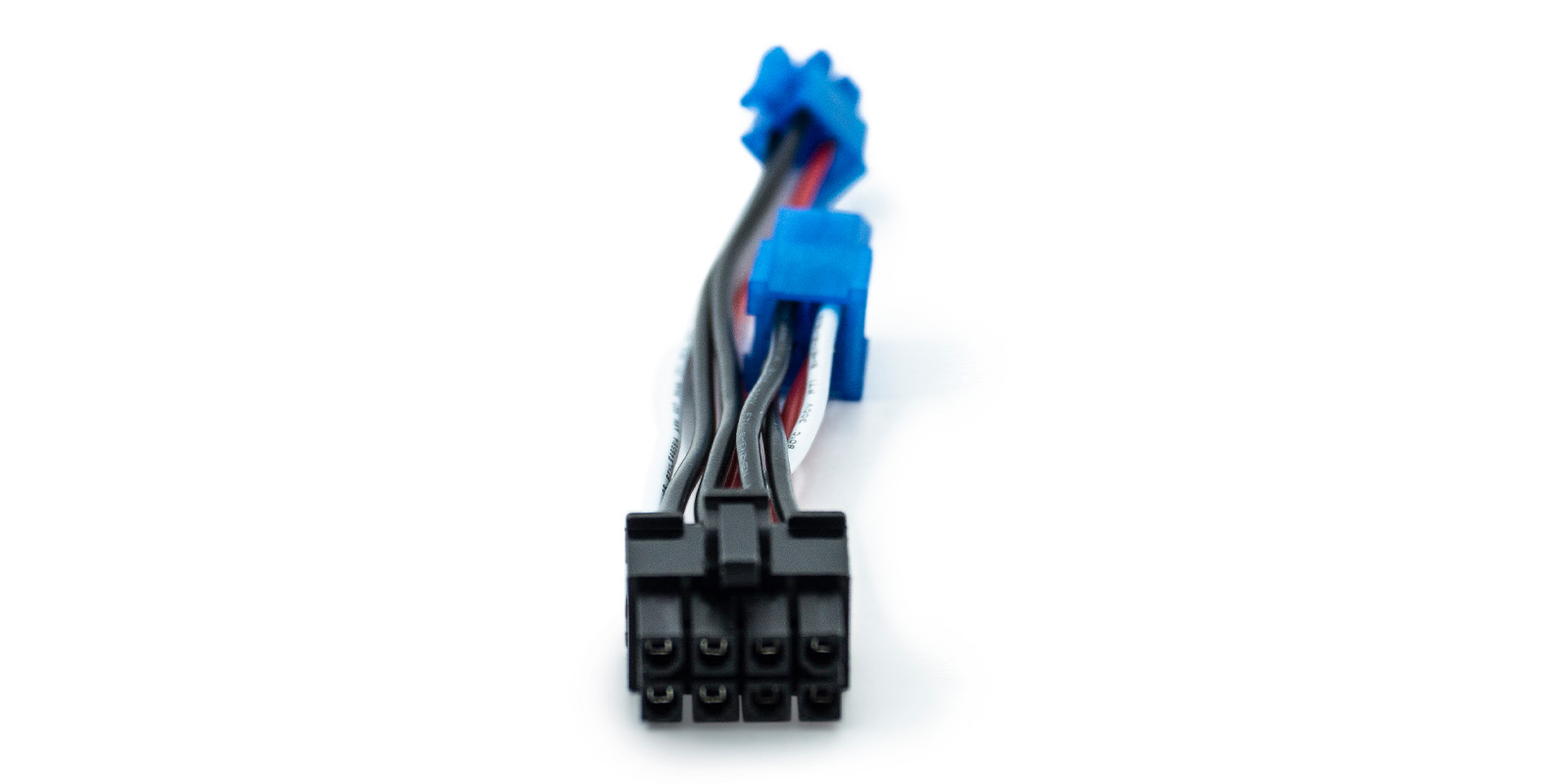

Easily add additional amplifiers by connecting to the input/bypass harness.

Built-in Voltage Monitoring Circuit

Automatically turns off the amplifier when the battery
voltage drops below 10.5V

BIKE FITMENT

  • 2014-Current FLHX Street Glide
  • 2014-Current FLHTK Limited Ultra
  • 2014-Current FLHTCU Ultra Classic
  • 2014-Current FLHTCUG Tri Glide Ultra
  • 2015-Current FLTR Road Glide
  • 2020-Current FLTRK Limited Road Glide Ultra
  • 2016-Current FLTRU Road Glide Ultra
  • This list is not conclusive. Product may fit additional bikes.
