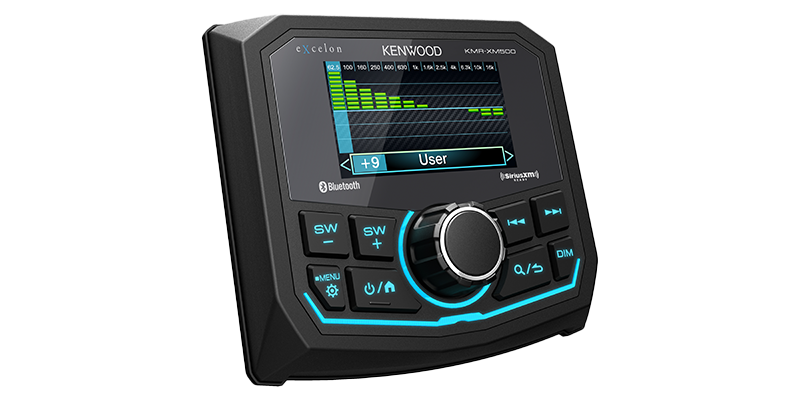

KMR-XM500Digital Media Receiver
with Bluetooth

  • 3” Gauge-Style Mounting
  • 2.7” LCD Display
  • AM/FM/Global Weather Band Tuner
  • Waterproof Rating of IP66
  • Wired Remote Ready (KCA-RC35MR, Sold Separately)
  • SiriusXM Ready®
  • Rear USB Port w/ 1.5A Charging
  • Variable Color Illumination
  • Bluetooth® Streaming
  • Rear View Camera Input
  • 50 Watts x 4
  • 3 Pre-Outs (5.0V)


KMR-XM500 received the "Editor's Choice" award from Stereowise Plus

Enhanced Durability

Water-proof & Dust-proof Front Panel

IP66 certified

*IPX4 for Chassis

Salt Spray-Proof

ASTM B117 salt spray (or salt fog) corrosion test simulates harsh conditions in a salt water environment to ensure the product does not corrode or fail in these harsh conditions.

UV Protection

The unit cover satisfied ASTM D4329 UV resistant test.

Vibration Resitant

3-axis multi-freqeuncy vibration tested to withstand damaging shocks.

Conformal Coating

Improved moisture resistance of the circuit boards to prevent corrosion.

The Best Audio Experience

Streaming Music

Listen to popular music applications and music stored on your device with basic audio controls.

Playable USB Files

Compatible with a broad range of audio file formats from FLAC and MP3, WMA and AAC.

Music Codec Playable up to
FLAC ~48kHz / ~24bit
MP3 ~48kHz / ~384kbps
WMA ~48kHz / ~320kbps
AAC ~48kHz / ~320kbps

13-Band EQ

13-Band equalizer gives optimal tuning enhancements for the listener.

Independent Subwoofer Volume Control

allows you to easily adjust your subwoofer volume.

*The volume works when the SW RCA Output is connected to amplifier/Subwoofer.

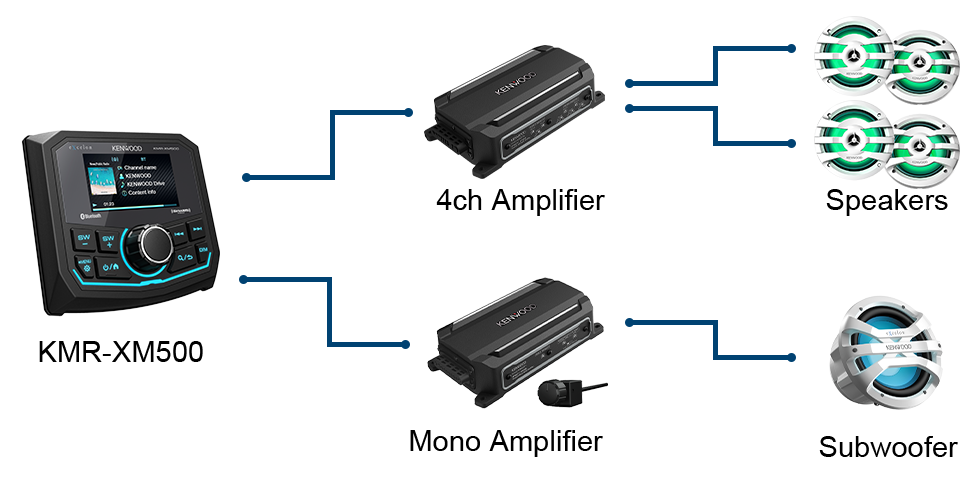

All Weather System EXPANSION Ready

The KMR-XM500 has RCA outputs to expand the system to connect amplifiers to power additional speakers & subwoofer(s).

Additional Features

2.7" LCD Display

2.7" LCD display secures higher visibility under sunlight and daytime use.

Rear View Camera Input Support

KMR-XM500 is equipped with a rear view camera input. With an optional camera connected, you have increased safety while driving UTVs, boats, etc..

SiriusXM Radio Ready

Access additional music, sports and entertainment content on the go with SiriusXM Radio.
(Optional SiriusXM tuner required, sold separately)

AM/FM/Global Weather Band Tuner

KMR-XM500 supports AM/FM and Global weather band.

Multicolor Illumination Controls

Bright variable color LED's can be adjusted to match your environment.

Spanish Text Display

On-screen display menu now available in Spanish.


The KCA-RC35MR (Sold Separately) is designed to control the KMR-XM500 from multiple positions.
The remote controls multi-functions such as volume, source, & track from a compact size.


You can connect up to 6 remotes in-line with each other.

  • 2.7 Color TFT

    LCD display secures higher visibility under sunlight and day-time use.

  • Variable Color Illumination

    Bright variable color LEDs can be adjusted to match any color of lighting.

  • FLAC Supported

    Compatible with various audio file formats from FLAC and, to MP3, WMA and AAC.

  • Graphic EQ

    13-Band equalizer gives optimal tuning enhancements.

  • Global tuner

    Worldwide access to local radio stations.

  • Conformal Coating

    Improved moisture resistance of the circuit boards to prevent corrosion.

  • 3" Hole Installation

    Provides more flexibility in mounting applications and locations.

  • Rear USB

    Enables easy placement and access of the USB input.

  • Rear View Camera Input

    An optional rear view camera enhances safety while backing up and monitoring behind your UTV, boat, etc..

« scroll
Water proof IP66 (Equivalent to IEC standard publication 60529 IP66) (IP66 Faceplate, IPX4 Body)
Monitor Picture Size 2.7 inch Color TFT
Backlight LED
FM Frequency Range(Frequency step) North America: 87.9MHz - 107.9MHz(200kHz)
South America, Europe, Russia, Asia, Middle East, Australia: 87.5MHz - 108MHz(50kHz)
Japan: 76.0MHz - 99.0MHz(100kHz)
AM Frequency Range(Frequency step) North America, South America, : 530kHz - 1700kHz(10kHz)
Europe, Russia, Asia: 531kHz - 1611kHz(9kHz)
Japan: 522kHz - 1629kHz(9kHz)
Middle East: 531kHz - 1602kHz(9kHz)
Australia: 531kHz - 1701kHz(9kHz)
Frequency Range(Frequency step) USA/Canada: 162.400MHz - 162.550MHz(25kHz)
USB I/F USB USB 2.0 (Full speed)
Compatible Devices Mass storage class
File System FAT16, FAT32, ExFAT
Capacity 32 GB max, 255 Folders max, 999 Files per Folder max
Maximum Supply current DC5V 1.5A
Frequency Response 20Hz - 20,000Hz
MP3 decode Compliant with MPEG-1 Audio Layer-3
WMA decode Compliant with Windows Media Audio
AAC Decode Compliant with MPEG2/4 AAC LC
WAV Decode -
FLAC Decode FLAC file, up to 24bit/48kHz
Preout Level(mV)/Load -Unbalanced 5000mV/10kΩ
Preout Impedance(Ω) ≦500Ω
Speaker Impedance(Ω) 2-8Ω
Bluetooth Version Bluetooth 5.0
Frequency Range 2.4GHz - 2.4835GHz
RF Output Power 0dBm(AVE), Power Class 2
Maximaum Communication range Line of sight approx.10m(32.8ft)
Pairing SSP(Secure Simple Pairing)
Profile -
A2DP(Advanced Audio Distribution Profile)
AVRCP 1.5(Audio/Video Remote Control Profile)
AMP Maximum Power 34W x 4 (@ 4 ohm, Peak), 50W x 4 (@ 2 ohm, Peak)
Full Bandwidth Power 19W x 4 (@ 4 ohm, RMS), 28W x 4 (@ 2 ohm, RMS)
Equalizer Band 13 Band
Frequency 62.5 / 100 / 160 / 250 / 400 / 630 / 1k / 1.6k / 2.5k / 4k / 6.3k / 10k / 16k Hz
Level -9dB to +9dB
GENE Operating voltage 12V DC battery
Installation Size (W) 115(mm), 4-9/16(in) Panel  φ77(mm), 3-1/16(in) body
(H) 106(mm), 4-3/16(in) Panel φ77(mm), 3-1/16(in) body
(D) 74(mm), 2-15/16(in)
Net Weight
(includes Trim Bezel, Mounting Plate, Screws)
0.9(kg), 2.0(lbs)
