PA-W801B

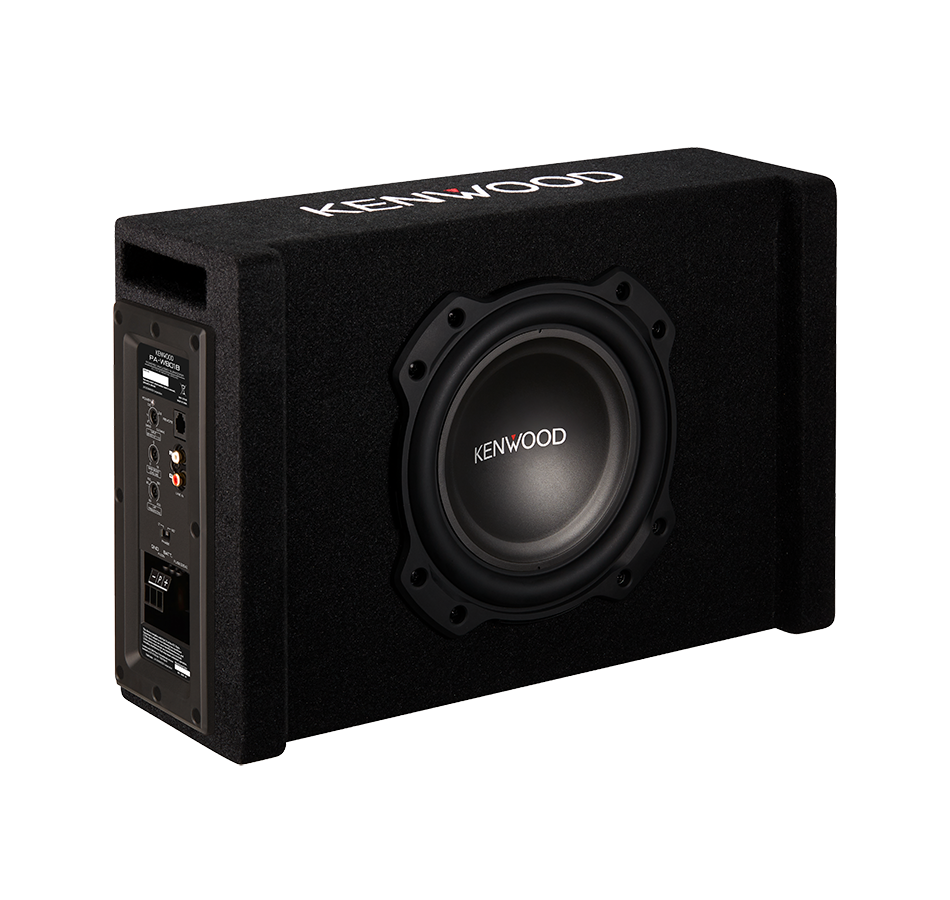

PA-W801B8" Oversized Subwoofer
in Ported Enclosure
(Discontinued)

400W Max Power Class-D Amplifier

The High efficiency Class-D amplifier provides strong deep bass.

Down Firing Ported Enclosure

Compact design with a height of 5-7/8".

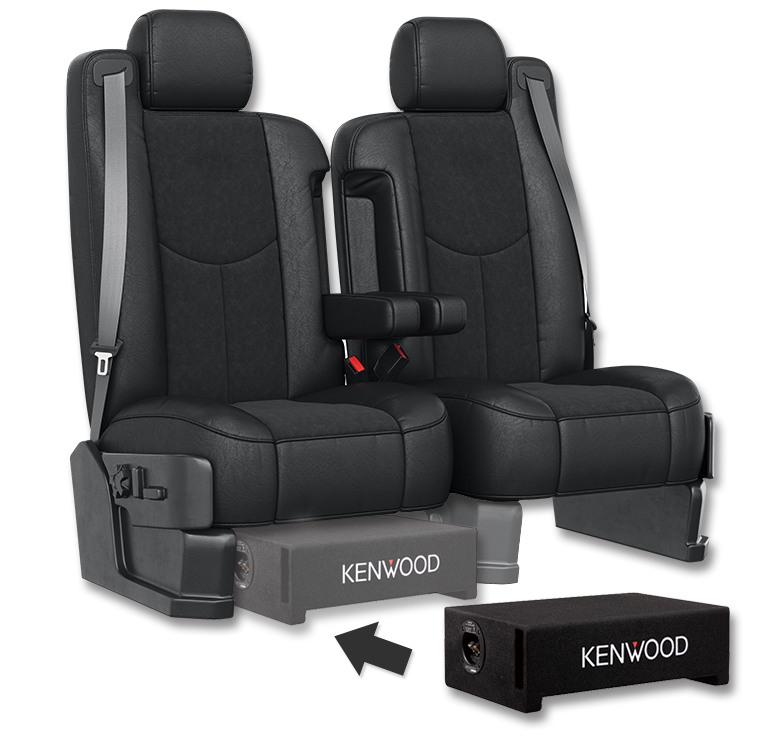

Can be installed under the seat. You can enjoy DEEP BASS sound regardless of the car type, effectively using the space inside the car.

Detachable Power Connector

A detachable power connector provides for easy box removal when extra space is needed.

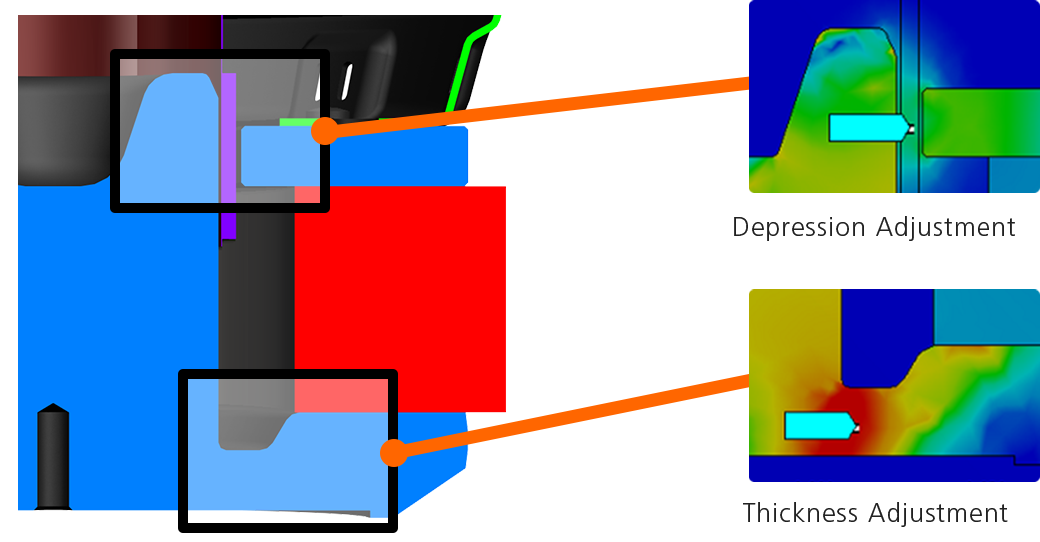

Optimized Magnetic Circuit

By optimizing the magnetic circuit, even small boxes like this can produce DEEP BASS.

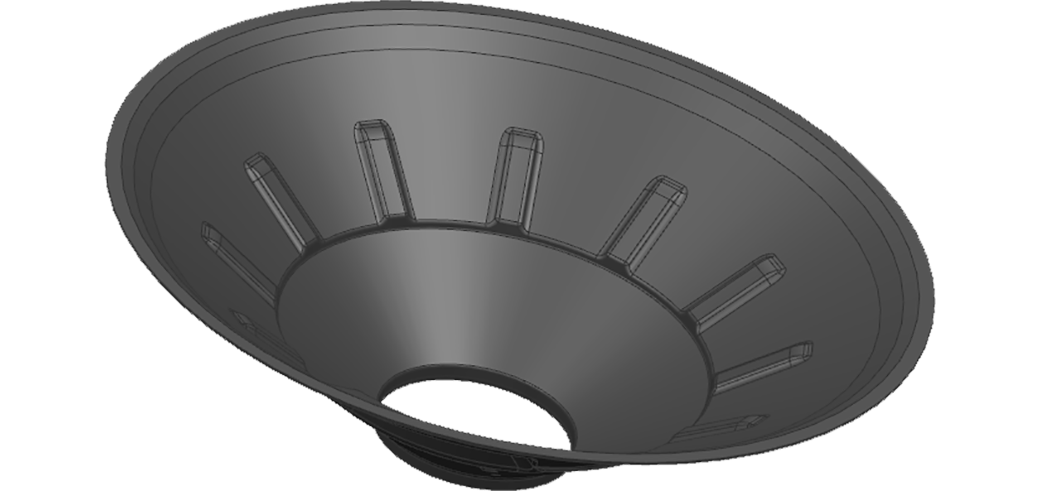

Reinforcing Ridges

Reinforcing ridges are added to the cone for reduced distortion, resulting in better sound.

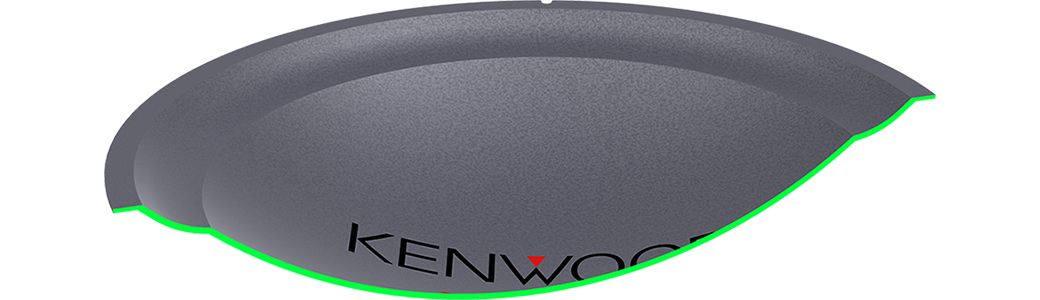

Dual Area Cap

Two curved surfaces help to retain its shape, reproducing tight, solid BASS.

Air Cooling System

Airflow cooling system allows air to flow from the cap, cooling the voice coil.

High Durability -Stress Controlled Spider

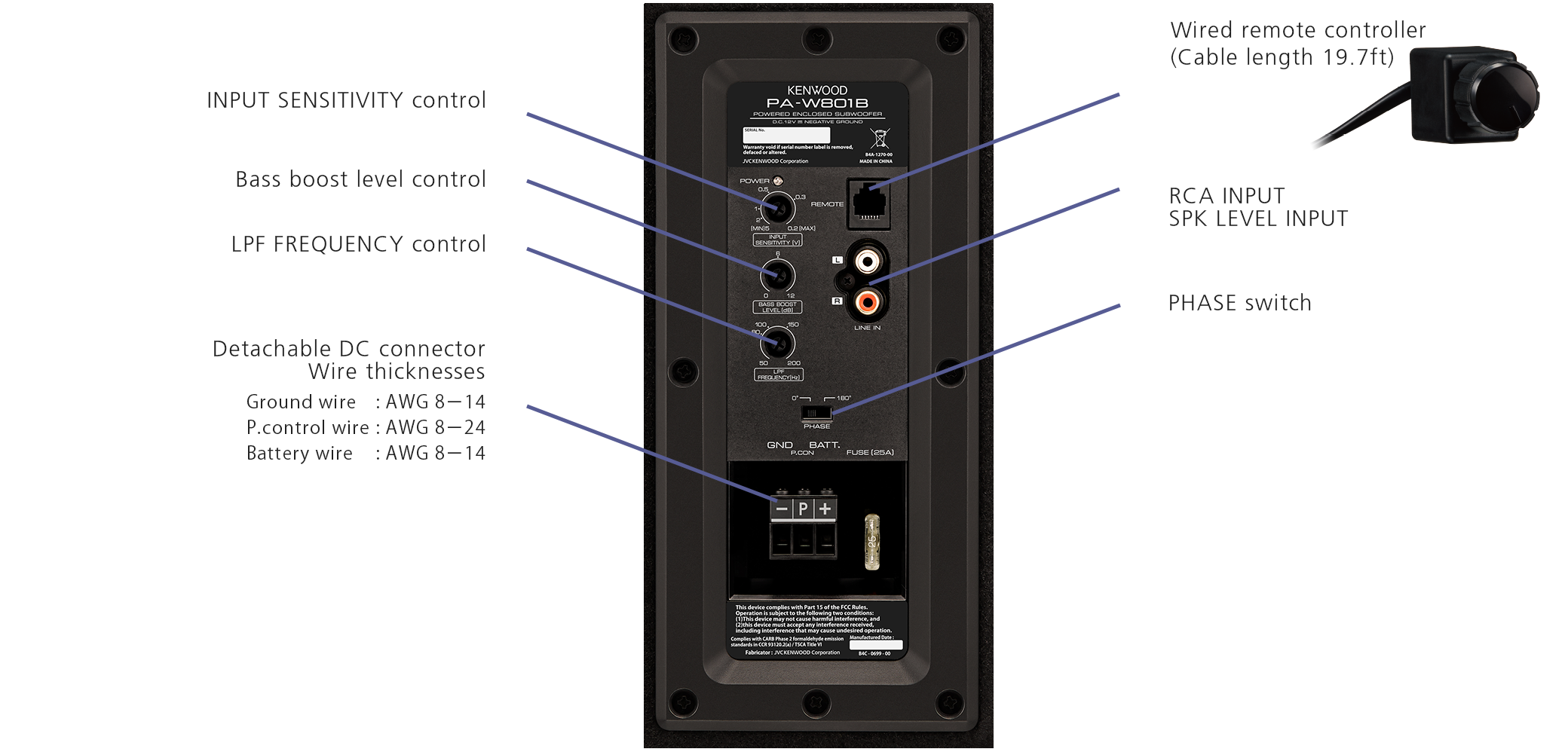

Side panel

Dimensions

Specs

Woofer Size 8”
Impedance (Ω) 0.4Ω
Max Power (W) 400W
RMS Power (W) 200W
Sensitivity (dB at 1m) 80dB
Frequency Response (Hz) 32-250Hz
Dimension (W x H x D) 17-11/16" x 11-13/16" x 5-7/8"
Weight 18.52 lbs
