TK-5220/5320

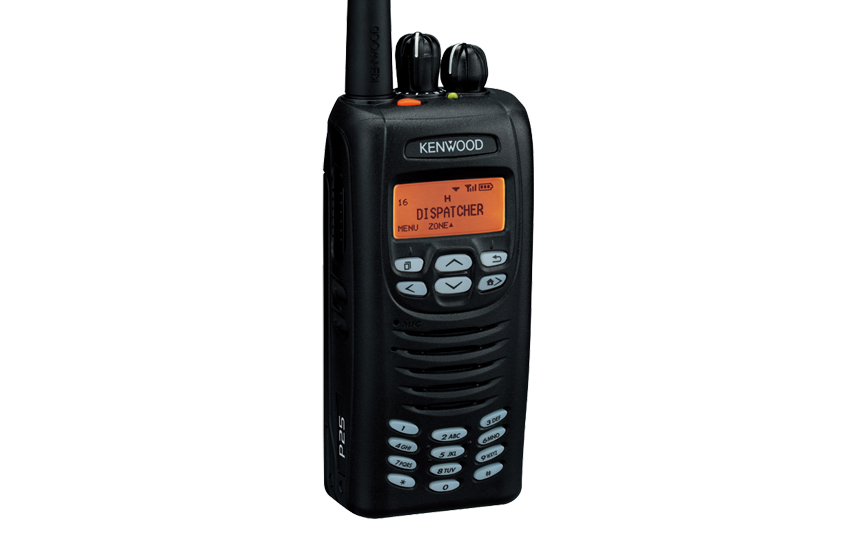

VHF/UHF P25 Digital & FM Portable Radios TK-5220/5320

KENWOOD's new VHF and UHF P25 Portable Radios feature a compact, rugged design rich with capability and performance. The new TK-5220/5320 portables join KENWOOD's higher tier P25 radio models to offer an expanded group of P25 solutions for all levels of public safety and service agencies. These new mid-tier P25 models operate in FM Analog and P25 Digital modes and combine AMBE + 2 Enhanced Full Rate Vocoder tehcnology along with KENWOOD's decades of audio heritage to deliver unmatched audio performance in a two-way radio.

General Features

- 136-174, 400-470, 450-520MHz Models
- 5W RF Output Power
- 128Zones / 512Channels
- Analog FleetSync/II or MDC-1200 (one format per radio)
- 14 Character Alphanumeric lighted dot matrix LCD
- 16-Position Selector Knob with detent feel & mechanical stop
- 8 Programmable Function/LCD menu keys
- RSSI Indicator
- Transmit/Busy/Call Alert/Warn LED
- 3-Digit Sub-Display*
- 12-Keypad Models
- VOX Ready
- Emergency Features
- Transceiver Password
- Easy Option Port
- Voice Guide & Storage (Option)
- MIL-STD 810 C/D/E/F
- IP 54/55 Water & Dust Intrusion
- Single Zone/Multi-Zone Scan
- Dual Priority Scan

Analog Features

- QT/DQT
- 2-Tone Decode/Encode
- DTMF Encode/Decode/Stun
- Companded Audio
- FleetSync / II (FM)
- PTT ID Digital ANI
- Status Messaging
- Caller ID Display
- Send/Display GPS (KPG-47GPS)
- Selective & Group Call
- Emergency & Stun Statuses

MDC-1200 Feature

- PTT ID Digital ANI
- Caller ID Display
- Emergency Status
- Radio Check
- Radio Inhibit

P25 Digital Feature

- P25 Digital Conventional
- AMBE+2 Enhanced Vocoder
- Talk Group ID Lists
- Individual ID Lists
- Caller ID Display
- Encryption Key Zeroize and Retention
- DES Encryption Module
- AES & DES Encryption Module

Intrinisically Safe Option

- FM Approvals with KNB-50NC Ni-MH IS Battery
7.2V/2000mAh
- IS/I,II,III/1/CDEFG/T3C

Future Availability

- P25 GPS Location
