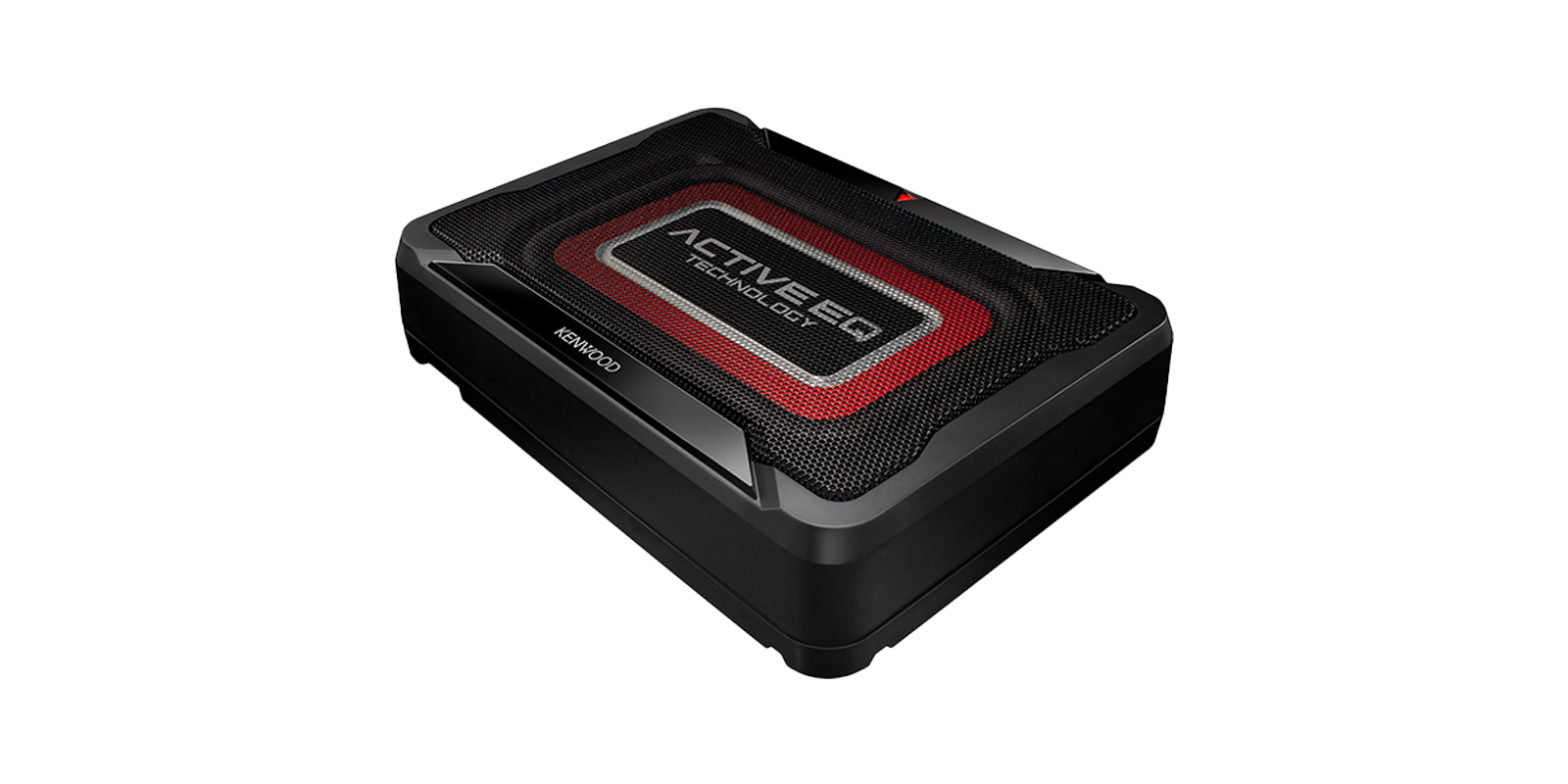

Powered Subwoofer

KSC-PSW7EQ

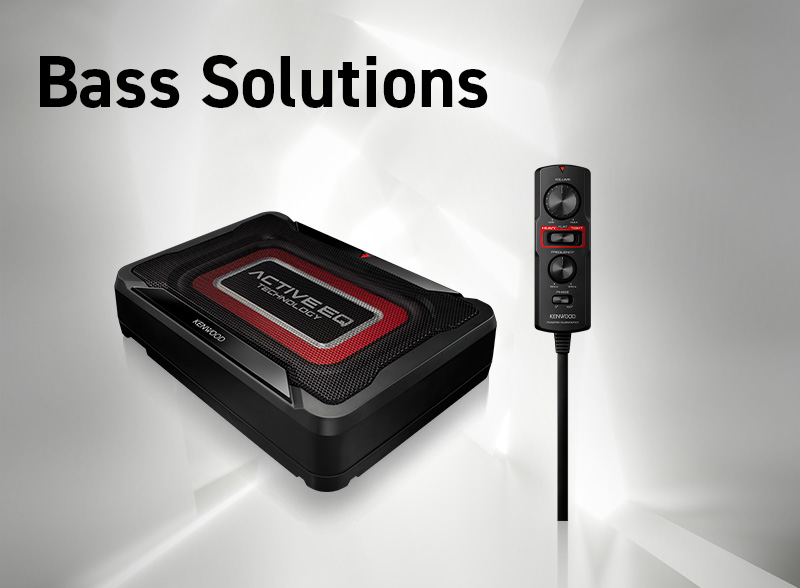

Compact Powered Subwoofer

Click here to learn more

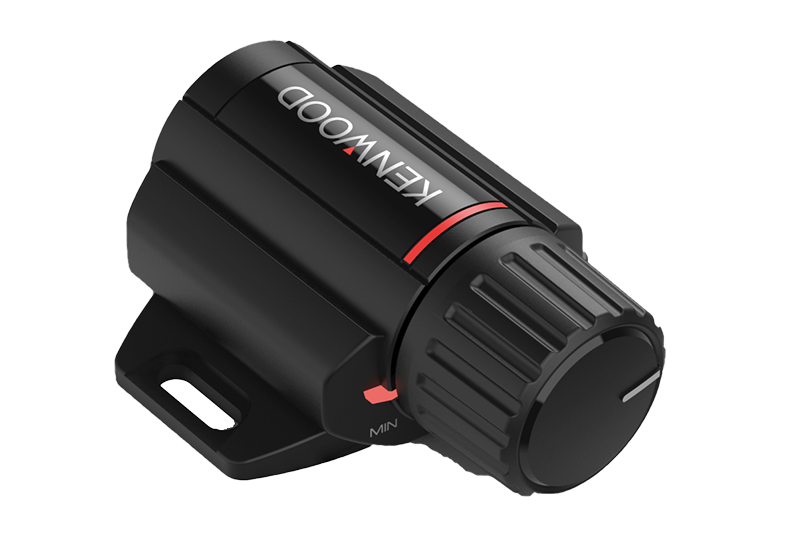

Remote Control Sound Adjustment

Volume : Input sensitivity control knob

ACTIVE EQ : Equalizer selector switch

Frequency : Cut-off freqeuncy control knob

Phase : Phase select switch

ACTIVE EQ TECHNOLOGY

Tech Spec KSC-PSW7EQ
Woofer Size 200mm x 130mm
Max Power (W) 160W
Current Consumption 5.9A
Sensitivity (dB at 1m) 89dB
Frequency Response (Hz) 40Hz - 200Hz (-15dB)
Speaker Level Input Yes (Speaker Level Input)
Signal Sensing Turn-on Yes (Speaker Level or RCA)
Dimension (W x H x D) 280mm x 70mm x 200mm
Weight 2.6kg
Remote Control Cable Length 5m

KSC-PSW10ST

Spare Tire Powered Subwoofer

Tech-Spec KSC-PSW10ST
Maximum Output 1200W
Input Sensitivity
RCA Input 0.18V - 1.7V
Speaker Input 1.7V - 12.0V
Input Impedance 10kΩ
Power DC14.4V
(Operating voltage 11V-16V)
Current Consumption 40A
Frequency Response 40Hz - 250Hz
Sensitivity 76dB
Cut-off Frequency 50Hz - 150Hz (variable)
Bass Boost Control 0 -+18 dB (variable)
Phase 0°, 180°
Dimensions W x D x H(mm) 360 x 147 x 360
Weight 9.0kg

KSC-PSW8

20cm All in One Powered Subwoofer

KSC-PSW8 KSC-PSW8
(1)
(2)
(3)
(4)
(5)
(6)
(7)

(1)  Volume Control

(2)  Frequency Control

(3)  Phase Control

(4)  20cm Woofer Cone

(5)  35cm

(6)  24cm

(7)  7.5cm

Compact Bass Solution

Powered Sub. Tech-Spec KSC-PSW8
Maximum Output Power 250W
RMS Power 150W
Size 20cm
Low Pass Filter 50Hz - 125Hz, -12dB/oct
Gain Control Yes (On Remote)
Phase Control 0°/180°(On Remote)
Speaker Level Input Yes
Signal Sensing Turn On Yes
Dimensions W x D x H (mm) 350 x 240 x 75
RCA Input Yes
