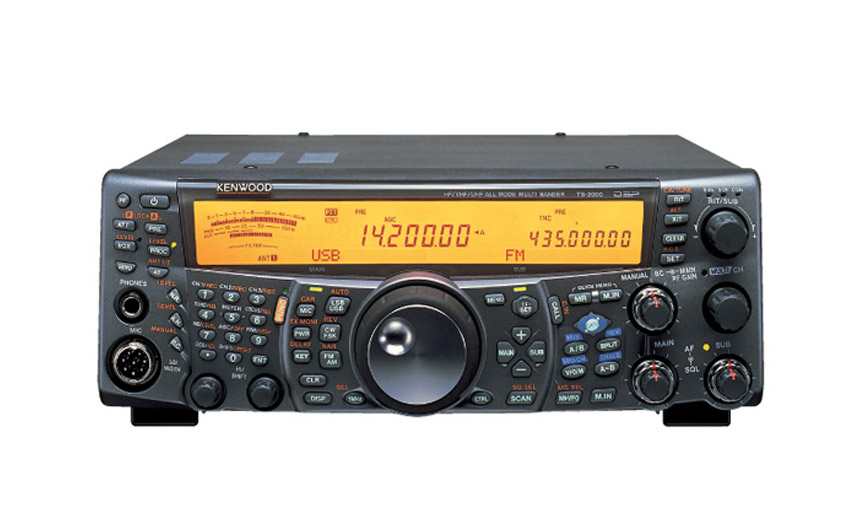

TS-2000

HF/50/144/440/1200* MHz All-mode Meltibander *With optional UT-20 1200MHz all-mode unit TS-2000

IF Digital Signal Processing

The TS-2000S/SX/2000X is serious about digital signal processing. KENWOOD's advanced digital technology converts analog waveforms into digital data in real-time, enabling such digital processing as IF filtering, slope tune, auto notch and AGC. IF-stage DSP on main-band transmit and receive - including V/UHF bands - allows the greatest range of control and unprecedented performance.

DSP Detection

IF-stage DSP means that the TS-2000S/SX/2000X offers significantly lower distortion and higher quality detection in all modes.(FM: digital AF filter)

Degital Filtering

There is absolutely no need to purchase optional filters: digital IF filters are available for each mode (FM: digital AF filter), offering performance superior to anything possible with analog circuitry. When operating in SSB/FM/AM modes, this digital filtering enables both high-and low-cut frequency variance. Employing slope tune, you can thus cut out noise with minimal effect on sound quality. In AM mode, the high-cut frequency can reduce interference by controlling the IF pass bandwidth - useful for receiving shortwave broadcasts. In CW mode, the WIDTH function is supplemented by center frequency shirt, allowing adjacent signal interference to be tuned out. The WIDTH function also provides noise reduction caoabilities in FSK with 4 steps available: 250,500,1000 and 1500Hz. And thanks to AF-stage DSP, independent control of high-cut and low-cut frequencies(12 steps each) provides slope tune capability in FM as well.

IF Auto Notch

Since it is working with a digital signal, IF Auto North (main band, SSB mode) can provideextremely sharp filterring of carrier frequencies from broadcast and continuous beat sources. The interfering beat is removed far more accurately than in conventional analog systems, and Auto Notch will even track changes in the beat signal (tracking speed can be varied in 5 steps).

IF AGC

The digital AGC circuit (main band only) delivers very fast release characteristics, surpassing even the best analog designs. You can select a custom release time (20 steps) for each mode, except FM.

AF Digital Signal Processing

DSP is also executed at the AF stage, offering Beat Cancel and CW Auto Tune functions. It also enables you to achieve remarkable noise reduction and apply custom enhancements to your transmitted voice.

Beat Cancel

Automatic Beat Cancel, available for the main band (SSB and AM modes), immediately eliminates multiple beats interfering with a desired signal. It works well in combination with IF Auto-Notch (SSB).

Manual Beat Cancel

A new Manual Beat Cancel function, which operates as a manual AF notch, can be used in all modes - though it is particularly effective in CW.

CW Auto Tune

You no longer have to adjust the VFO while operating on CW - CW Auto Tune does it for you automatically by adjusting the VFO to your preset pitch at the touch of a button.

There are 2 types of noise reduction: LEM (NR1) and SPAC (NR2). LEM (Line Enhancer Method) - available for all modes on the main band and FM/AM on the sub band - automatically forms a filter shape around the target signal for a custom, dynamic noise reduction capability. The degree of enhancement can also be set manually for mainband use. The SPAC (Speech Processing/Auto Correlation) function utilizes a special statistical/ correlation algorithm to pull out weak signals that are buried deep in noise. Although available for all modes on the main band, it's especially useful for tough CW conditions. The correlation time setting can be adjusted in 10 steps between 2ms and 20ms.

CW Auto Tune

TX Audio Shaping

You have 3 ways to tailor audio quality with DSP: the TX/RX equalizer (SSB/FM/AM), TX filter bandwidth (SSB/AM), and speech processor (SSB/FM/AM). The TX/RX equalizer offers 4 frequency response settings on SSB, FM and AM: high boost for improved clarity, formant pass to minimize extraneous sounds, bass boost for stronger sound, and conventional mode for an 'analog' sound. On SSB and AM transmit you can choose between 6 TX filter bandwidth settings according to your microphone and operating requirements. The speech processor works across three bands (SSB, FM and AM) for high compression and minimal distortion.

Expanded Power and Performance

DX Cluster (Packet Cluster)Tune

DX cluster information received on the sub band is not just displayed on the LCD: it can also be used for instantly setting up the main band frequency to cluster information. Up to 10 items can be stored in memory.

Built-in 1200/9600bps TNC

The simple 2-chip TNC is compliant with the AX.25 protocol for Sky Command and DX cluster tune.

Dual-Channel Watch

Provision of main and sub bands enables dual-channel watch. This all-mode multibander can simultaneously receive two frequencies, even on the same band, allowing such combinations as HF+V/UHF, VHF+VHF, UHF+UHF and VHF+UHF (the sub band is used exclusively for 144/440MHz reception on FM/AM). This means, for instance, that you can pick up local information on V/UHF while operating HF on the main band.

Satellite Communications

Satellite operations are enhanced with the IF-DSP, 10 dedicated memory channels, Doppler effect frequency adjustment (manual) and the ability to choose either normal or reverse shift for the trace.

High-duty Transmitter Section

This transceiver is the perfect choice for contesting, mobiling and FSK applications, delivering up to 100 (AM: 25) watts on HF/50/144MHz bands. Output is 50 (AM: 12.5) watts on the 440MHz band, and 10 (AM: 2.5) watts on 1200MHz*. But there's more than just power: the built-in TCXO ensures excellent frequency stability - ±0.5ppm (except in FM mode). *Minimum output is 5 watts for HF/50/144/440MHz bands, 1 watt for 1200MHz.

CW Features

In addition to the new Auto Tune function, there is a full range of CW features. The full/semi break-in switching and delay time settings are fully adjustable. In semi break-in the delay time between key release and active receive mode can be set for between 50ms and 1000ms. When using VOX operation the delay time can be set for between 150ms and 3000ms. Other CW features include pitch control (400-1000Hz), side tone monitor with 10-step volume setting, DSP-based rise time adjustment, and CW reverse mode.

FSK Features

When operating in FSK mode, you can select shift frequencies (170, 200, 425 and 850Hz) and switch both KEY polarity and Hi/Low tones to suit your RTTY device. Additionally, the FSK reverse function lets you match transmission methods to the other party if necessary, for example changing the BFO frequency from LSB (normal) to USB (reverse).

FM Features

As well as switchable Narrow/Wide deviation modes, the TS-2000S/SX/2000X has built-in CTCSS functionality with 38 EIA-standard sub-tones settings plus 1750Hz tone burst. Other features include DCS (104 codes), both crossband and fixed-band repeater operation, and 1200MHz ALT.

Data Communication Features

Packet filter bandwidth is fully selectable to match packet speed, and you can also switch ACC2 (PKD) input/output levels. For PSK31 mode, the menu offers a 100Hz bandwidth IF-DSP filter.

Enhanced Operating

Automatic Antenna Tuner

The built-in antenna tuner - which also operates when the radio is in receive mode - covers amateur bands from 1.9 to 50MHz, with rapid tuning lock when using presets.

300 Memory Channels

This transceiver provides a bank of 300 memories (plus 1 call channel for each band), with 290 assignable by name and 10 available for programmable scan. The scroll function lets you browse memory contents, memory channel copy sends the contents of one channel to another, lock-out memory changes the scan map to exclude certain channels, and memory shift alters the frequency stored in a channel. In addition, there are 10 ‘quick’ memories to capture a current operation on-the-fly ― ideal for contest operation.

Multiple Scan Function

A full range of scan functions is provided, including MHz scan, memory scan, and call scan. Group scan mode covers all 300 memory channels in groups of 10, and programmable band scan will search a frequency spread between two VFO settings (the scan-hold function stops the scanning for 5 seconds). A new feature is programmable slow scan, which will automatically slow down to check a frequency range you’re interested in. As well as varying scan speed, you can choose either time-operated (TO) or carrier-operated (CO) busy-stop-resume.

Menu System

All of the power and functions of the TS-2000S/SX/2000X can be accessed through the menu-driven display interface on the front panel. You may also activate the Quick Menu feature to access only your most commonly-used functions.

Other Features

Large, amber-colored backlit LCD
Backlit front keys
Compatible with optional DRU-3A digital recording unit
Key operation announcement with optional VS-3 voice synthesizer (option)
Programmable function keys
Transverter (displays up to 19.99999GHz)
RF gain control
All-mode squelch
Simple visual scan
Auto simplex checker
Auto repeater offset (144/1200MHz)
DTMF remote control
Built-in keyer
Noise blanker
Auto power-off

General Features

All-mode multibander :

HF / 50 / 144 / 440 / 1200MHz* in one compact rig offering wide-band receive ( 500kHz to 1300MHz, non-contiguous ) and 100W output ( HF / 50 / 144MHz ) - ideal for both bese station use and mobile operation.
*TS-2000S/SX require optional UT-20 1200MHz all-mode unit. The UT-20 can only be installed by a qualified technician; do not attempt to install it yourself.

Dual-channel receivers :

Featuring an all-mode multiband transceiver ( with satellite mode ) plus a sub 144 / 440MHz FM / AM receiver, so two frequencies ( HF / 50 / 144 / 440 1200* : ALL MODE + 144 / 440MHz : FM / AM ) can be received simultaneously, even on the same band ( 144 / 440MHz ).
*with optional UT-20 1200MHz all-mode unit.

Digital signal processing :

IF-DSP ( main band ) combines with AF-DSP (sub band ) to provide precision filtering and interference reduction.

Satellite communucations :

Main-band circuits are used for satellite mode, which thus benefits from IF-DSP.

Striking design :

With its large amber LCD and becklit keys, the distinctive front panel of the TS-2000S/SX improves operating ease.

KENWOOD Skycommand System II Plus :

Built-in Transporter function means the TS-2000S/SX can be operated remotely with one handheld transceiver.

High- speed processing :

Superior performance is assured with two 16-bit DSP chips, double-precision computing and a 100MHz speed CPU, plus 24-bit A/D and D/A converters.

High frequency stability :

Built-in TCXO offers professional performance - ±0.5ppm* ( from -10 to + 50°C ).
*Main-band SSB, CW, FSK, AM modes only.

Other features :

include a mobile controller and radio control software ( both options), built-in auto antenna tuner, DX cluster tune, and an antenna terminal dedicated to HF low-band reception.
