2018 DashCam Firmware Update Guide

Target Model and Firmware Version

Target models Target firmware versions Updated versions
DRV-320 VJ15, VJ16 VJ09

Checking the Firmware Version

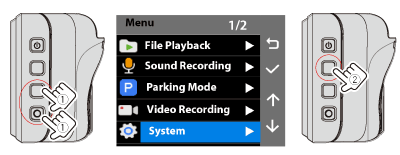

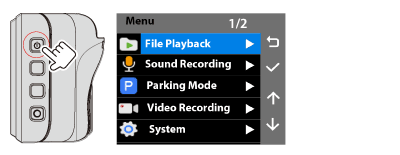

  1. Press the [] button to MENU appears.
  2. Press the []/[] buttons to select "System settings" and then press the [] button.
  3. Check the version.

Creating the Update Media

  1. Download the Updates from the Web site.
  2. Decompress the downloaded file.
  3. Copy the decompressed file to the top of hierarchy in microSD card.

Updating the Program

Precautions

  • Do not turn off the power of the device, start the engine of the vehicle, or remove the SD card during the update.
  1. Turn off the power of device by turning off the ignition of the vehicle.
  2. Insert the microSD card in the device.
  3. Turn on the power of device by turning on the ignition of the vehicle.
    The device will automatically show the "Update the sys" on the screen.
    Start the firmware update.
  4. When the firmware update is finished, the power will turn off automatically.
  5. Remove the microSD card.
