Mirroring for KENWOOD is a screen sharing application designed for Display Audio.

Mirroring for KENWOOD is a smartphone screen sharing application designed for Display Audio.
With convenient 2-way touch control capability. (Android OS only)
Mirroring for KENWOOD maximizes your in-car experience.

How to connect with Display Audio

Sound sharing: by Bluetooth connection
Screen sharing: by USB cable connection

Remarks

Can share any smartphone application to Display Audio.

Some functions may do not work by operation on Display Audio depending on the connected device.

Set permissions for the Mirroring for KENWOOD application

Preparation

Pair your receiver to your smartphone with Bluetooth.
For details, see the instruction manual of the receiver.
Set TEL (HFP) 1/2, Audio (A2DP)/App (SPP), and Mirroring profiles.

Android OS

  1. 1) Launch Mirroring for KENWOOD App on your Android Smartphone.
  2. 2) Press "Start now" to start capturing your Android screen.
  3. 3) Press "OK" to start Mirroring for KENWOOD.
  4. 4) Turn on "Overlay Permission" of Mirroring for KENWOOD.

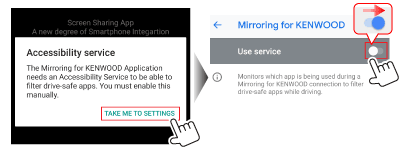

  5. 5) Turn on "Accessibility Service" to be able to filter drive-safe apps.

NOTE: This application uses the following permission.


iOS

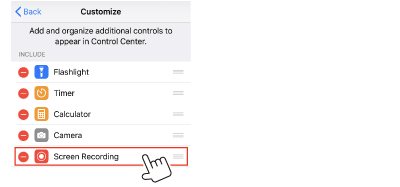

  1. 1) On your iPhone, launch “Settings”. Touch “Control Center” and then “Customize Controls”.
  2. 2) Touch “Screen Recording” and add to “INCLUDE” list.
  3. 3) Launch Control Center of your iPhone, touch and hold Screen Recording icon and then touch “Mirroring for KENWOOD” and start broadcast.

Compatible device

Android OS ver 5.0 or higher. Kernel version 3.5 or higher.

iOS version 11 or higher.

Compatible KENWOOD Products

Monitor with DVD Receiver:
DDX6019BT, DDX7019BT, DDX7019BTM, DDX719WBT, DDX719WBTM, DDX719WBTL

Monitor with Receiver:
DMX5019BT, DMX5019DAB, DMX7019BT, DMX7019BTM, DMX6019BT, DMX719WBT, DMX719WBTM




• Android and Google Play are trademarks of Google LLC.

• Apple is a trademark of Apple Inc., registered in the U.S. and other countries.
  App Store is a service mark of Apple Inc., registered in the U.S. and other countries.

• IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.
