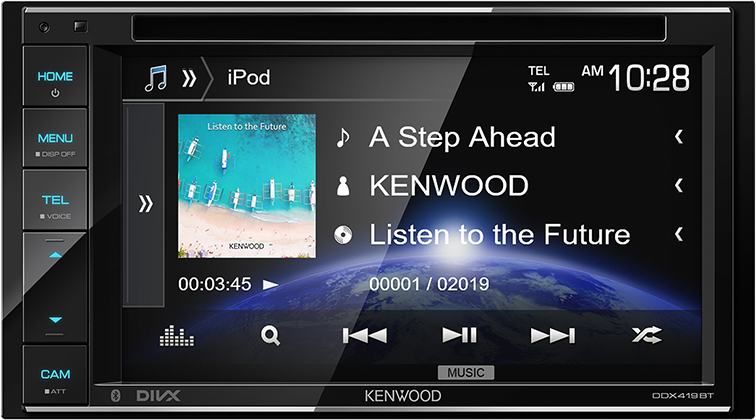

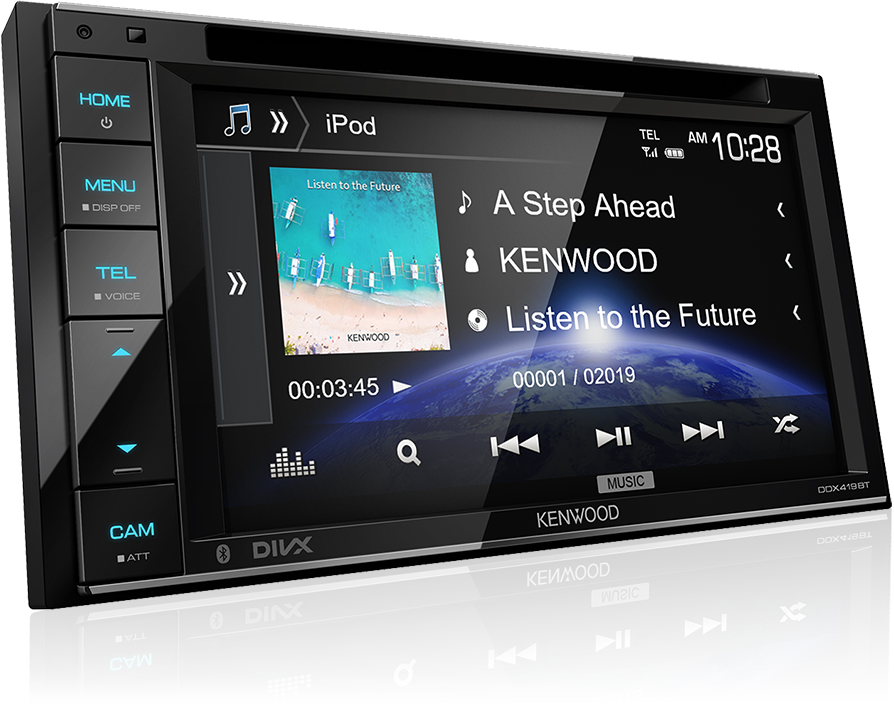

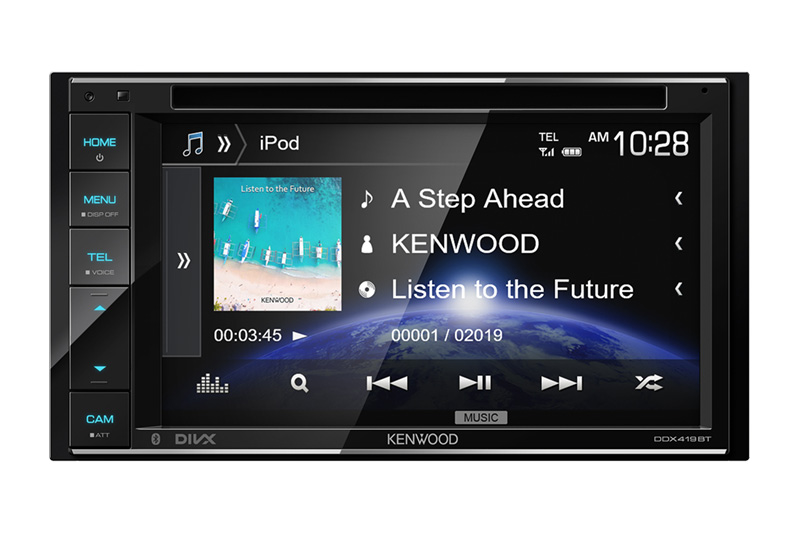

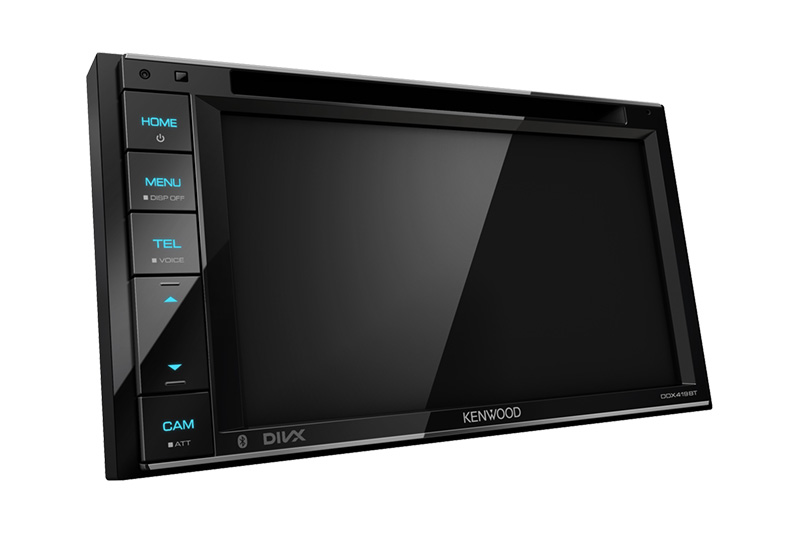

DDX419BTAV Receiver with 6.2inch WVGA Display
By connecting your smartphone and receiver wirelessly, your driving time will be more fun and convenient.
Up to 5 Bluetooth® devices can be paired to the head unit at the same time. You can enjoy audio streaming just by switching the devices among your friends.
Automatically switch the paired 2 phones for incoming calls.
Also include better quality reception using the Wideband Speech Hands-free Profile 1.6.
Download the free app “KENWOOD Remote“.
You can change audio sources or adjust audio settings like
“Time Alignment” or “13-Band EQ” from your smartphone.
Listen to popular music applications and music stored on your device with basic audio controls.
* Native music app control services like Spotify have now been discontinued by the service provider, so please select the Bluetooth audio source for music playback and basic control.
USB Connectivity for smart devices and compatible USB mass storage devices.
You can play back from USB devices audio and video files compressed in various formats.
| Video Codec | Playable up to |
|---|---|
| MPEG1 | 720 × 576 |
| MPEG2 | 720 × 576 |
| DivX® | 720 × 576 |
USB Video Output to Rear Monitor
Max 1.5A quick charge for selected Android
1.0A charge for iPhone
| Music Codec | Playable up to |
|---|---|
| FLAC | 96kHz / 24bit |
| WAV | 44.1kHz / 24bit |
Two Camera inputs for Front and Rear cameras.
Parking guide lines appear on any standard backup camera image,
making parking safer and easier.
The receivers can be installed in most Japanese and Korean vehicles easily.
Learn More
To meet your high expectations.
for 3rd Party's Navigation Unit
A 200mm escutcheon is included to help make the fit seamless in many of the latest model Japanese and other select cars.
Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.
| Monitor | Picture size | 6.2 inches(diagonal) wide |
|---|---|---|
| Section | W x H | 137.5mm x 77.2mm |
| Display system | Transparent TN LCD panel | |
| Drive system | TFT active matrix system | |
| Number of pixels | 1,152,000 | |
| 800H x 480V x RGB | ||
| Effective pixels | 99.99% | |
| Pixel arrangement | RGB striped arrangement | |
| Back lighting | LED | |
| DVD | D/A Converter | 24Bit |
| Section | Audio Decoder | Linear PCM |
| Dolby Audio | ||
| MP3/WMA/AAC(.m4a)/WAV | ||
| Video Decoder | MPEG1/MPEG2/DivX/JPEG | |
| Wow & Flutter | Below Measurable Limit | |
| Frequency response 96k Sampling | 20 - 22,000 Hz | |
| 48k Sampling | 20 - 22,000 Hz | |
| 44.1k Sampling | 20 - 20,000 Hz | |
| Total harmonic distortion 1kHz | 0.010% | |
| Signal to Noise ratio | 90dB | |
| Dynamic range | 90dB | |
| DISC Format | DVD-Video/VIDEO-CD/CD-DA | |
| Sampling frequency | 44.1kHz/48kHz | |
| 96kHz | ||
| Quantifying bit number | 16/20/24bit | |
| USB I/F | USB Standard | USB2.0 Full Speed / High Speed |
| Section | Compatible Devices | Mass storage class |
| File System | FAT 16/32 | |
| Maximum Power Supply Current | DC5V (DC logo) = 1.5A | |
| D/A Converter | 24bit | |
| Audio Decoder | MP3/WMA/AAC(.m4a/.aac)/WAV/FLAC | |
| Video Decoder | MPEG1/MPEG2/DivX/JPEG | |
| Bluetooth | Technology | Bluetooth V3.0 |
| Section | Frequency | 2.402 - 2.480 GHz |
| RF Output Power (E.I.R.P.) | +4dBm (MAX), Power Class 2 | |
| Maximum Communication range | Line of sight approx.10m (32.8ft) | |
| Audio Codec | SBC/AAC | |
| Profile | HFP(Hands Free Profile) 1.6 | |
| A2DP(Advanced Audio Distribution Profile) 1.3 | ||
| AVRCP(Audio/Video Remote Control Profile) 1.5 | ||
| GAP(Generic Access Profile) | ||
| PBAP(Phonebook Access Profile) 1.2 | ||
| SDP(Service Discovery Profile) | ||
| SPP(Serial Port Profile) 1.2 | ||
| FM | Frequency range | 87.5 MHz - 108.0 MHz |
| (Frequency step) | (50 kHz) | |
| Usable sensitivity | 6.2 dBf | |
| S/N:30 dB | 0.56 μV / 75 Ohms | |
| Quieting sensitivity | 15.2 dBf | |
| DIN S/N:46 dB | 1.58 μV / 75 Ohms | |
| Frequency response | 30 Hz - 15 kHz | |
| (±3.0 dB) | ||
| S/N (dB) | 68 dB(MONO) | |
| Selectivity | Over 80 dB(±400 kHz) | |
| Stereo separation | 40 dB(1 kHz) | |
| AM | Frequency range | 531 kHz - 1701 kHz |
| (Frequency step) | (9 kHz) | |
| Usable sensitivity | 28.5 μV | |
| Video | Color system of external video input | NTSC/PAL |
| External video input level (mini jack) | 1Vp-p / 75Ohms | |
| External audio max input level (mini jack) | 2V / 25kOhms | |
| Video Input level for Rear Camera (RCA jack) | 1Vp-p / 75Ohms | |
| Video Input level for Front Camera (RCA jack) | 1Vp-p / 75Ohms | |
| Video Output level (RCA jacks) | 1Vp-p / 75Ohms | |
| Analog RGB input | 0.7Vp-p / 75Ohms | |
| Audio | Maximum Power (Front&Rear) | 50Wx4 |
| Full Bandwidth Power (Front&Rear) | 22Wx4 | |
| (at less than 1%THD) | ||
| Preout level(V) | 4V / 10kOhms | |
| Preout Impedance(Ω) | =< 600 Ohms | |
| Speaker Impedance(Ω) | 4-8 Ohms | |
| Equalizer | ||
| BAND | 13Band | |
| Frequency(Hz) | 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k | |
| Gain | -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9 [dB] | |
| Q factor | 1.35/1.5/2.0 | |
| 2Way X'Over | ||
| Tweeter Frequency(Hz) | 1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k | |
| Gain | -8/-7/-6/-5/-4/-3/-2/-1/0 [dB] | |
| Front (HPF) Frequency(Hz) | Through/30/40/50/60/70/80/90/100/120/150/180/220/250 | |
| Slope | -6/-12/-18/-24 [dB/Oct.] | |
| Gain | -8/-7/-6/-5/-4/-3/-2/-1/0 [dB] | |
| Rear (HPF) Frequency(Hz) | Through/30/40/50/60/70/80/90/100/120/150/180/220/250 | |
| Slope | -6/-12/-18/-24 [dB/Oct.] | |
| Gain | -8/-7/-6/-5/-4/-3/-2/-1/0 [dB] | |
| SW (LPF) Frequency(Hz) | 30/40/50/60/70/80/90/100/120/150/180/220/250/Through | |
| Slope | -6/-12/-18/-24 [dB/Oct.] | |
| Phase | Normal/Reverse | |
| Gain | -8/-7/-6/-5/-4/-3/-2/-1/0 [dB] | |
| Position | ||
| 2Way: Front / Rear /Subwoofer Delay | 0 - 610cm (2.0cm Step) | |
| Gain | -8 to 0dB | |
| Subwoofer Level | -50 to +10dB | |
| General | Operating voltage | 12 V DC car battery |
| Installation Dimensions WxHxD | 178mm x 100mm x 162mm | |
| Weight Main unit | 1.8 kg | |
| (Trimplate : included) |
