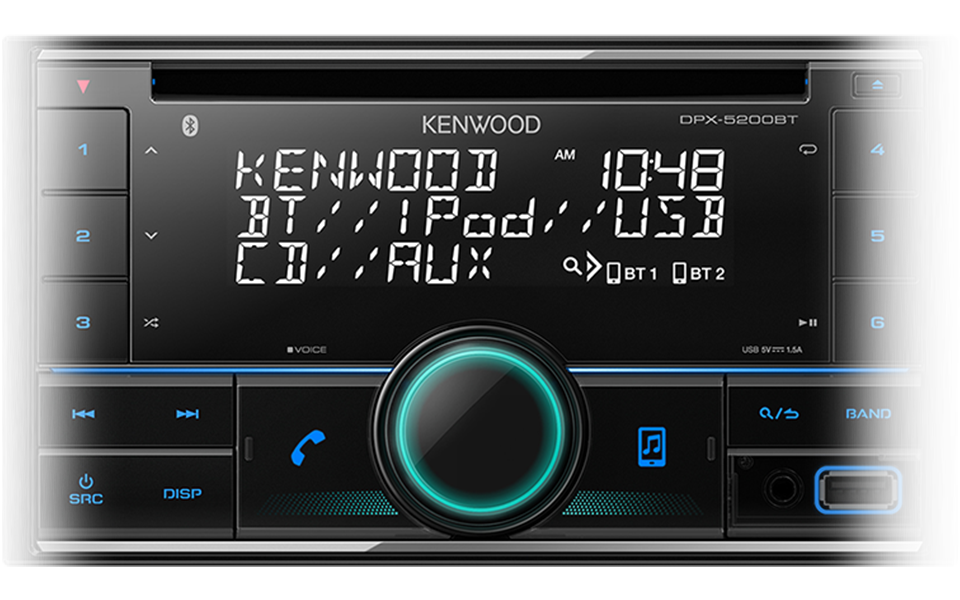

DPX-5200BTDual Din USB / CD Receiver
By connecting your smartphone and receiver wirelessly, your driving time will be more fun and convenient.
Sound quality enthusiasts will love the playback support of various types of music formats,including compatibility with FLAC files.
Simple sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.
Learn about exciting product features and highlights.
|Key Illumination / Volume knob Illumination/ LCD・LED Backlight||//|
|Built-in Bluetooth||2-Phone Hands Free / Music Mix / KENWOOD Remote App|
|USB Terminal||x 1|
|Audio Decoder||FLAC / WAV / AAC / MP3 / WMA|
|Equalizer / Digital Time Alignment / 3-Way X'Over||13 Band / Yes / Yes|
|Audio Preout||3.5V / 3Preouts|
Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.
Up to 5 Bluetooth® devices can be paired to the head unit at the same time. You can enjoy audio streaming just by switching the devices among your friends.
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
Download the free app “KENWOOD Remote“.You can change audio sources or adjust audio settings like
“Time Alignment” or “13-Band EQ” from your smartphone.
Compatible with a broad range of audio file formats such as FLAC and WAV, to MP3, WMA and AAC.
|Music Codec||Playable up to|
|FLAC||～96kHz / ～24bit|
|WAV||～44.1kHz / ～16bit|
|MP3||～48kHz / ～320kbps|
|WMA||～48kHz / ～192kbps|
|AAC||～48kHz / ～320kbps|
13-Band equalizer and DTA gives optimal tuning enhancements for the listener.
Easy front panel connection for your compatible USB- enabled devices. These include Mass Storage Class devices like iPods, smartphones, and USB flash drives. The USB input will allow you to charge and control the music playback of your select devices.
Bright variable color LEDs can be adjusted to match any color dash lighting.

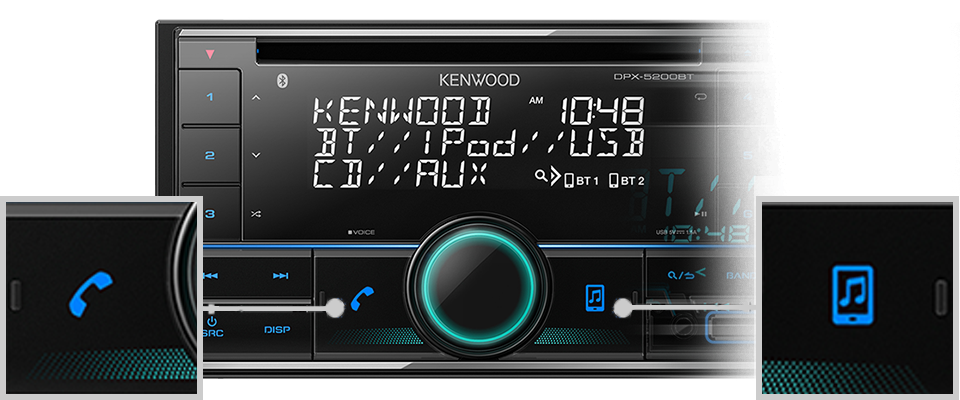

Direct Bluetooth keys allow you to access quickly to answering to and making a call, and entering Bluetooth Audio source.
The Vertical Alignment LCD display secures higher visibility during day-time drive.
A 200mm escutcheon is included to help make the fit seamless in many of the latest model Japanese and other select cars.
|FM||Frequency Range||87.5MHz to 108.0MHz(50kHz)|
|DIN S/N 46dB||(2.0μV/75Ω）|
|Frequency Response||30Hz to 15kHz|
|AM||Frequency Range||Band 1(MW) / 531kHz to 1602kHz(9kHz)|
|Band 2(SW1) / 2940kHz to 7735kHz(5kHz)|
|(Frequency step)||Band 3(SW2) / 9500kHz to 10135kHz / 11580kHz to 18135kHz (5kHz)|
|Channel Space Selection||Band 1 / 9kHz|
|Band 2/3 / 5kHz|
|Usable Sensitivity||29.0dBμ(28.2μV) : MW|
|S/N:20dB||30dBμ (32μV) : SW|
|Digital Filter(D/A)||8 Times OverSampling|
|Spindle Speed||500 to 200rpm (CLV)|
|Wow & Flutter||Below Measurable Limit|
|Frequency Response||20Hz to 20kHz(±1dB)|
|Total Harmonic Distortion||0.01%(1kHz)|
|S/N Ratio (dB)||97dB(1kHz)|
|MP3 Decode||Compliant with MPEG-1/2 Audio Layer-3|
|WMA Decode||Compliant with WINDOWS MEDIA AUDIO|
|AAC Decode||AAC-LC ".aac" files|
|Preout Level(mV)/Load -Unbalanced||3500mV/10kΩ|
|Speaker Impedance(Ω)||4 to 8Ω|
|USB I/F||USB||USB 1.1 / 2.0 High speed|
|File System||FAT12 / 16 / 32|
|Maximum Supply current||DC5V(DC logo) 1.5A|
|MP3 decode||Compliant with MPEG-1/2 Audio Layer-3|
|WMA decode||Compliant with Windows Media Audio|
|AAC Decode||AAC-LC ".aac", "m4a" files|
|FLAC Decode||FLAC file (Up to 24bit/96kHz)|
|AUX||Frequency Response||20Hz to 20kHz ±3dB|
|Input||Input Maximum Voltage||1000mV|
|Full Bandwidth Power||22Wx4|
|(at less than 1%THD)|
|Frequency Range||2.402 to 2.480GHz|
|RF Output Power (E.I.R.P.)||+4dBm (MAX), Power Class 2|
|Maximum Communication range||Line of sight approx.10m(32.8ft)|
|Profile||HFP 1.7.1 (Hands Free Profile)|
|SPP(Serial Port Profile)|
|PBAP(Phonebook Access Profile)|
|A2DP(Advanced Audio Distribution Profile)|
|AVRCP 1.6.1 (Audio/Video Remote Control Profile)|
|GENE||Operating voltage||12V DC car battery|
|Installation Size (W)||178(mm)|
|Net Weight (Trim plate and Mounting sleeve: Included)||1.3(kg)|
