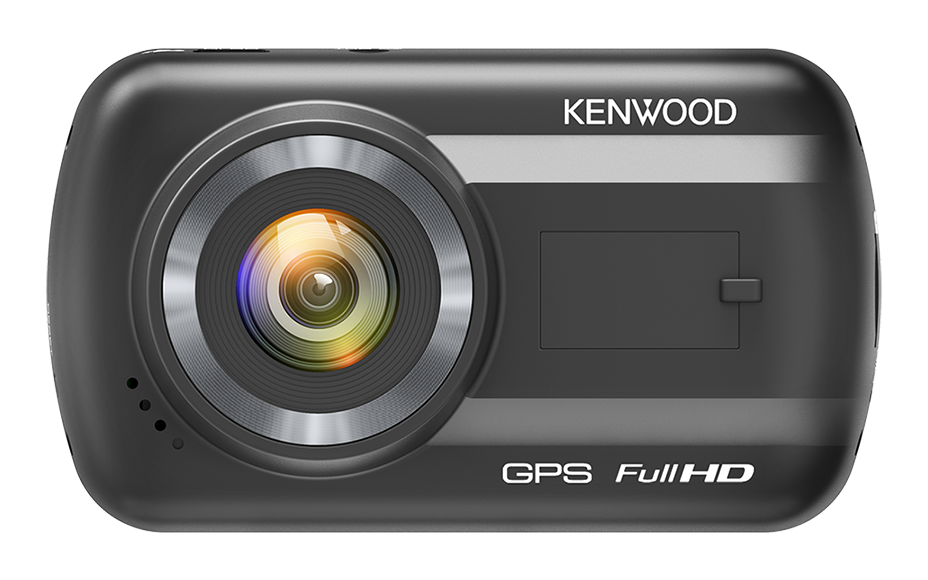

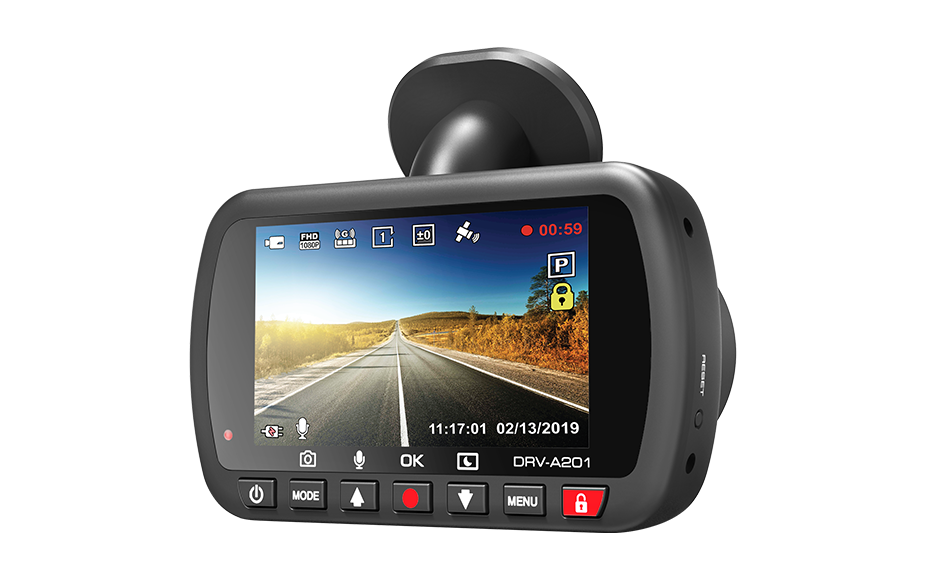

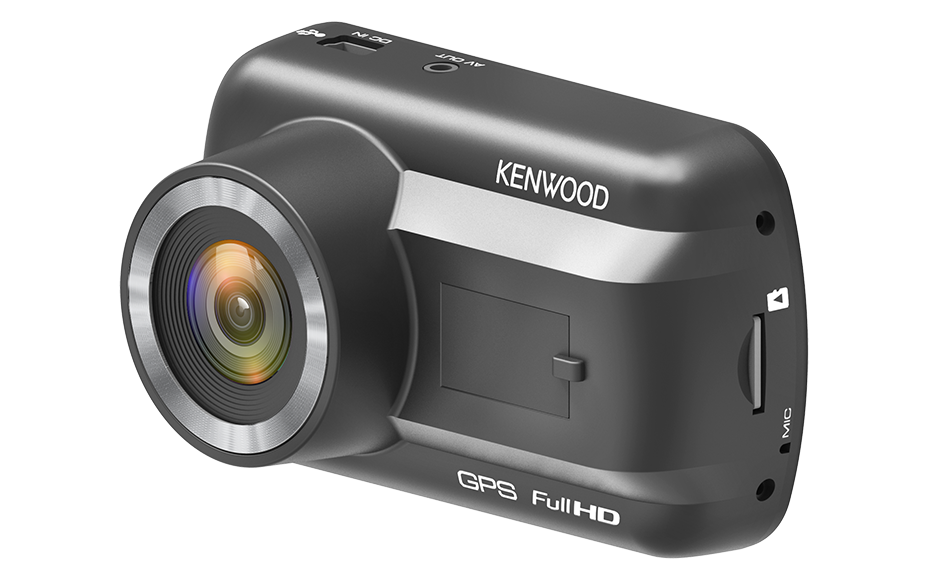

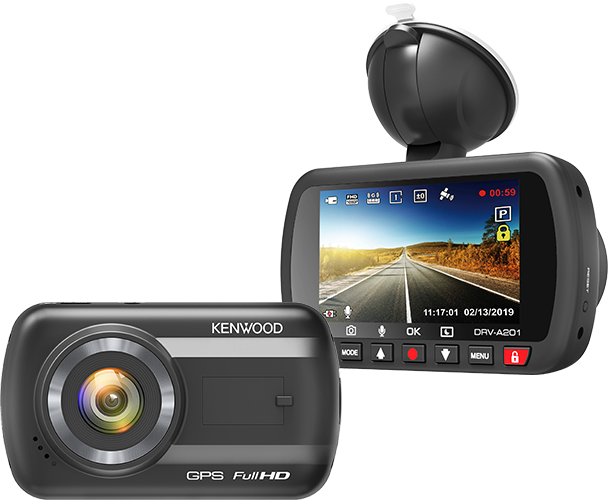

DRV-A201

High Definition Recording with Easy Control

 Camera is equipped with 2.0 Megapixel Full Hi-Vision recording

  • DRV-A201 Zoom

    Dashboard Camera

    DRV-A201
    • 2Megapixel Recording

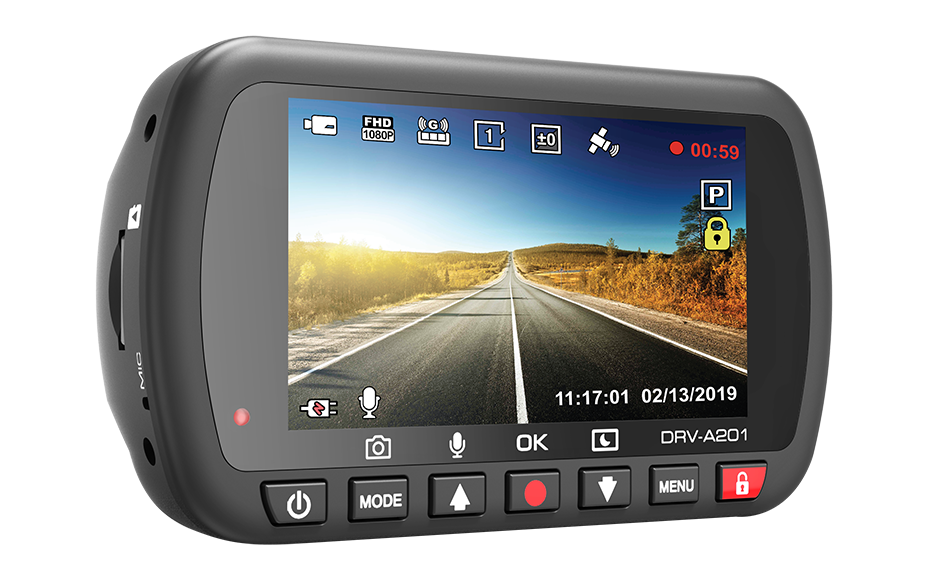

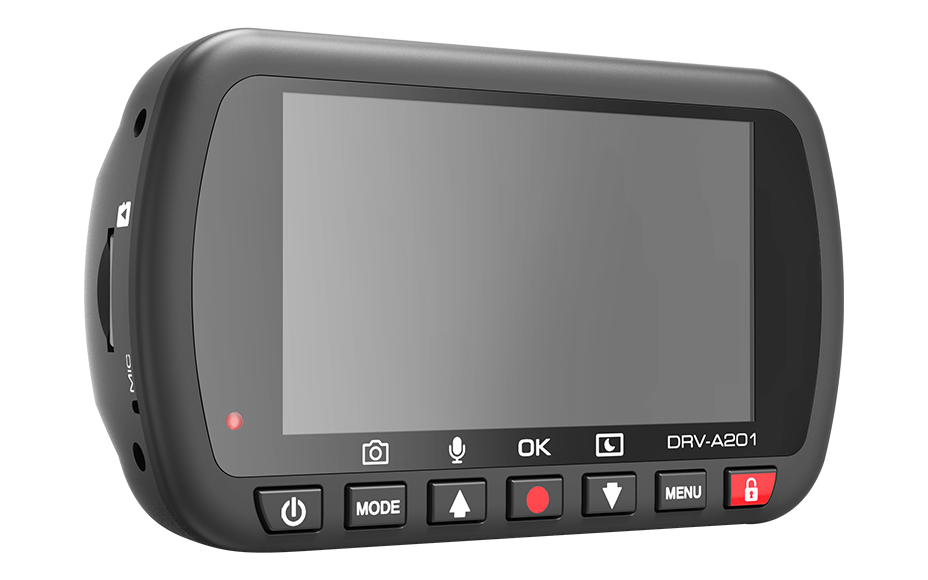

    • 2.7" LCD Display
    • Built-in G-Sensor
    • Built-in GPS
    • Parking Mode Recording
    • 16GB microSD Included
    • 12V/ 24V Compatible
    • Quick Release
    Features Icons

    *Parking Mode Recording requires optional CA-DR1030 Hardwaire Kit

2 Megapixel Recording

2 Megapixel Recording provides High Resolution Recording

2 Megapixel High Definition recording captures clear video even while driving.

full hivision
number plate
Capable of capturing a clear image of a license plate

Supports micro SDXC/SDHC

MicroSDXCME
  • microSDXC/SDHC card 8GB to 128GB supported.
  • SD Card Recorded File Capacity
  • 8GB Micro SD = 60 mins (1 minute x 60 recordings)
  • 16GB Micro SD = 120 mins (1 minute x 120 recordings)
  • 32GB Micro SD = 240 mins (1 minute x 240 recordings)
  • 64GB Micro SD = 480 mins (1 minute x 480 recordings)
  • 128GB Micro SD = 960 mins (1 minute x 960 recordings)
  • *Based on default recording settings.

12V & 24V Compatible

Camera works with both 12V and 24V applications.

Enhanced Vehicle Monitoring & Protection

G-sensor & Built-in GPS

The DRV-A201 is equipped with a G-Sensor designed to detect a collision, and GPS that records speed, latitude, and longitude.
G-sensor
Parking Mode Recording

Parking Mode Recording

When the vehicle is parked and turned off, parking mode becomes active.  If the vehicle is subject to a collision or other physical impact, the cameras power on and automatically records 30 seconds of video.
PowerCable
*Parking Mode Recording requires opptional hardwaire kit: CA-DR1030

Super Capacitor

If power is lost, this prevents the recorded video file from being corrupted, as it provides enough power to allow the video file to close properly.
SuperCapacitor

Quick Release

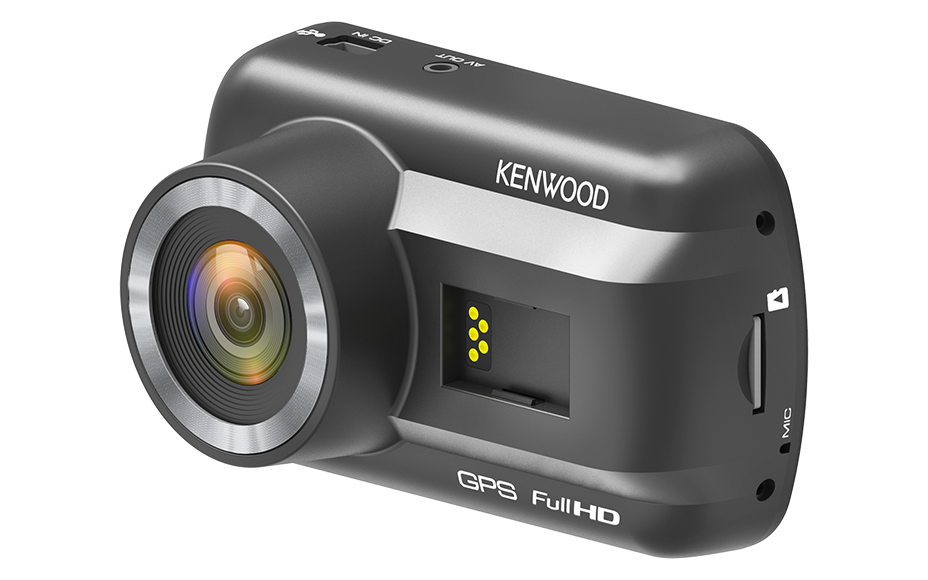

Magnetic Mount

Quickly place and remove the dash cam.
No cable to connect or disconnect from the dash cam.
Magnetic Mount

2 Mounts Included

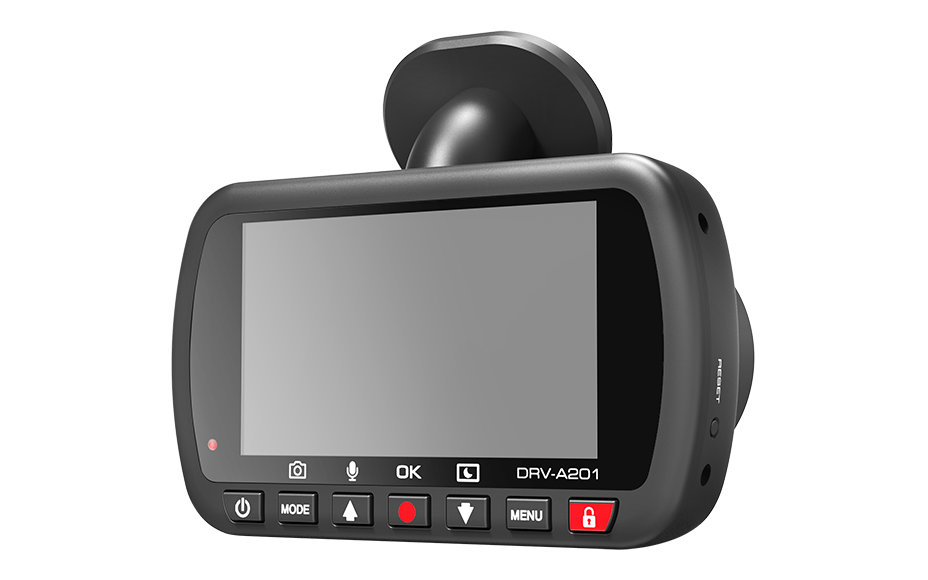

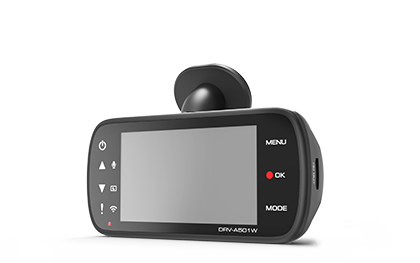

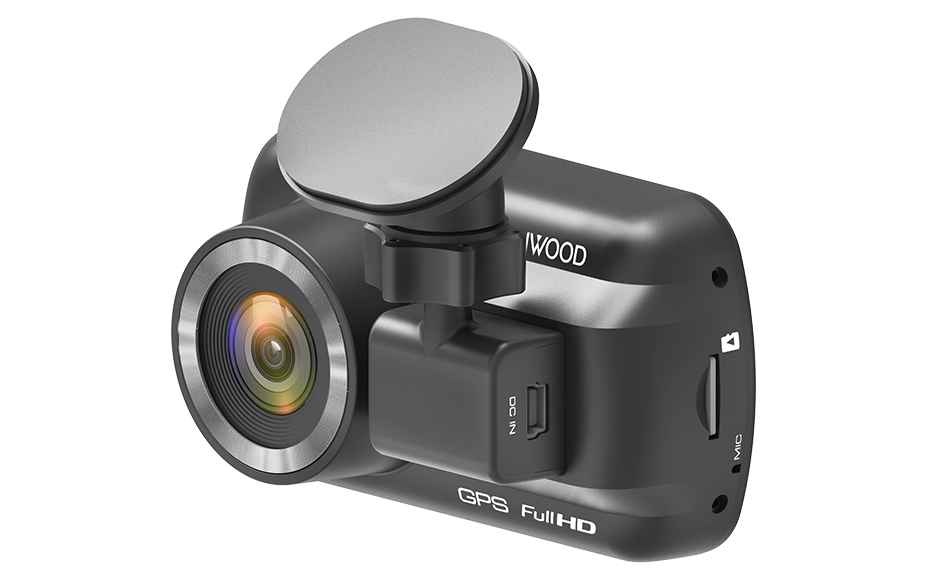

3M Tape Style
3M Tape Style

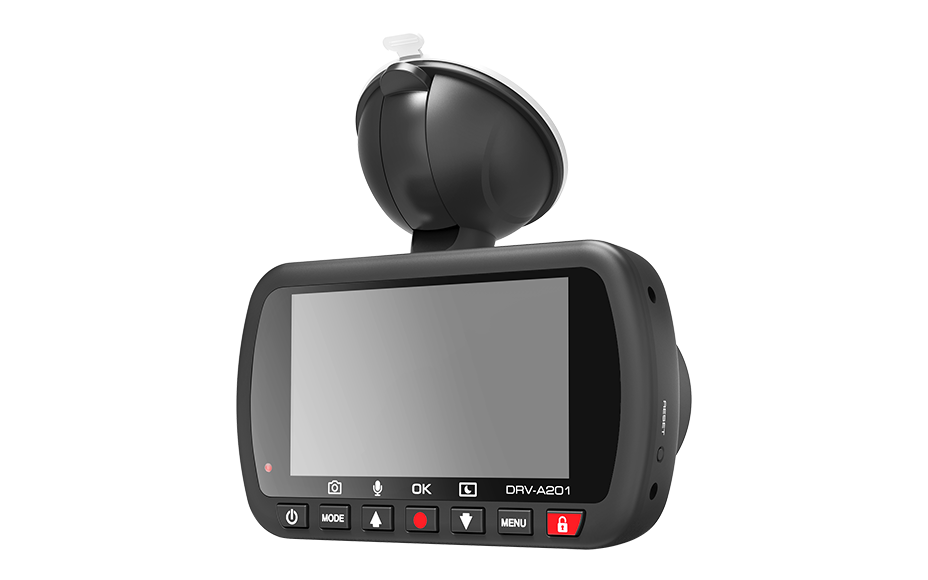

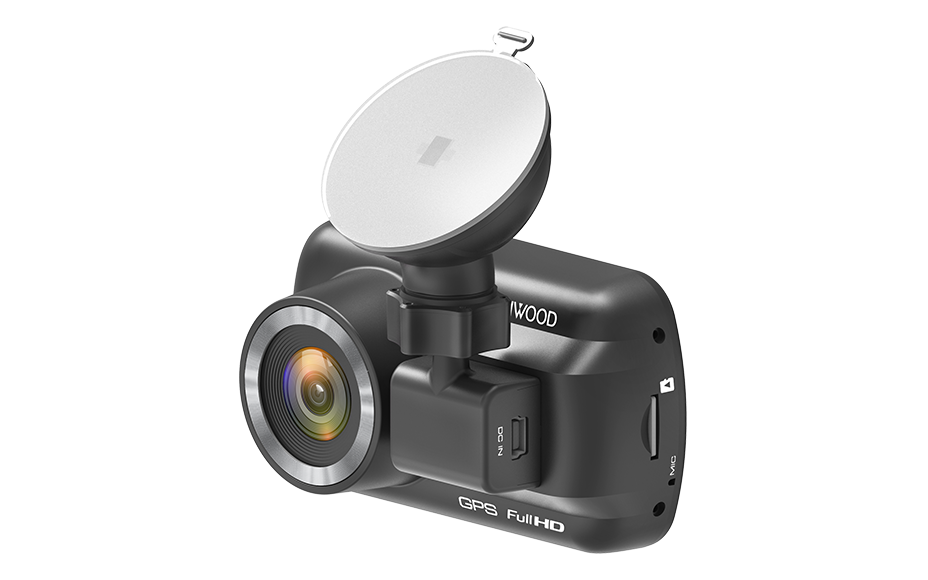

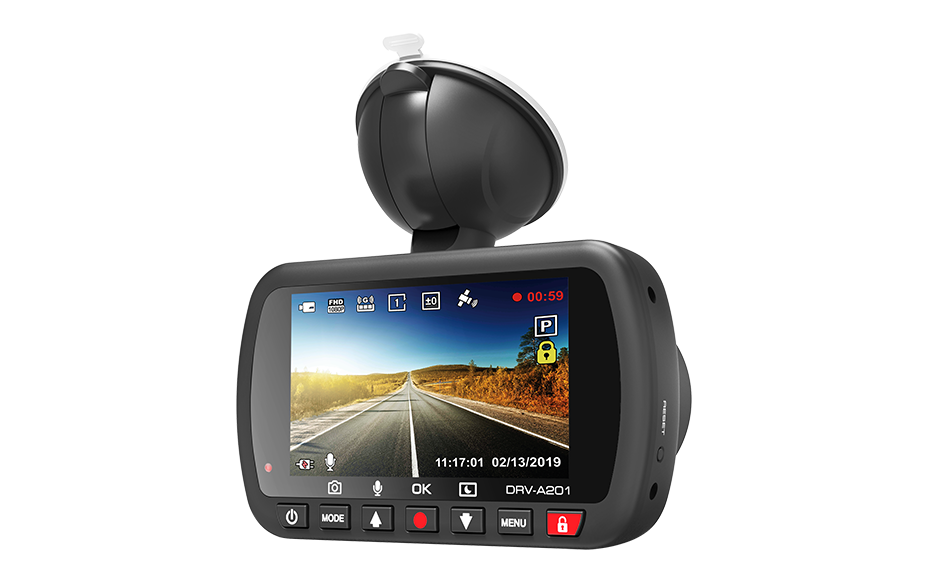

Suction Cup Style
Suction Cup Style

page top

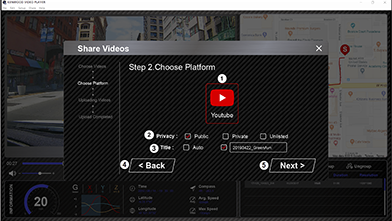

Youtube

DRV-A201

« scroll
DRV-A201
Hard Specification Screen size 2.7inches full color TFT
Operating voltage 5V / 2A; 12-24V DC
Current Consumption 320mA
Super Capacitor yes
Button Tact
Wireless Link -
Microphone Built-in
Speaker Built-in
GPS Receiver Built-in
G-sensor Built-in
Collision sensitivity -4.0G to +4.0G (0.1G Step)
Image sensor 1/2.7 CMOS sensor
Valid Pixel 2M Pixels (1920x1080)
Number of Pixel 2M Pixels (1920x1080)
Angles of view Horizontal : 115° Vertical : 61° Diagonal :136°
Lens rotation -
Image reversal (Upside down) Yes
Lens F1.8
Polarization Filter No
Operating temperature -10℃ to +60℃
Noise Protection yes
OSD Menu Language
Inmplemented languages EN/DE/FR/NL /IT/ES/PT/RU /PL/CZ/RO
Recording Specification Recording resolution 1920 x 1080 Full HD
Frame rate 30FPS
HDR yes
WDR -
Recording Mode 1 / 3 / 5 min
Voice recording yes(ON/OFF）
Video format H.264 / MPEG-4 AVC
Audio format Linear PCM
Picture format JPEG (Max.1920 x 1080)
Recording media microSDXC/SDHC card 8GB to 128GB Class10
Port DC-IN mini USB-B type
AV Out/HD Out MiniJack
AV In (Rear Cam) -
SD Slot microSD
Size Dimensions WxHxD (Main unit) 88mm*51mm*37.5mm
Dimensions WxHxD (Bracket attached) 88mm*89.8mm*37.5mm
Weight　(Main unit) 78g
Bundled Accessory SD Card microSD 16GB (Class 10)
DC Cable Cigar Lighter Car Charger Adapter (12-24V, 4m)
Car Mount Bracket J Type Mount(Build-in GPS) Mounting Bracket (3M Tape & Suction Cup)
Manual /Warranty card Quick Start Guide Caution & Certification Warranty Card(instruction manual on web)
USB Cable yes/110cm
Spare 3M Adhesive Pad yes/2pcs
Cable Clips yes/4pcs
Optional Accessory Hardwire Kit CA-DR1030

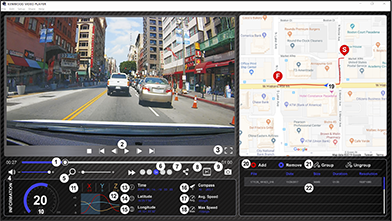

Application PC Viewer Windows/Mac
Requirement for Windows Windows 10, 8.1, 7
Requirement for Mac Mac OS X 10.11 (El Capitan) or later
Languages for PC Viewer EN/DE/FR/NL /IT/ES/PT/RU /PL/CZ/RO
Smartphone App -
Requirement for Android -
Requirement for iOS -
Languages for Smartphone App -
