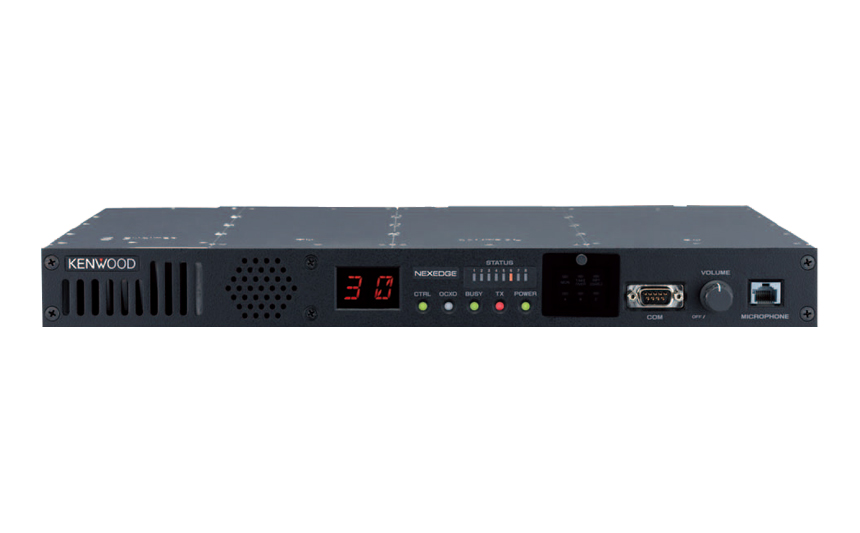

NEXEDGE® VHF/UHF Digital & FM Base Units NXR-700/800/900

General Features

136-154, 146-174 MHz
400-430, 450-480, 480-512 MHz
5 W Exciter Output
Repeater Operation
Duplex / Simplex Base Operation
30 CH Scanning Base (Conventional)
Two-Digit LED Display
LED Status Indicators
6 Programmable Function Keys
0.3 W Front Panel Speaker
3 W External Speaker Audio
Volume Control
Program / Modem Interface
Remote Termination Interface
Programmable AUX I/O's
DTMF Front Panel PF Key Control
DTMF AUX Output Control
DTMF AUX Input Monitoring
KPG-109D Windows® FPU
Flash Firmware Upgrading


NXDN® Digital Air Interface
NXDN® Scrambler Included
6.25 & 12.5 kHz Channels
UID & GID Validation
NXR Over-the-Air Alias
KXK-3 OCXO Option

Digital-Conventional Mode

16 RAN Repeater Controller Built-in
1,000 GIDs Per Site
1,000 UIDs Per Site
Mixed FM/Digital Operation
Conventional IP Networks
Site Roaming Capability

Digital-Trunkking Option

3,000 GIDs Per Site
3,000 UIDs Per Site
30 Channels Per Site
Telephone Interconnect Option
Transmission Trunked Mode
Message Trunked Mode
Busy Call Queuing
Call Que Pre-emption
Late Entry (UID & GID)
Control / Traffic Channel Switching
Control Channel Rotation
Failsoft Mode
NXDN® Traffic Channel Sharing
2 MB Call/Activity Memory
Compact Flash Memory Expansion
ESN Validation

Multi-Site IP Network Option

48 Site Trunked IP Network
60,000 GIDs Per Network
60,000 UIDs Per Network
NEXEDGE® Trunked Features
Ethernet Network Interface
IP LAN/WAN Connectivity
Auto-Roaming / Registration
Wide Area All Group Call
Virtual Private Network
Group Registration
Use of Off-the-Shelf 10 Base-T/100
Base-TX Ethernet Switching & Routers

KPG-110SM System Manager

Trunked Sites & IP Network Systems Only
Windows® 2000/XP/Vista®/7Compatible
USB Secure Key Access
Direct, Dial-Up & IP Connectivity
Subscriber Privileging
127 UID/GID Class-of-Service Entries
5000 Fleets (UID/GID User Lists)
Telephone Call Limits
Group Call Inter-Site Limits
Remote Site Programming
Real-Time Activity Monitoring
NXR/Network Interface Diagnostics
Call Logging / Event Download
Remote System Firmware Updates

FM Modes-General

25 & 12.5 kHz Channels
Encryption/ANI Board Control

FM Conventional Mode

16 QT/DQT Repeater Control Built-in
Hang Timer / Time Out Timer / CW ID
External FM Controller Interface
EIA Voter Tone Generation

FM Trunked Mode

External LTR® Controller Interface
External MPT Controller Interface
