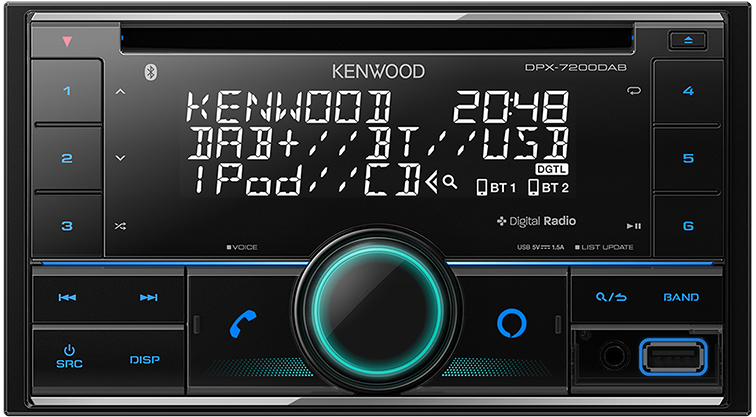

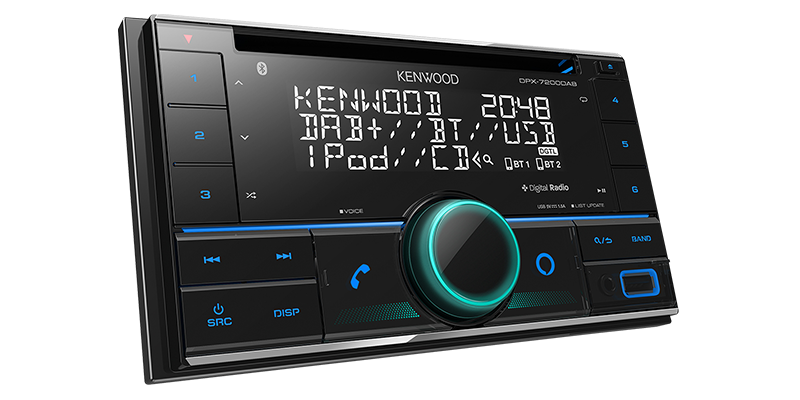

DPX-7200DABDual Din USB / CD Receiver
By connecting your smartphone and receiver wirelessly,
your driving time will be more fun and convenient.
You can talk to Amazon Alexa on your Kenwood Receivers. With Alexa Built-in, you can ask to play music, place calls, listen to audiobooks, hear the news, check the weather, control smart home devices, get directions, find parking, and more - all while you keep your hands on the wheel and eyes on the road.

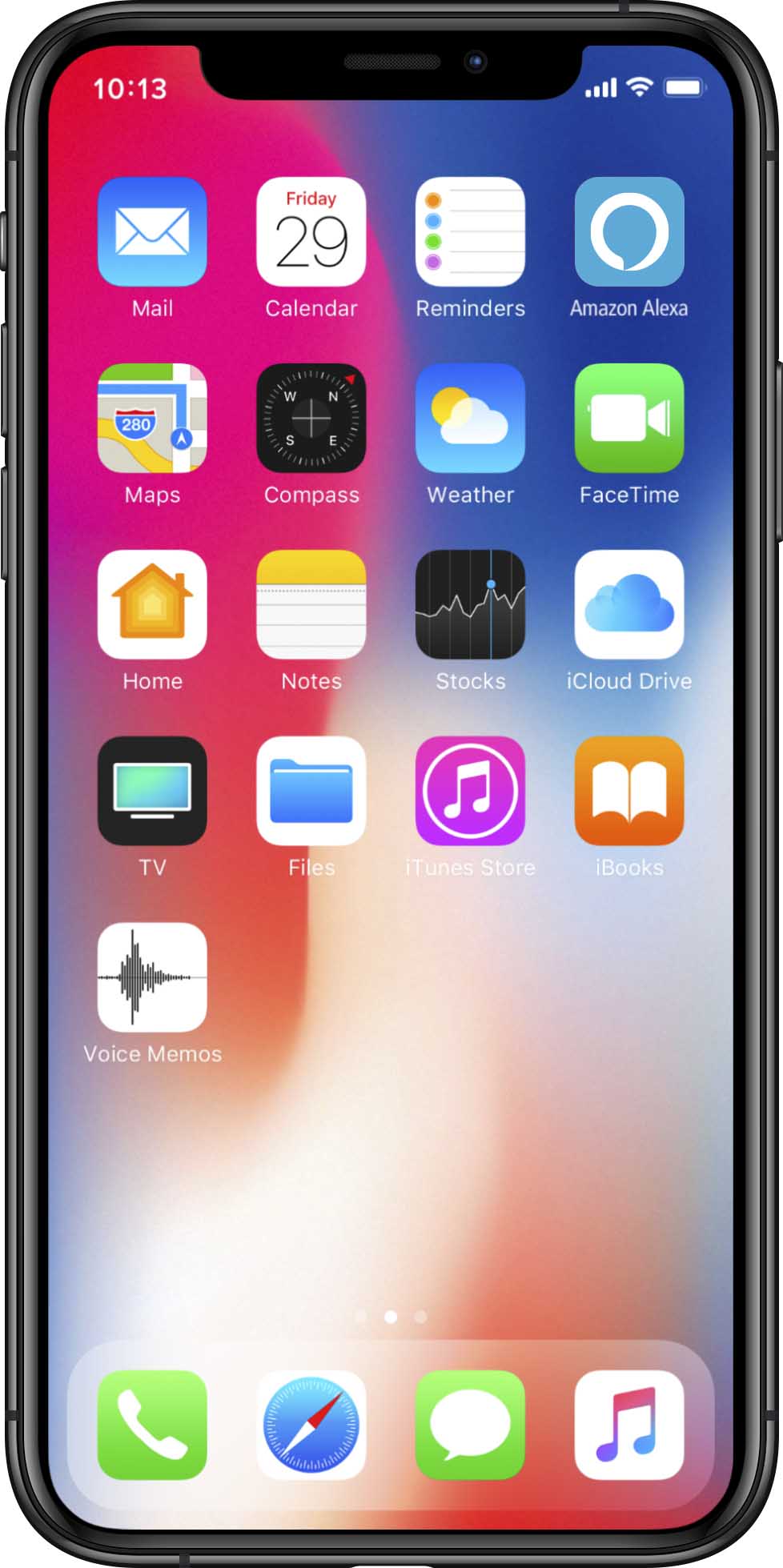

Download the Amazon Alexa app from Apple App Store® or Google Play™ to set up Alexa on your KENWOOD RECEIVER. Then, press the Alexa button on the receiver to ask “What's in the news?”
* For setup instructions and more information, visit https://www.kenwood.com/car/app/amazon_alexa/eng/
Amazon Alexa Key
Up to 5 Bluetooth® devices can be paired to the head unit at the same time. You can enjoy audio streaming just by switching the devices among your friends.
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
Download the free app “KENWOOD Remote“.You can change audio sources or adjust audio settings like “Time Alignment” or “13-Band EQ” from your smartphone.
Listen to popular music applications and music stored on your device with basic audio controls.
* Native music app control services like Spotify have now been discontinued by the service provider, so please select the Bluetooth audio source for music playback and basic control.
Sound quality enthusiasts will love the playback support of various types of music formats,
including compatibility with FLAC files. Simple sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.
Compatible with a broad range of audio file formats from FLAC and WAV, to MP3, WMA and AAC.
| Music Codec | Playable up to |
|---|---|
| FLAC | 96kHz / 24bit |
| WAV | 44.1kHz / 16bit |
| AAC | 48kHz / 320kbps |
| MP3 | 48kHz / 320kbps |
| WMA | 48kHz / 192kbps |
13-Band equalizer and DTA gives optimal tuning enhancements for the listener.
Easy front panel connection for your compatible USB- enabled devices. These include Mass Storage Class devices like iPods, smartphones, and USB flash drives. The USB input will allow you to charge and control the music playback of your select devices.
Bright variable color LEDs can be adjusted to match any color dash lighting.
You can adjust the front panel illumination into 3 separate color zones.
A 200mm escutcheon is included to help make the fit seamless in many of the latest model Japanese and other select cars.
| CD Player | Yes |
|---|---|
| Key Illumination / Volume knob Illumination/ LCD・LED Backlight |  // |
| Built-in Bluetooth | 2-Phone Hands Free / Music Mix / KENWOOD Remote App |
| USB Terminal | x 1 |
| Audio Decoder | FLAC / WAV / AAC / MP3 / WMA |
| Equalizer / Digital Time Alignment / 3-Way X'Over | 13 Band / Yes / Yes |
| Audio Preout | 3.5V / 3Preouts |
| Remote Controller | Optional |
Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.
| FM | Frequency Range(MHz) | 87.5MHz to 108.0MHz(50kHz) |
|---|---|---|
| (Frequency step) | ||
| Usable Sensitivity | 6.2 dBf | |
| S/N:30dB | (0.56μV/75Ω) | |
| Quieting Sensitivity | 15.2 dBf | |
| DIN S/N 46dB | (1.58μV / 75Ω ) | |
| Frequency Response | 30Hz to 15kHz | |
| (±3.0dB) | ||
| S/N(dB) | 68.0dB(MONO) | |
| Stereo Separation | 40dB(1kHz) | |
| MW(AM) | Frequency Range(kHz) | 531kHz - 1701kHz |
| (Frequency step) | (9kHz) | |
| Usable Sensitivity | 29.1dBμ(28.5μV) : MW | |
| (S/N 20dB) | ||
| DAB | Frequency Range | BAND III= 174.928MHz to 239.200MHz |
| Sensitivity | -100dBm | |
| S/N | 90dB | |
| DAB | Connector type | SMB |
| Antenna | Output Voltage | DC 12V |
| Connector | Maximun Current | <100mA |
| CD | Laser Diode | GaAlAs |
| Digital Filter(D/A) | 8 Times OverSampling | |
| Spindle Speed | 500 to 200rpm (CLV) | |
| Wow & Flutter | Below Measurable Limit | |
| Frequency Response | 20Hz to 20kHz(±1dB) | |
| Total Harmonic Distortion | 0.01%(1kHz) | |
| S/N Ratio (dB) | 96dB(1kHz) | |
| Dynamic Range | 91dB | |
| Channel Separation | 84dB | |
| MP3 Decode | Compliant with MPEG-1/2 Audio Layer-3 | |
| WMA Decode | Compliant with WINDOWS MEDIA AUDIO | |
| AAC Decode | AAC-LC ".aac" files | |
| WAV Decode | - | |
| Preout Level(mV)/Load -Unbalanced | 3500mV/10kΩ | |
| Preout Impedance(Ω) | =<600Ω | |
| Speaker Impedance(Ω) | 4 to 8Ω | |
| USB I/F | USB | USB 1.1 / 2.0 High Speed |
| File System | FAT12 / 16 / 32 | |
| Maximum Supply current | DC5V(DC logo) 1.5A | |
| MP3 Decode | Compliant with MPEG-1/2 Audio Layer-3 | |
| WMA Decode | Compliant with Windows Media Audio | |
| AAC Decode | AAC-LC ".aac" files, m4a" files | |
| WAV Decode | Linear-PCM | |
| FLAC Decode | FLAC file (Up to 24bit/96kHz) | |
| AUX | Frequency Response | 20Hz to 20kHz ±3dB |
| Input | Input Maximum Voltage | 1000mV |
| Input Impedance | 30kΩ | |
| AMP | PWR(MAX) | 50Wx4 |
| Full Bandwidth Power | 22Wx4 | |
| (at less than 1%THD) | ||
| TONE | Band1 | 62.5Hz ±9dB |
| Band2 | 100Hz ±9dB | |
| Band3 | 160Hz ±9dB | |
| Band4 | 250Hz ±9dB | |
| Band5 | 400Hz ±9dB | |
| Band6 | 630Hz ±9dB | |
| Band7 | 1kHz ±9dB | |
| Band8 | 1.6kHz ±9dB | |
| Band9 | 2.5kHz ±9dB | |
| Band10 | 4kHz ±9dB | |
| Band11 | 6.3kHz ±9dB | |
| Band12 | 10kHz ±9dB | |
| Band13 | 16kHz ±9dB | |
| Bluetooth | Version | Bluetooth 4.2 |
| Frequency Range | 2.402 to 2.480GHz | |
| RF Output Power (E.I.R.P.) | +4dBm (MAX), Power Class 2 | |
| Maximum Communication range | Line of sight approx.10m(32.8ft) | |
| Profile | HFP 1.7.1 (Hands Free Profile) | |
| SPP(Serial Port Profile) | ||
| PBAP(Phonebook Access Profile) | ||
| A2DP(Advanced Audio Distribution Profile) | ||
| AVRCP 1.6.1 (Audio/Video Remote Control Profile) | ||
| GENE | Operating voltage | 12V DC car battery |
| Installation Size (W) | 182(mm) | |
| (H) | 111(mm) | |
| (D) | 156(mm) | |
| Net Weight (Trim plate and Mounting sleeve: Included) | 1.6(kg) | |
