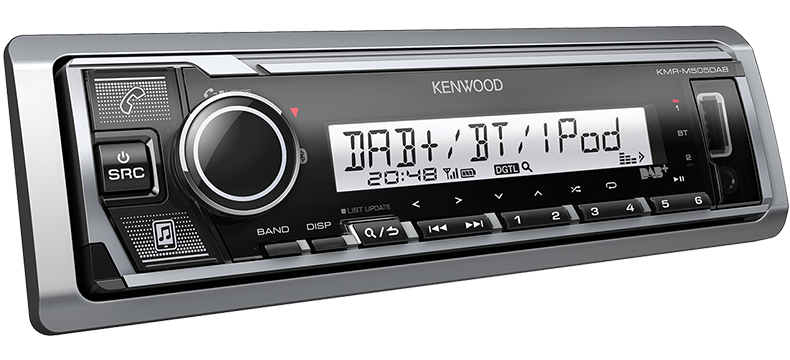

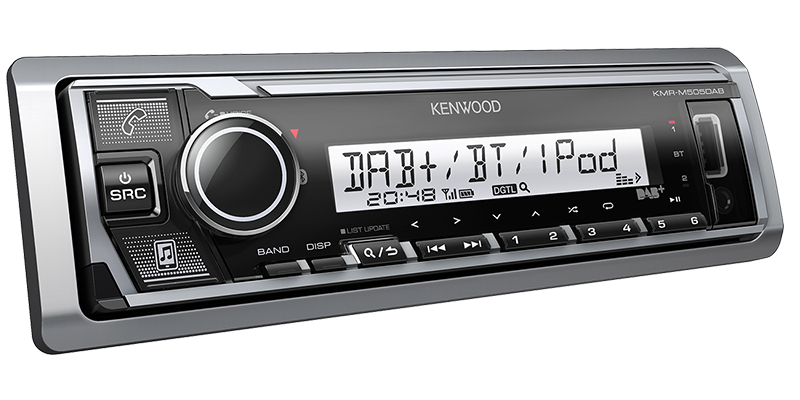

KMR-M505DABMarine, Digital Media Receiver with DAB Tuner & Bluetooth
By connecting your smartphone and receiver wirelessly,
your driving time will be more fun and convenient.
Up to 5 Bluetooth® devices can be paired to the head unit at the same time. You can enjoy audio streaming just by switching the devices among your friends.
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
Download the free app “KENWOOD Remote“.You can change audio sources or adjust audio settings like “Time Alignment” or “13-Band EQ” from your smartphone.
Sound quality enthusiasts will love the playback support of various types of music formats, including compatibility with FLAC files. Simple sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.
Compatible with a broad range of audio file formats from FLAC and WAV, to MP3, WMA and AAC.
| Music Codec | Playable up to |
|---|---|
| FLAC | ～96kHz / ～24bit |
| WAV | ～44.1kHz / ～16bit |
| MP3 | ～48kHz / ～320kbps |
| WMA | ～48kHz / ～192kbps |
| AAC | ～96kHz/ ～576kbps |
13-Band equalizer and DTA gives optimal tuning enhancements for the listener.
Easy front panel connection for your compatible USB- enabled devices. These include Mass Storage Class devices like iPods, smartphones, and USB flash drives. The USB input will allow you to charge and control the music playback of your select devices.
Bright variable color LED's can be adjusted to match your environment.
With audio receivers shorter in depth than any of our previous models, installation is made easier in a wider range of cars than ever before.
Direct Bluetooth keys allow you to access quickly to answering to and making a call, and entering Bluetooth Audio source.
The Vertical Alignment LCD display secures higher visibility during day-time drive.
Improved moisture resistance of the circuit boards to prevent corrosion.
| CD Player | No |
|---|---|
| Key Illumination / LCD - LED Backlight |  / |
| Built-in Bluetooth | Yes |
| USB Terminal | x1 |
| Audio Decoder | FLAC / WAV / AAC / MP3 / WMA |
| Equalizer / Digital Time Alignment / 3-Way X'Over | 13Band / Yes / Yes |
| Audio Preout | 2.5V / 2 Preouts |
| Remote Controller | No |
Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.
| FM | Frequency Range(MHz) | 87.5MHz to 108.0MHz |
|---|---|---|
| (Frequency step) | (50kHz) | |
| Usable Sensitivity | 6.2 dBf | |
| S/N30dB | (0.56μV/75Ω) | |
| Quieting Sensitivity | 15.2 dBf | |
| DIN S/N 46dB | (1.58μV / 75Ω ) | |
| Frequency Response | 30Hz to 15kHz | |
| (±3.0dB) | ||
| S/N(dB) | 68.0dB(MONO) | |
| Stereo Separation | 40dB(1kHz) | |
| MW (AM) | Frequency Range(kHz) | 531kHz to 1611kHz |
| (Frequency step) | (9kHz) | |
| Usable Sensitivity | 28.5μV | |
| (S/N 20dB) | ||
| LW | Frequency Range(kHz) | 153kHz to 279kHz |
| (Frequency step) | (9kHz) | |
| Usable Sensitivity | 45μV | |
| (S/N 20dB) | ||
| DAB | Frequency Range | BAND III= 174.928MHz to 239.200MHz |
| Sensitivity | -100dBm | |
| S/N | 90dB | |
| DAB Antenna Connector | Connector type | SMB |
| Output Voltage | DC 12V | |
| Maximum Current | <100mA | |
| USB I/F | USB | USB 1.1 / 2.0 Full speed |
| File System | FAT12 / 16 / 32 | |
| Maximum Supply current | DC5V(DC logo) 1.5A | |
| Frequency Response | 20Hz to 20kHz(±1dB) | |
| S/N Ratio (dB) | 99dB(1kHz) | |
| Dynamic Range | 93dB | |
| Channel Separation | 89dB | |
| MP3 Decode | Compliant with MPEG-1/2 Audio Layer-3 | |
| WMA Decode | Compliant with Windows Media Audio | |
| AAC Decode | AAC-LC ".aac", ".m4a" files | |
| WAV Decode | Linear-PCM | |
| FLAC Decode | FLAC file (Up to 96kHz/24bit) | |
| Preout Level(mV)/Load -Unbalanced | 2500mV/10kΩ (USB) | |
| Preout Impedance(Ω) | ≦600Ω | |
| Speaker Impedance(Ω) | 4 to 8Ω | |
| AUX Input | Frequency Response | 20Hz to 20kHz ±3dB |
| （4Ω,1kHz,10%THD） | 1000mV | |
| Input Impedance | 30kΩ | |
| AMP | PWR(MAX) | 50Wx4 |
| Full Bandwidth Power (at less than 1%THD) | 22Wx4 | |
| TONE | Band1 | 62.5Hz ±9dB |
| Band2 | 100Hz ±9dB | |
| Band3 | 160Hz ±9dB | |
| Band4 | 250Hz ±9dB | |
| Band5 | 400Hz ±9dB | |
| Band6 | 630Hz ±9dB | |
| Band7 | 1kHz ±9dB | |
| Band8 | 1.6kHz ±9dB | |
| Band9 | 2.5kHz ±9dB | |
| Band10 | 4kHz ±9dB | |
| Band11 | 6.3kHz ±9dB | |
| Band12 | 10kHz ±9dB | |
| Band13 | 16kHz ±9dB | |
| Bluetooth | Version | Bluetooth 3.0 |
| Frequency Range | 2.402 to 2.480GHz | |
| RF Output Power (E.I.R.P.) | +4dBm (MAX), Power Class 2 | |
| Maximum Communication range | Line of sight approx.10m(32.8ft) | |
| Profile | HFP 1.6 (Hands Free Profile) | |
| SPP(Serial Port Profile) | ||
| PBAP(Phonebook Access Profile) | ||
| A2DP(Advanced Audio Distribution Profile) | ||
| AVRCP 1.5 (Audio/Video Remote Control Profile) | ||
| GENE | Operating voltage | 12V DC car battery |
| Installation Size (W) | 182(mm) | |
| (H) | 53(mm) | |
| (D) | 100(mm) | |
| Net Weight (Trim plate and Mounting sleeve: Included) | 0.7(kg) | |
