KMM-BT325U
KMM-BT325U

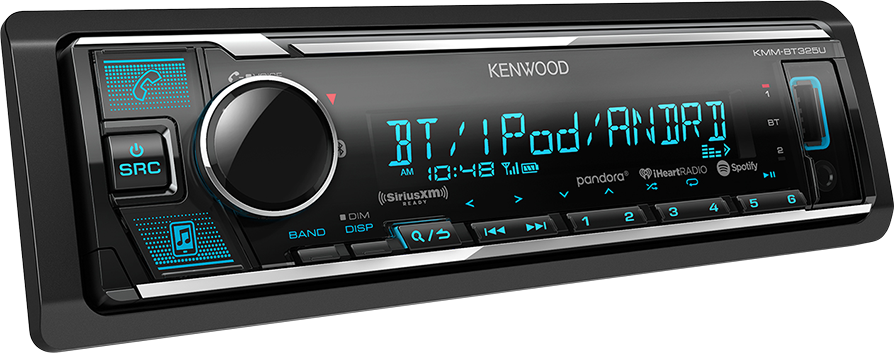

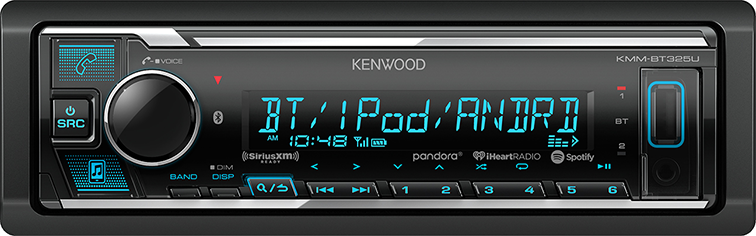

KMM-BT325UDigital Media Receiver with Bluetooth

  • Short Chassis
  • 255 Segment 1.5 Line Text Display
  • Bluetooth Audio direct access button
  • Variable Color Illumination
  • Front USB and AUX IN
  • 3 Preouts 2.5V

Features

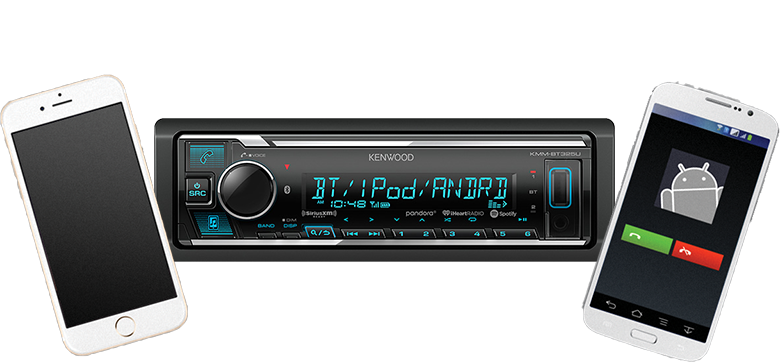

Smartphone Connectivity

Enjoy convenient control of popular apps like Spotify and Pandora,
built-in Bluetooth for hands-free calls and streaming music,
as well as the ability to use your smartphone like a wireless remote control.

Learn More

The Best Audio Experience

Sound quality enthusiasts will love the playback support of various types of music formats,
including compatibility with FLAC files.
Simple sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.

Learn More

Additional Features

Learn about exciting product features and highlights.

Learn More

The above “preferred” online retailers are authorized by KENWOOD.
They are listed here based upon meeting specific operational criteria and offer a very informative shopping experience,
along with exceptional customer service.

We want you to have the BEST product/support experience!

KENWOOD’s manufacturer’s warranty and any rebates offered by KENWOOD are not valid when purchased from an unauthorized dealer.
Buying from an unauthorized dealer also increases your risk of buying fake or counterfeit products.

Authorized KENWOOD Retailers

Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.

Where to Buy

KENWOOD Car Entertainment System

  • Music Mix

    Up to 5 Bluetooth® devices can be paired to the receiver at the same time. You can enjoy audio streaming just by switching the devices with your friends or family.

  • Dual Phone Connection

    While you are connected through Bluetooth, with a touch of a button you can switch between two phones.

  • Remote App

    A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).

  • Android Music Playback (AOA2)

    Supporting AOA2, install the KENWOOD Music Play app and connect your smartphone to the receiver via USB, and control your music directly from the receiver.

  • Android Rapid Charge

    Rapidly charge your compatible Android smartphone with the USB port, up to a maximum of 1.5A.

  • FLAC Supported

    Compatible with a broad range of audio file formats from high-resolution audio sources such as FLAC and WAV, to MP3, WMA and AAC.

  • Wireless Music Browsing (AVRCP 1.5 / 1.6)

    Search and select songs from your music collection through a Bluetooth connection.

  • Graphic EQ / Digital Time Alignment

    13-Band equalizer and DTA gives optimal tuning enhancements for the listener.

  • Drive EQ

    Boosts specific frequencies in the audio signal to overcome the negative impact of road noise.

  • Variable Color Illumination

    Bright variable color LEDs can be adjusted to match any color dash lighting.

  • Short Chassis

    With audio receivers shorter in depth than any of our previous models, installation is made easier in a wider range of cars than ever before.

« scroll
FM
Frequency Range 87.9MHz to 107.9MHz(200kHz)
AM
Frequency Range 530kHz to 1700kHz(10kHz)
AUDIO
Preout Level(mV)/Load       -Unbalanced 2500mV/10kΩ(USB)
Preout Impedance(Ω) ≦600Ω
Speaker Impedance(Ω) 4 to 8Ω
USB I/F
USB USB 1.1 / 2.0 Full speed
File System FAT12 / 16 / 32
Maximum Supply current DC5V(DC logo) 1.5A
Frequency Response 20Hz to 20kHz(±1dB)
S/N Ratio (dB) 99dB(1kHz)
Dynamic Range 93dB
Channel Separation 89dB
MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
WMA Decode Compliant with Windows Media Audio
AAC Decode AAC-LC ".aac", ".m4a" files
WAV Decode Linear-PCM
FLAC Decode FLAC file (Up to 96kHz/24bit)
AUX Input
Frequency Response 20Hz to 20kHz ±3dB
Input Maximum Voltage 1000mV
Input  Impedance 30kΩ
AMP
Maximum Power 50Wx4
Full Bandwidth Power(at less than 1%THD) 22Wx4
Bluetooth
Version Bluetooth 3.0
Frequency Range 2.402 to 2.480GHz
RF Output Power (E.I.R.P.) +4dBm (MAX),  Power Class 2
Maximum Communication range Line of sight approx.10m(32.8ft)
Profile HFP 1.6 (Hands Free Profile)
SPP(Serial Port Profile)
PBAP(Phonebook Access Profile)
A2DP(Advanced Audio Distribution Profile)
AVRCP 1.5 (Audio/Video Remote Control Profile)
GENERAL
Operating voltage(10.5~16v allowable) 12V DC car battery
Maximum Current Consumption 10A
Operational Temperature Range -10°C to +60°C
Installation Size  (WxHxD) 7-3/16" x 2-1/16" x 3-15/16"
Net Weight
(Trim plate and Mounting sleeve: Included)
1.4(lbs)
