DNX775RVS
DNX775RVS

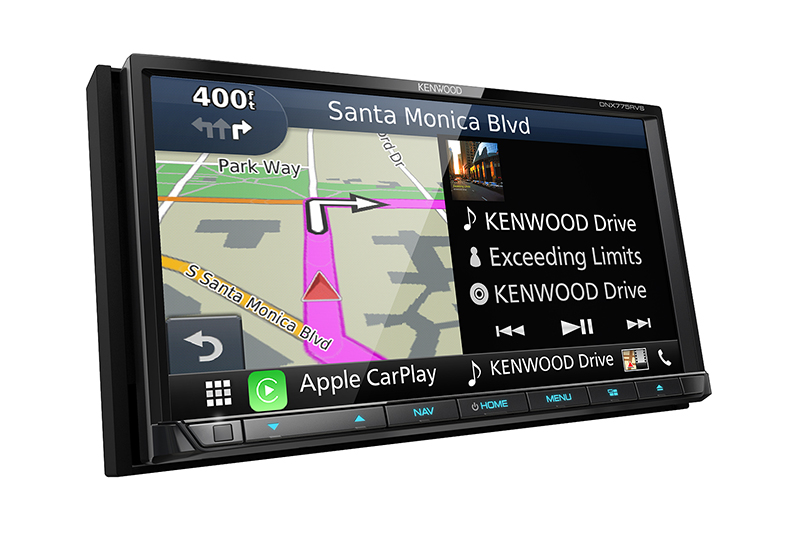

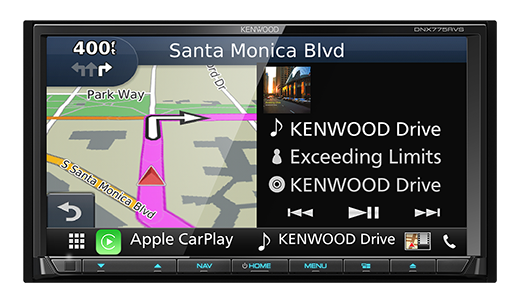

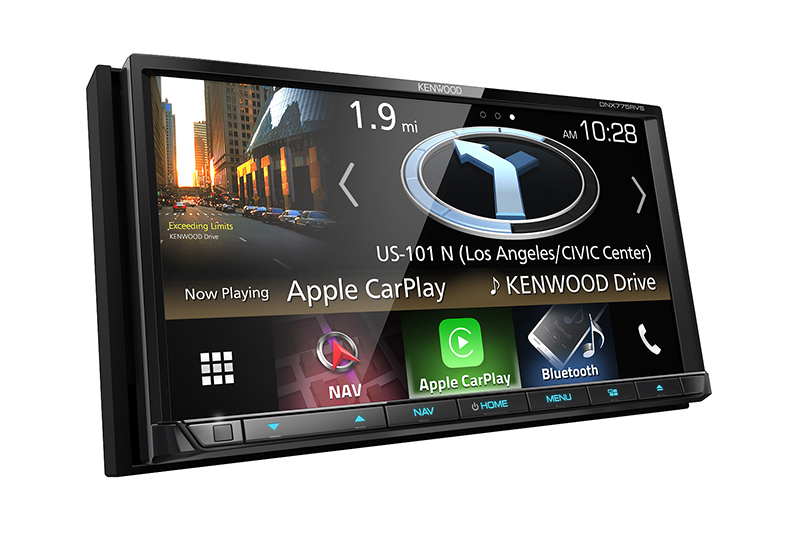

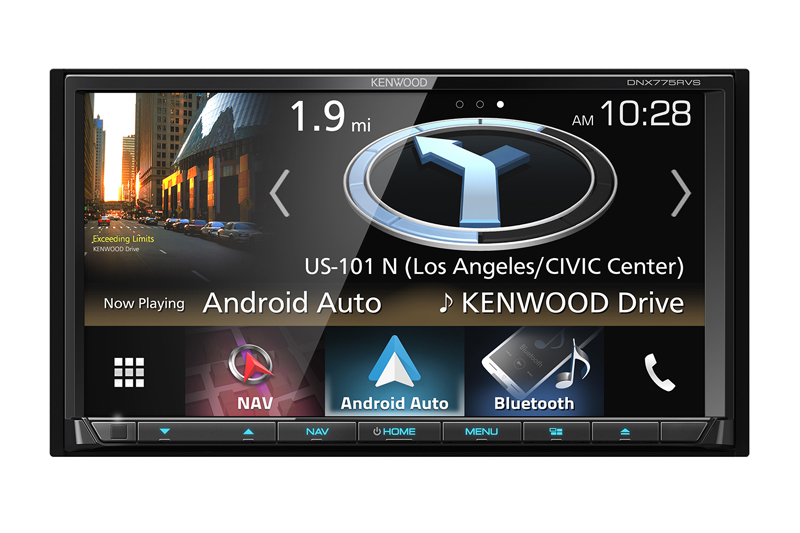

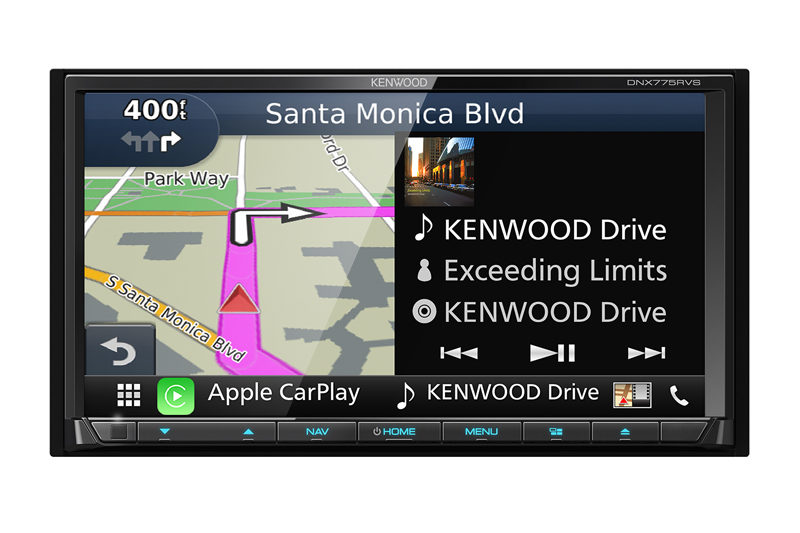

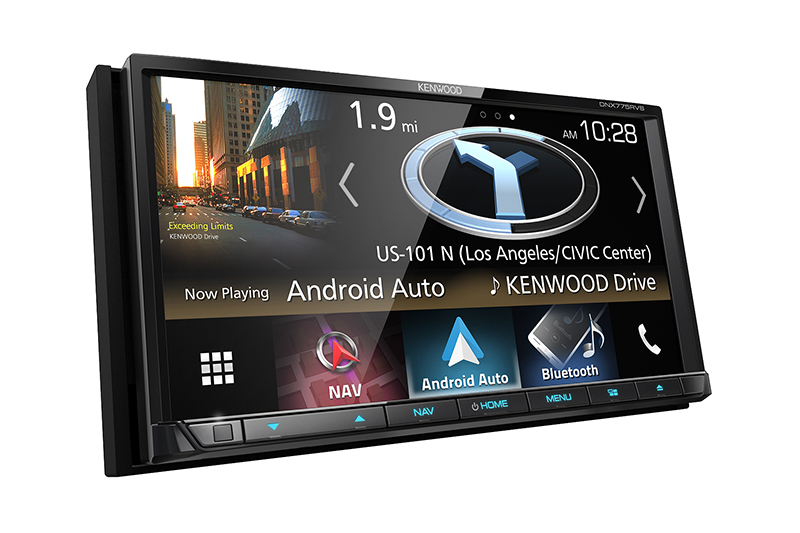

DNX775RVSRV/Truck AV Navigation System with Bluetooth

  • 6.95" WVGA Clear Resistive Touch Panel
  • High-Resolution Audio Ready
  • Apple CarPlay & Android Auto Ready
  • 3 Preouts 4V

Features

Product information video

Advanced Navigation

The DNX775RVS includes Garmin's advanced GPS RV/Truck navigation.
Simply enter your vehicle profile information (customizable by height,
width, weight and number of axles) and find RV/Truck accessible routes suitable for
the size and weight of your RV/Truck.

Learn More

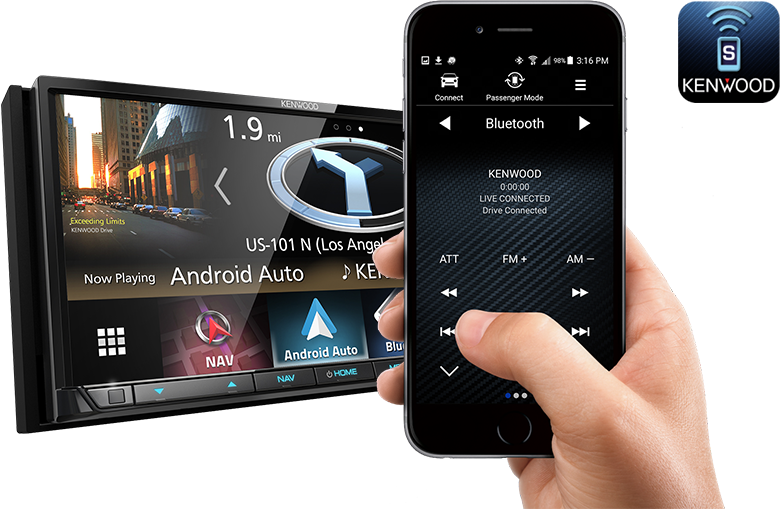

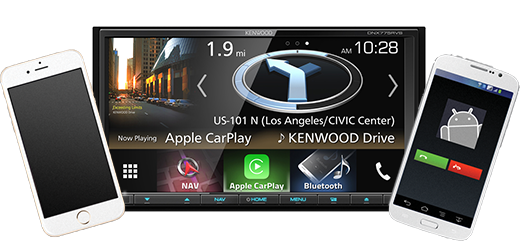

Smartphone Connectivity

Featuring seamless integration with Apple CarPlay, Android Auto, Spotify and Pandora,
the DNX775RVS allows smartphone users (iPhone & Android) to experience the ultimate in connectivity.
Download the KENWOOD Remote S app on your smartphone and you can control select receiver functions
just like a wireless remote control.

Learn More

The Best Audio Experience

Sound quality enthusiasts will love the playback support of Hi-Res Audio music,
featuring compatibility with FLAC and DSD files. Simple touch screen sound customization
is also available with its built-in 13 Band EQ and Digital Time Alignment.

Learn More

KENWOOD Car Entertainment System

Authorized KENWOOD Retailers

Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.

Where to Buy

  • Clear Resistive Touch Panel

    A clear screen designed to reduce glare that includes a resistive touch sensor for accurate control during operation

  • Dual Phone Connection

    While you are connected through Bluetooth, with a touch of a button you can switch between two phones.

  • Wireless Music Browsing (AVRCP 1.5 / 1.6)

    Search and select songs from your music collection through a Bluetooth connection.

  • Graphic EQ / Digital Time Alignment

    13-Band equalizer and DTA gives optimal tuning enhancements for the listener.

  • Drive EQ

    Boosts specific frequencies in the audio signal to overcome the negative impact of road noise.

  • FLAC/DSD Supported

    Compatible with various audio file formats from high-res FLAC and WAV, to MP3, WMA and AAC. Also plays DSD (Direct Stream Digital) files with a broader reproduction frequency band for life-like high-res sound reproduction.

  • Dash Cam Ready

    Dash Camera (DRV-N520) can be controlled and viewed from the touch screen.

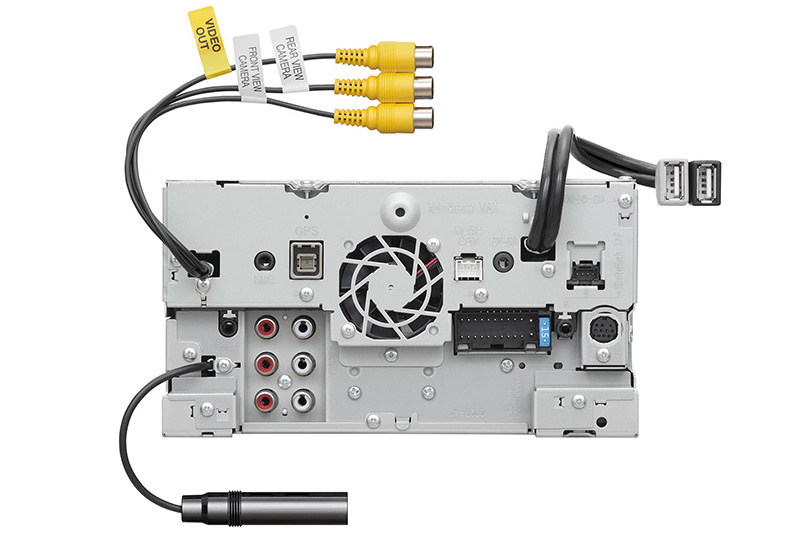

  • Dual Camera Input

    Two camera inputs for front and rear cameras. A rear view camera can be used for the front as it has the ability to reverse the image.

  • Parking Guide Lines

    Parking guide lines (requires installation of compatible backup camera) that enhance the effectiveness of a backup camera.

  • Lane Assist

    Lane Assist guides you to the correct lane for an approaching turn or exit, making unfamiliar intersections and exits easy to navigate.

  • DUAL USB

    Multiple USB ports provide additional inputs for music sources or smartphone battery charging.

  • Variable Color Illumination

    Bright variable color LEDs can be adjusted to match any color dash lighting.

  • Remote App

    A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).

  • Photo Real Junction View

    Garmin Photo Real Junction View shows what complex interchanges look like before you arrive.

« scroll
Monitor Section
Picture size 6.95 inches(diagonal) wide
W x H 6-3/16 x 3-3/16 inch
Display system TN LCD panel
Drive system TFT active matrix system
Number of pixels 1,152,000
800H x 480V x RGB
Effective pixels 99.99%
Pixel arrangement RGB striped arrangement
Back lighting LED
DVD Section
D/A Converter 24 / 32Bit
Audio Decoder Linear PCM
Dolby Audio
MP3 / WMA / AAC / WAV / FLAC / Vorbis
Video Decoder MPEG1/2,MPEG4 / WMV / H.264 / MKV
Wow & Flutter Below Measurable Limit
Frequency response 96k Sampling 20 - 44,000 Hz
48k Sampling 20 - 22,000 Hz
44.1k Sampling 20 - 20,000 Hz
Total harmonic distortion 1kHz 0.010%
Signal to Noise ratio 90.5dB (DVD-Video 96k)
Dynamic range 89dB (DVD-Video 96k)
DISC Format DVD-Video / VIDEO-CD / CD-DA
Quantifying bit number 16 / 20 / 24bit
USB I/F Section
USB Standard USB2.0 High Speed
File System FAT 16/32, exFAT, NTFS
Maximum Power Supply Current DC5V=1.5A
D/A Converter 24/32Bit
Audio Decoder MP3 / WMA / AAC / WAV / FLAC / Vorbis / DSD
Video Decoder MPEG1/2,MPEG4 / WMV / H.264 / MKV
SD Section
SD Standard SD / SDHC / SDXC
Compatible File System FAT 16/32, exFAT, NTFS
Capacity Maximum 2T Byte
Data Transfer Rate Maximum 25MB/sec
Audio Decoder MP3 / WMA / AAC / WAV / FLAC / Vorbis / DSD
Video Decoder MPEG1/2,MPEG4 / WMV / H.264 / MKV
Wi-Fi
IEEE Standard 802.11 a/b/g/n
Frequency Range Dual Band ( 2.4GHz / 5GHz )
Channels Auto(1-11ch)
Auto(149,153,157,161ch)
Transfer rates (MAX) 11a:54 Mbps / 11b: 11 Mbps
11g: 54 Mbps / 11n:150 Mbps
Output Power 11a:14dBm±2dB / 11b: 17dBm±2dB
11g:15dBm±2dB / 11n:14dBm±2dB
Bluetooth Section
Technology Bluetooth Ver3.0
Frequency 2.402 – 2.480 GHz
Output Power +4dBm (MAX),0dBm (AVE) Power Class 2
Maximum Communication range Line of sight approx.10m(32.8ft)
Audio Codec SBC / AAC
Multi Profile Support Multi Profile
Profile HFP (V1.6) (Hands Free Profile)
SPP (Serial Port Profile)
A2DP (Advanced Audio Distribution Profile)
AVRCP (V1.5) (Audio/Video Remote Control Profile)
PBAP (Phonebook Access Profile)
DSP Section
Graphics equalizer
BAND 13Band
frequency (Hz) (BAND1-7,1-13) 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
Gain -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB]
2Way X'Over
HIGH PASS FILTER frequency Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]
SLOPE -6/-12/-18/-24[dB/Oct.]
LOW PASS FILTER frequency 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz]
SLOPE -6/-12/-18/-24[dB/Oct.]
Position
Front / Rear /Subwoofer Delay 0 - 20.01ft (0.03or0.04ft Step)
Gain -8 to 0dB
Subwoofer Level -50 to +10dB
FM
Frequency Range 87.9MHz - 107.9MHz
(Frequency step) (200kHz)
Usable sensitivity 9.3dBf
S/N30dB 0.8μV/75Ω
Quieting sensitivity 10.2dBf
DIN S/N 46dB 1.13μV/75Ohms
Frequency response 30Hz - 15kHz
(±3.0dB)
S/N (dB) 75dB (MONO)
Selectivity Over 80dB (±400kHz)
Stereo separation 45dB (1kHz)
AM
Frequency Range 530kHz - 1700kHz
(Frequency step) (10kHz)
Usable sensitivity 28dBμ
Video
Color system of external video input NTSC/PAL
External video input level (Mini jacks) 1 Vp-p / 75 Ohms
External audio max input level (Mini jacks) 2 V / 25 kOhms
Video Input level (RCA jacks) 1 Vp-p / 75 Ohms
Video Output level (RCA jacks) 1 Vp-p / 75 Ohms
Audio Output level (Mini jacks) 1.2 V / 10 kOhms
Audio
Maximum Power Output (Front&Rear) 50Wx4
Typical Power Output (Front&Rear) Full Bandwidth Power
(at less than 1%THD)
22Wx4
Output frequency band 20 - 88,000Hz
Preout level (V) 4V / 10kOhms
Preout impedance (Ω) =< 300 Ohms
Speaker Impedance (Ω) 4-8 Ohms
Navigation Section
Receiver High-sensitivity GPS receiver
Receiving frequency 1575.42MHz (C/A code )
Acquisition Times Cold: 29 seconds(typ)
All satellites at -130dBm
Without aiding
Update Rate 1/second, continuous
Accuracy Position: < 2.5meters,CEP, at -130dBm
Accuracy Velocity: 0.1meter/sec
Positioning Method GPS
Antenna External GPS Antenna
General
Operating voltage 14.4V (10.5V to 16V)
Maximum Current consumption 15A
Installation Dimensions WxHxD 7 x 3-15/16 x 6-5/16 inch
Operational temperature range -10°C to +60°C
Weight Main unit 5.5 lb
