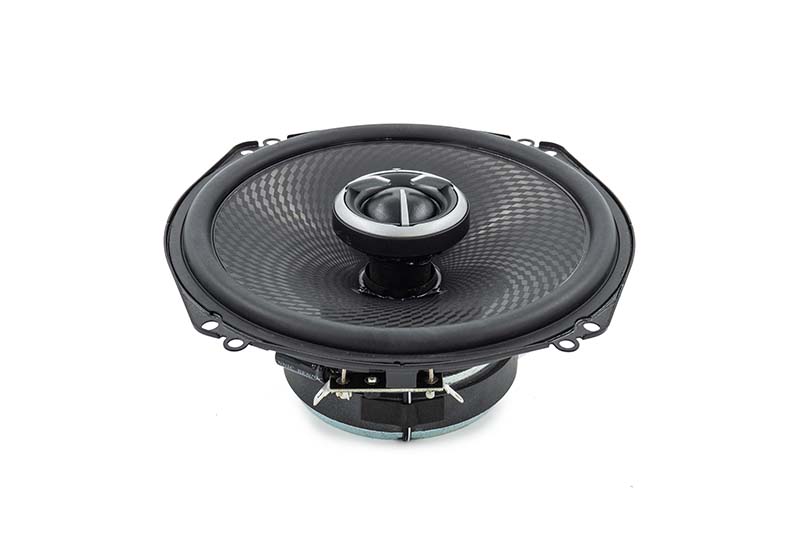

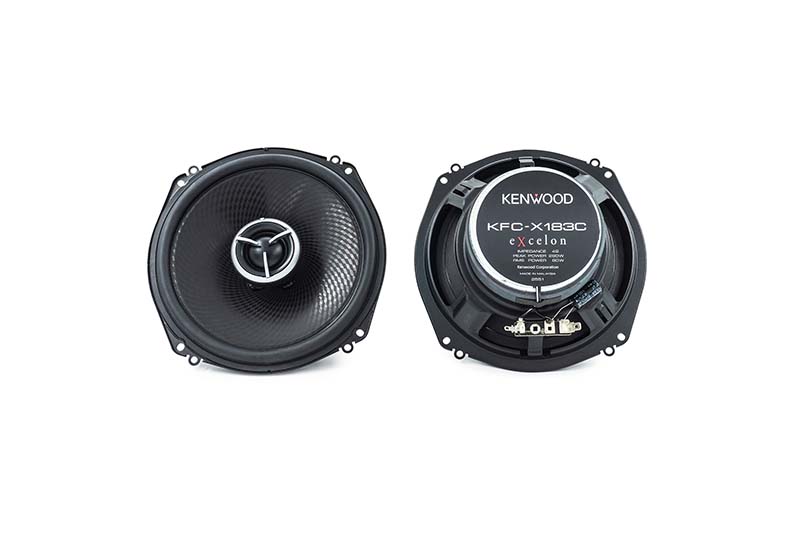

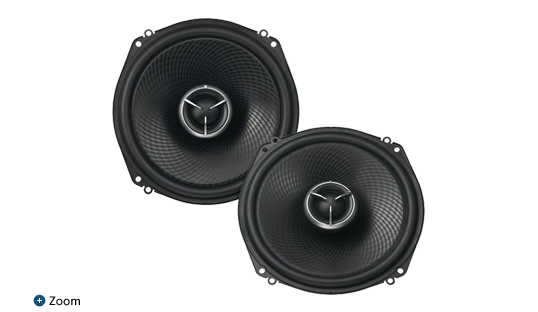

KFC-X183C

KFC-X183C
  • 7" Oversized Custom Fit
    2-way Speaker System

KFC-X183C

Buy Now

  • The new KFC-X183C is a true upgrade to a factory speaker system. It can handle up to 280W of of output and can be easily installed in Dodge, GM, Toyota and Chevrolet vehicles. Each pair of KFC-X183C speakers comes with a special multi-fit bracket. This bracket can be easily modified for use in a variety of makes associated with the above mentioned vehicle manufacturers. In addition the speaker features an oversized diaphragm that is 28% bigger than the KFC-X173 so it delivers exceptional audio reproduction.

Product Summary

Peak Power: 280W
Rated Input Power: 80W
4Ohm Impedance
Frequency Response 63Hz - 17kHz
Mounting Depth 2-7/16"
1" Soft Dome Tweeter
Multi Bracket and 6x9 bracket

General Features

Diamond Array Pattern Diaphragm: Yes
Woofer
-  Woofer Size: 7 in (180mm)
-  Woofer Diaphragm: P.P. Cone
-  Surround: Rubber
-  Basket: Steel (Black)
-  Magnet: Ferrite
Tweeter
-  Tweeter Size: 1 in (25mm)
-  Tweeter Diaphragm: Soft Dome
Dimensions (without grill)
-  Width: 6-9/16 in (166mm)
-  Height: 6-9/16 in (166mm)
-  Depth: 3-3/16 in (81mm)
-  Mounting Depth: 2-7/16 in (62mm)
Warranty: 2-Year
