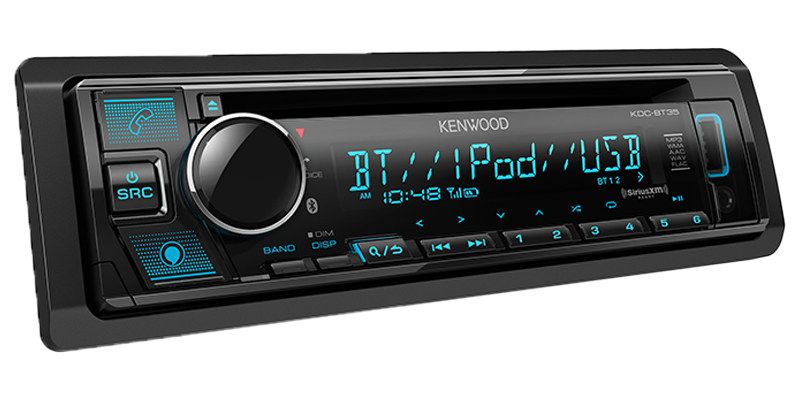

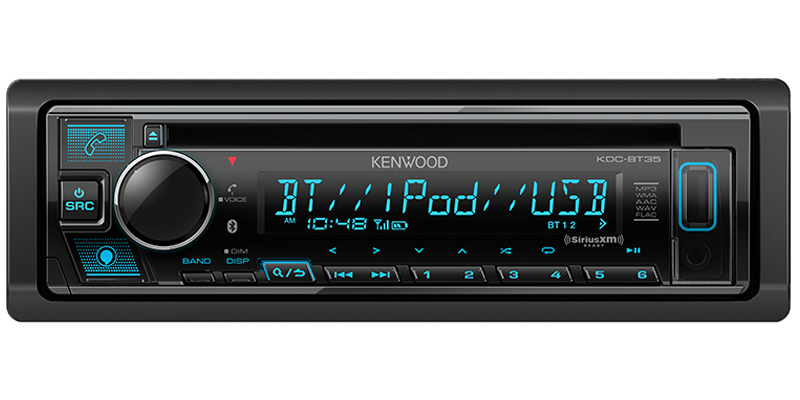

KDC-BT35CD-Receiver
with Bluetooth
With Alexa on your KENWOOD Receivers, you can use your voice to control your music and much more. Using Alexa is as easy as asking a question. Just ask and Alexa can play your favorite song, skip to the next track, change the volume, read you the news and more.
Using Alexa on the KENWOOD Receiver is simple and hands-free, just ask and Alexa will respond instantly, or press the Amazon Alexa key on the KENWOOD receiver, you can easily activate Alexa and get voice control.
*For more information, visit https://www.kenwood.com/car/app/amazon_alexa/eng/
Amazon Alexa Key
Listen to popular music applications and music stored on your device with basic audio controls.
Up to 5 Bluetooth® devices can be connected to the receiver at the same time, allowing you to take turns streaming music with your friends and family.
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).
Easy front panel connection for your compatible USB- enabled devices. These include Mass Storage Class devices like iPods, smartphones, and USB flash drives. The USB input will allow you to charge and control the music playback of your select devices.
13-Band equalizer and DTA gives optimal tuning enhancements for the listener.
Compatible with a broad range of audio file formats from FLAC and WAV, to MP3, WMA and AAC.
| Music Codec | Playable up to |
|---|---|
| FLAC | ～96kHz / ～24bit |
| WAV | ～44.1kHz / ～16bit |
| MP3 | ～48kHz / ～320kbps |
| WMA | ～48kHz / ～192kbps |
| AAC | ～48kHz / ～320kbps |
Sound coming from a variety of speakers located within your car are time aligned to arrive at your ear at exactly the same time.
Drive EQ boosts specific frequencies in the audio signal to compensate the negative impact of road noise.

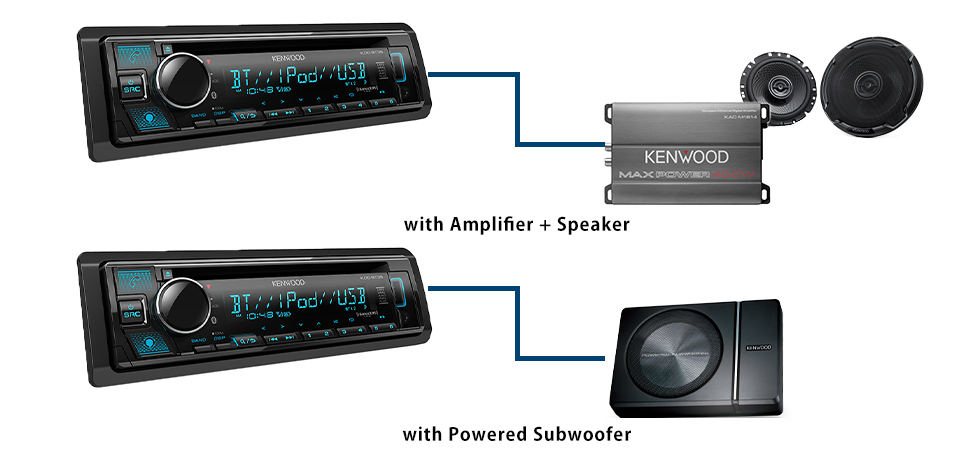

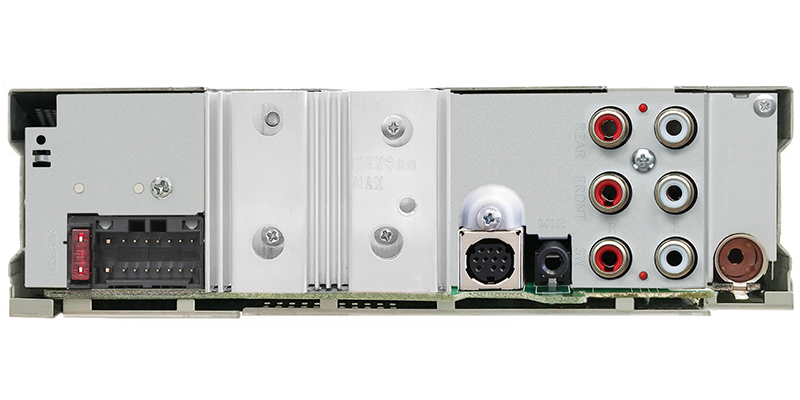

The KENWOOD receiver has RCA outputs to expand the system to connect to an additional amplifier or powered subwoofer.
Bright variable color LED's can be adjusted to match any color dash lighting.
Access additional music, sports and entertainment content on the go with SiriusXM Radio.
(Optional SiriusXM tuner required, sold separately)
On-screen display menu now available in Spanish and French.
Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.
Up to 5 Bluetooth® devices can be paired to the receiver at the same time. You can enjoy audio streaming just by switching the devices with your friends or family.
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).
13-Band equalizer and DTA gives optimal tuning enhancements for listeners.
Boosts specific frequencies in the audio signal to overcome the negative impact of road noise.
Compatible with various audio file formats from FLAC and WAV, to MP3, WMA and AAC.
Bright variable color LEDs can be adjusted to match any
color dash lighting.
| FM | Frequency Range(MHz) (Frequency step) |
87.9MHz to 107.9MHz (200kHz) |
|---|---|---|
| Usable Sensitivity S/N:30dB |
8.2dBf (0.71μV/75Ω） |
|
| Quieting Sensitivity DIN S/N:46dB |
17.2dBf (2.0μV/75Ω） |
|
| Frequency Response (±3.0dB) |
30Hz to 15kHz | |
| S/N(dB) | 64.0dB(MONO) | |
| Stereo Separation | 40dB(1kHz) | |
| MW (AM) |
Frequency Range(kHz) (Frequency step) |
530kHz to 1700kHz (10kHz) |
| Usable Sensitivity (S/N 20dB) |
29dBμ (28.2μV) | |
| CD | Laser Diode | GaAlAs |
| Digital Filter(D/A) | 8 Times Oversampling | |
| Spindle Speed | 500 to 200rpm (CLV) | |
| Wow & Flutter | Below Measurable Limit | |
| Frequency Response | 20Hz to 20kHz(±1dB) | |
| Total Harmonic Distortion | 0.01%(1kHz) | |
| S/N Ratio (dB) | 94dB(1kHz) | |
| Dynamic Range | 92dB | |
| Channel Separation | 90dB | |
| MP3 Decode | Compliant with MPEG-1/2 Audio Layer-3 | |
| WMA Decode | Compliant with WINDOWS MEDIA AUDIO | |
| AAC Decode | AAC-LC ".aac" files | |
| WAV Decode | - | |
| Preout Level(mV)/Load | -Unbalanced | 2,500mV/10kΩ |
| Preout Impedance(Ω) | =<600Ω | |
| Speaker Impedance(Ω) | 4 to 8Ω | USB I/F | USB | USB 1.1 / 2.0 High Speed |
| File System | FAT12 / 16 / 32 | |
| Maximum Supply current | DC5V(DC logo) 1.5A | |
| Frequency Response | 20Hz to 20kHz(±1dB) | |
| S/N Ratio (dB) | 98dB(1kHz) | |
| Dynamic Range | 93dB | |
| Channel Separation | 89dB | |
| MP3 Decode | Compliant with MPEG-1/2 Audio Layer-3 | |
| WMA Decode | Compliant with Windows Media Audio | |
| AAC Decode | AAC-LC ".aac",".m4a" files | |
| WAV Decode | Linear-PCM | |
| FLAC Decode | FLAC file (Up to 24bit/96kHz) | |
| AUX Input |
Frequency Response | 20Hz to 20kHz ±3dB |
| Input Maximum Voltage | 1,000mV | |
| Input Impedance | 30kΩ | |
| AMP | Maximum Power | 50Wx4 |
| Full Bandwidth Power (at less than 1%THD) |
22Wx4 | |
| TONE | Band1 | 62.5Hz ±9dB |
| Band2 | 100Hz ±9dB | |
| Band3 | 160Hz ±9dB | |
| Band4 | 250Hz ±9dB | |
| Band5 | 400Hz ±9dB | |
| Band6 | 630Hz ±9dB | |
| Band7 | 1kHz ±9dB | |
| Band8 | 1.6kHz ±9dB | |
| Band9 | 2.5kHz ±9dB | |
| Band10 | 4kHz ±9dB | |
| Band11 | 6.3kHz ±9dB | |
| Band12 | 10kHz ±9dB | |
| Band13 | 16kHz ±9dB | |
| Bluetooth | Version | Bluetooth 4.2 |
| Frequency Range | 2.402 to 2.480GHz | |
| RF Output Power (E.I.R.P.) | +4dBm (MAX), Power Class 2 | |
| Maximum Communication range | Line of sight approx.10m(32.8ft) | |
| Profile | HFP 1.7.1 (Hands Free Profile) | |
| SPP(Serial Port Profile) | ||
| PBAP(Phonebook Access Profile) | ||
| A2DP(Advanced Audio Distribution Profile) | ||
| AVRCP 1.6.1 (Audio/Video Remote Control Profile) | ||
| GENE | Operating voltage | 12V DC car battery |
| Installation Size(W) (H) (D) |
182(mm) 7-3/16(in) 53(mm) 2-1/16(in) 155.5(mm) 6-1/8(in) |
|
| Net Weight | 1.2(kg) 2.7(lbs) (Trim plate and Mounting sleeve: Included) |
