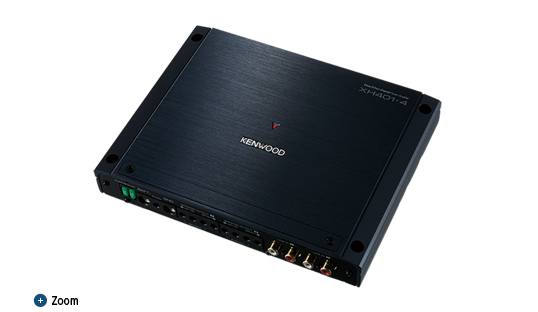

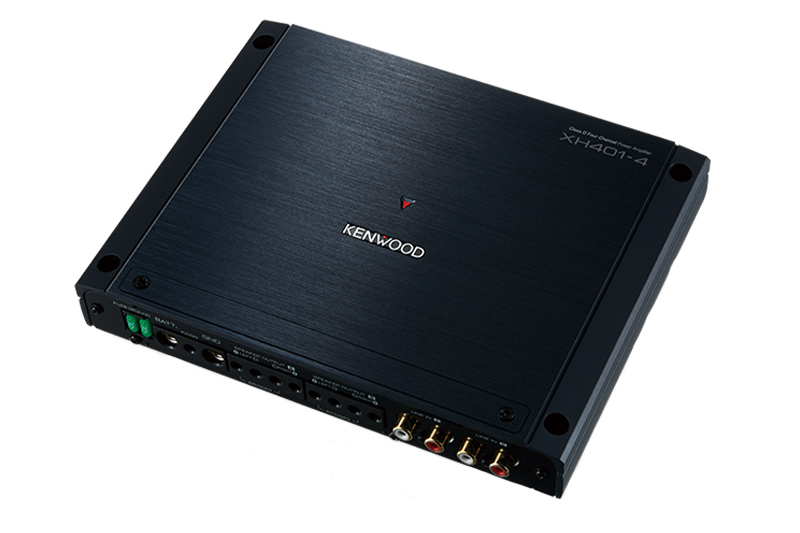

XH401-4

XH401-4

  • Class D 4 Channel Power Amplifier
  • RMS 75W x4 (4Ω)
  • RMS 100W x4 (2Ω)
  • Variable Low-pass Filter
  • Variable High-pass Filter
  • Speaker Level Input
  • Signal Sensing Turn-on
  • Wired Remote Level Control Included
  • Dimension: (W)220mm x (H)35mm x (D)169 mm
  • Weight: 1.5kg

Rich and Immersive
High-Resolution Audio

High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.


Smooth waveforms

Loss of smoothless

Fine waveforms

* The product with this logo is conformed to High-Resolution Audio standard defined by Japan Audio Society. This logo is used under license from Japan Audio Society.

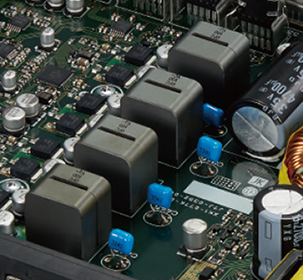

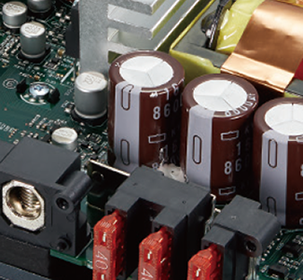

HIGH PERFORMANCE PARTS

Special capacitors and inductors have been carefully selected for the digital amplifier’s LC filter, which is essential for achieving highresolution audio. These high-performance parts reduce noise and distortion and ensure excellent sound quality.

DEEP BASS SOUND

By using a down-firing subwoofer and superior technologies, the audio system generates high-quality sound and powerful bass, while still being compact.

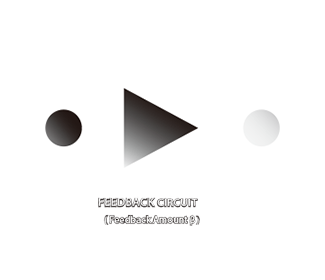

ENHANCED SIGNAL TO NOISE RATIO

The feedback value of the current XR Amplifier has been optimized to improve the S/N ratio. As a result, the noise level has been reduced by up to 40%.

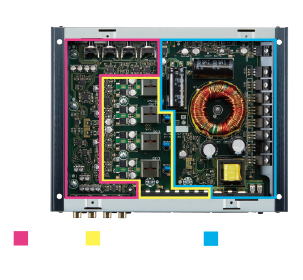

SPECIALIZED CIRCUIT DESIGN

The noise reduction system employs a special layout that separates the analog circuit, digital amplifier circuit and power supply circuit. This keeps interference between the circuits to a minimum, decreasing noise and thereby achieving high performance and sound quality.

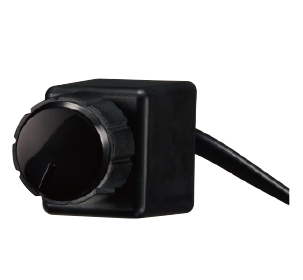

WIRED REMOTE CONTROL

The wired remote control allows you to adjust the volume of a subwoofer when connected to the head unit.

FEATURES LIST
