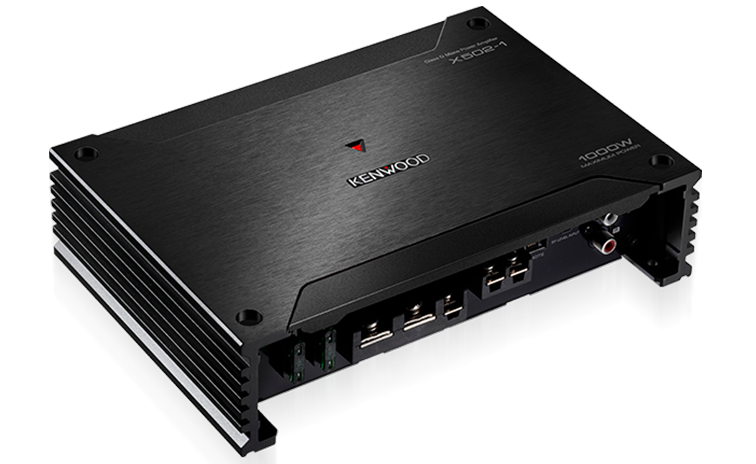

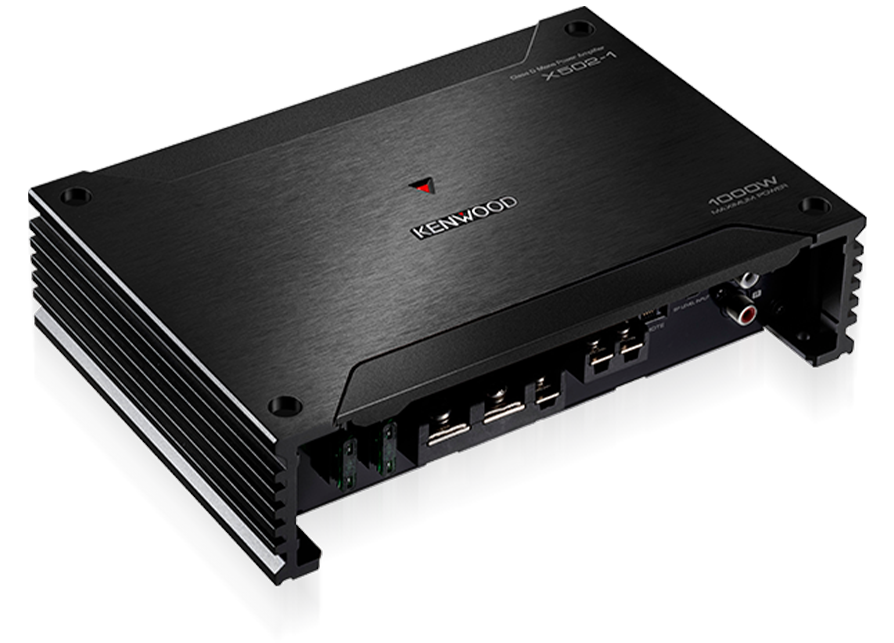

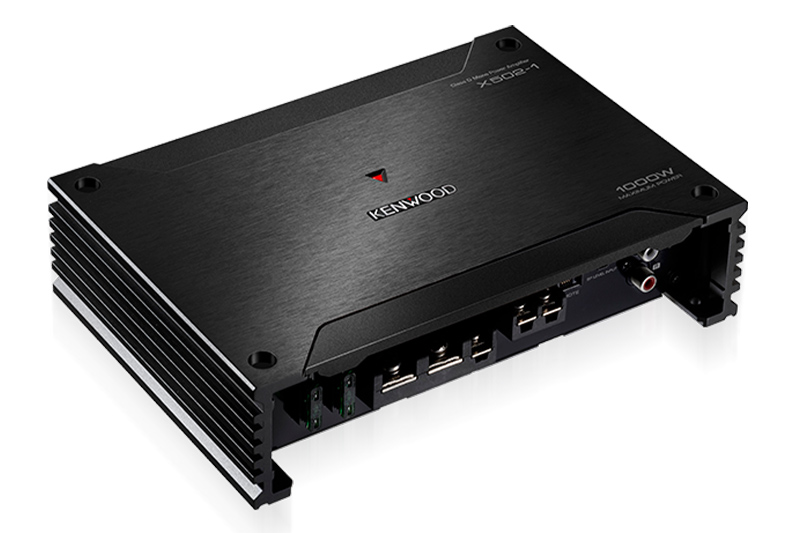

X502-1Class D Mono Power Amplifier

  • Max Power 1000W
  • RMS 300W (4Ω)
  • RMS 500W (2Ω)
  • Size (inch) (W)213mm x (H)53mm x (D)149 mm
  • Variable Low Pass Filter
  • Bass Boost
  • Optional Wired Remote Ready

Output Coil with Magnetic Shield

Prevents magnetic flux from radiating from the subwoofer's coil, resulting in reduced noise and enhanced sound quality.

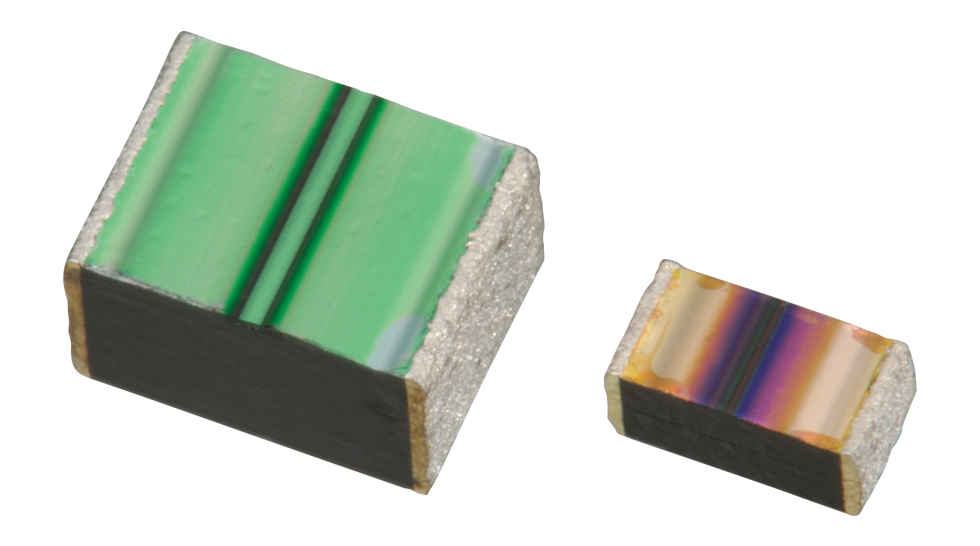

High Quality Capacitors

PMLCAP's (Polymer Multi-Layer Capacitors) are utilized in the LC filter circuits to decrease distortion, ensuring clear detail for a truer to life sound.

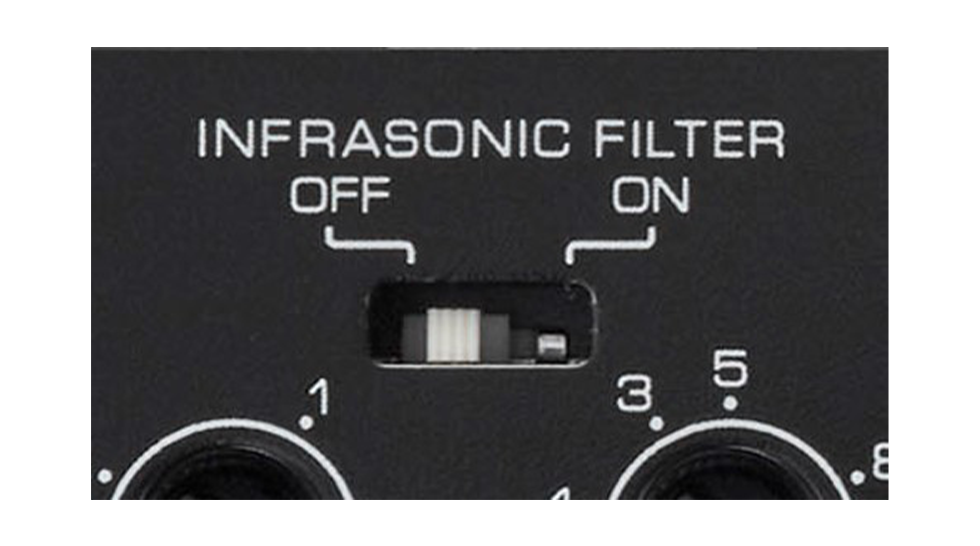

Infrasonic Filter (ISF)

When the Infrasonic Filter Switch is turned on, the amplifier cuts off the low frequencies below 25Hz, which makes the amplifier’s power supply and output devices more efficient, providing clear bass output.

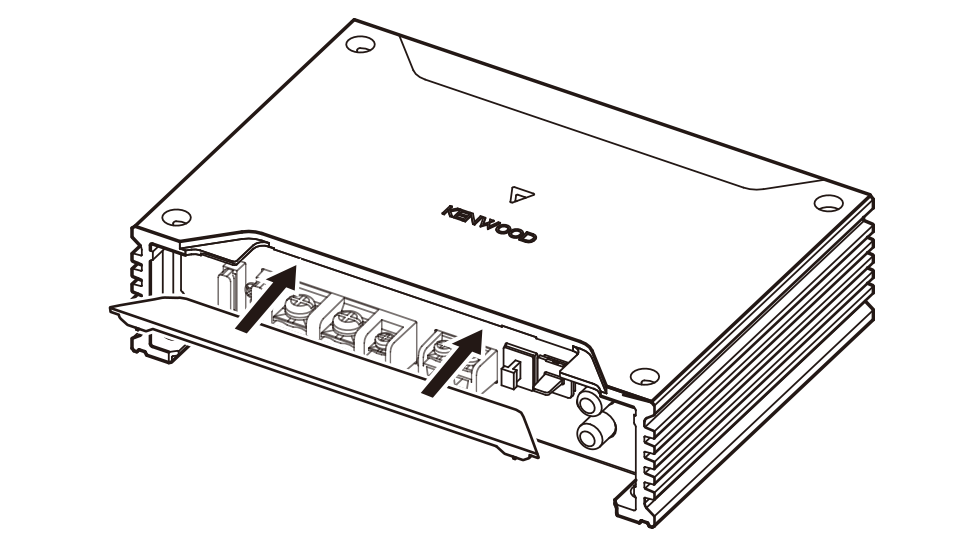

Sliding Terminal Cover

Detachable sliding terminal cover offers a sleek design and easier installation.

One-side Connection

All terminals and connections are on one side for easier installation and a cleaner look.

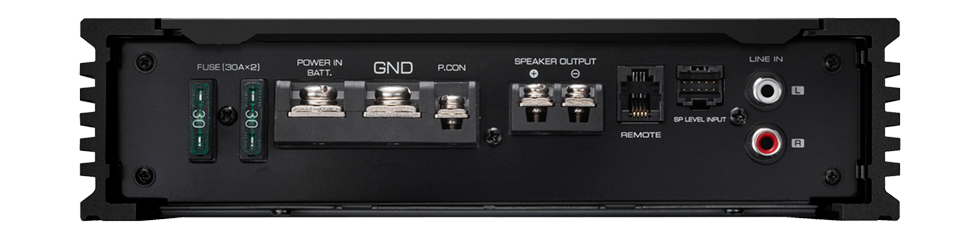

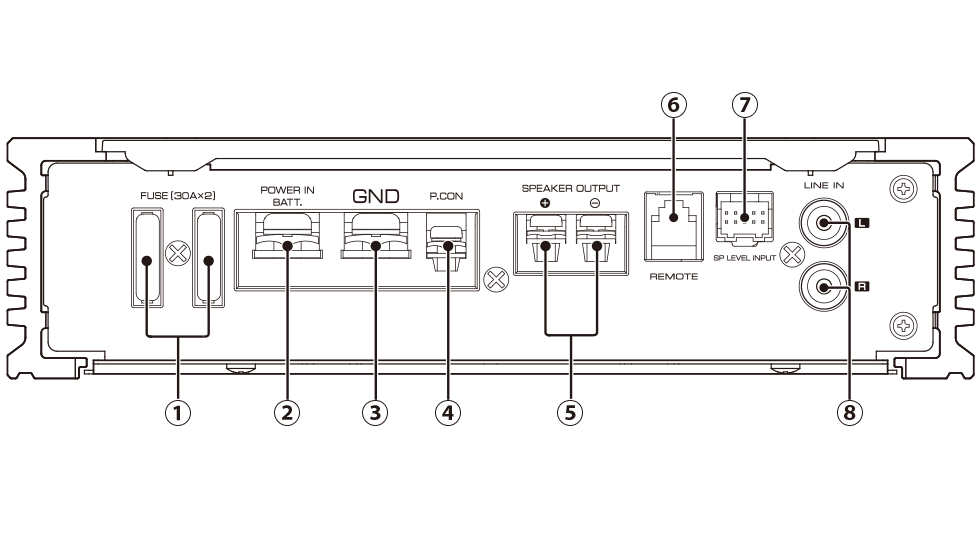

  • ①Fuse (30A x2)
  • ②Battery terminal (POWER IN BATT.)
  • ③Power control terminal
  • ④Ground terminal (GND)
  • ⑤Speaker output terminals
  • ⑥Remote terminal
  • ⑦Speaker level input terminal
  • ⑧Line in terminal

Variable Gain Circuit

Improved Signal to Noise Ratio

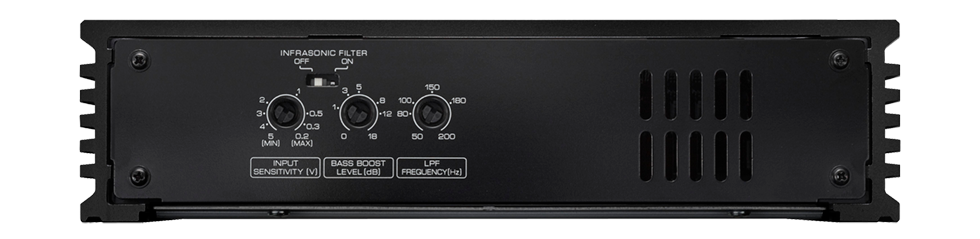

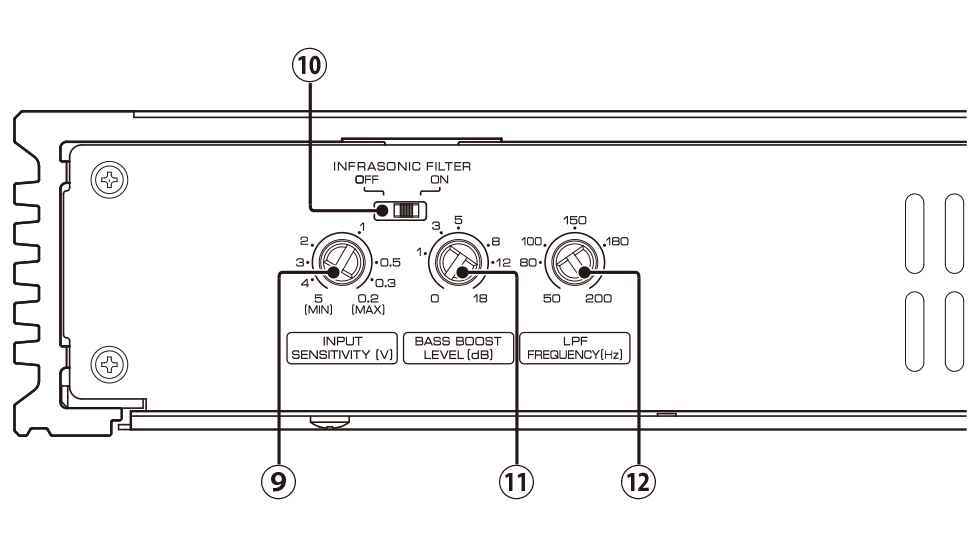

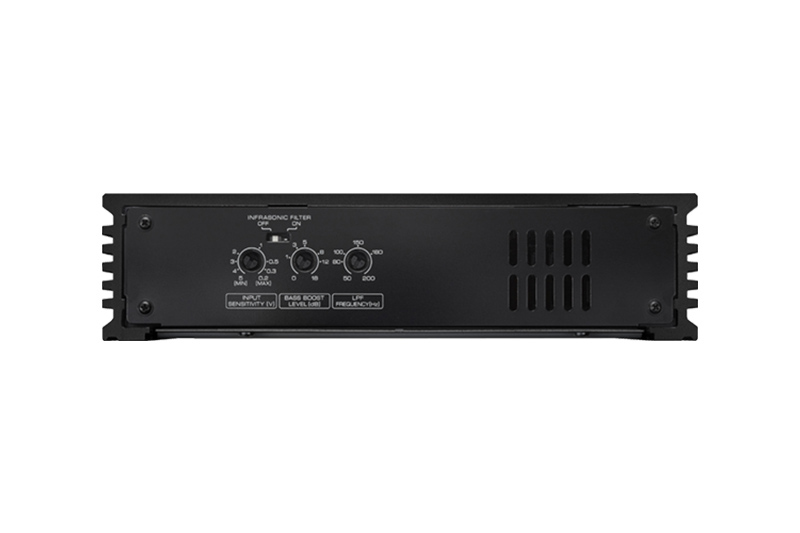

  • ⑨Input sensitivity control(A.ch/B.ch/Sub)
  • ⑩Infrasonic filter switch
  • ⑪Bass Boost Level control
  • ⑫LPF frequency control

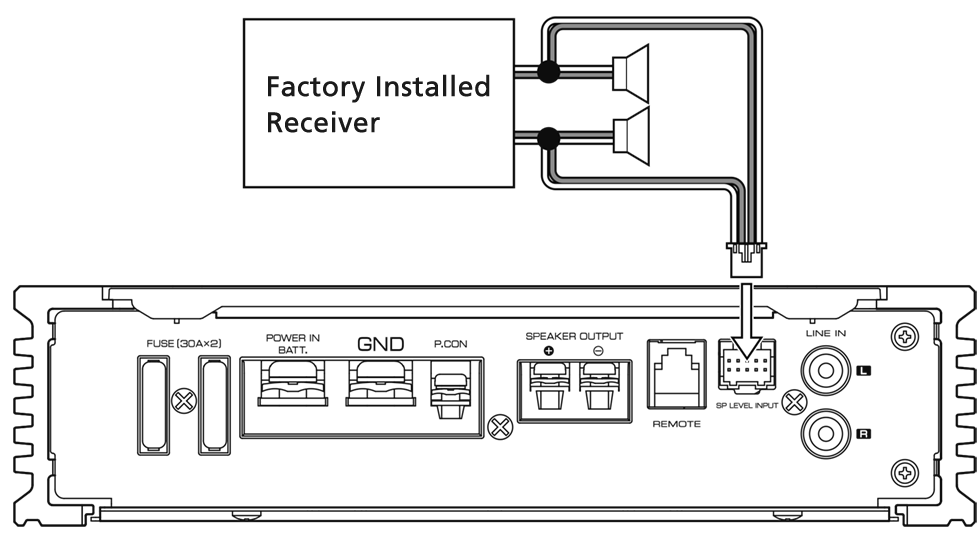

Speaker Level Input Harness

Speaker Level Input Harness is included to connect to speaker wires from factory installed receivers.

Optional Wired Level Control Ready

The optional KCA-RC01A wired remote level control allows you to easily adjust the subwoofer volume.

General Features

« scroll
X802-5 X502-1 X302-4
MAX POWER 1600W 1000W 600W
RMS POWER OUTPUT (4Ω) 50W x 4 + 300W 300W 50W x 4
RMS POWER OUTPUT (2Ω) 75W x 4 + 500W 500W 75W x 4
RMS POWER OUTPUT Bridged 150W x 2 (Bridged) + 300W - 150W x 2 (Bridged)
Features Speaker Level Input Speaker Level Input Speaker Level Input
Signal Sensing Turn-On Signal Sensing Turn-On Signal Sensing Turn-On
Variable High Pass Filter Variable Low Pass Filter Variable High Pass Filter
Variable Low Pass Filter Infrasonic Filter Variable Low Pass Filter
Bass Boost Bass Boost Bass Boost
Optional Wired Remote Ready Optional Wired Remote Ready
Dimensions (W)248mm x (H)53mm x (D)169 mm (W)213mm x (H)53mm x (D)149 mm (W)213mm x (H)53mm x (D)149 mm
Weight 2.1kg 1.5kg 1.4kg
« scroll
Maximum Power Output MAX POWER 1000W
Rated Power Output at 14.4V SUB (4 Ohms) 300Watts RMS x 1 (4 Ohms, 20-200Hz, ≤0.5% THD)
SUB (2 Ohms) 500Watts RMS x 1 (2 Ohms, 100Hz, ≤0.5% THD)
A/B (Bridged 4Ohms) -
Specifications Signal to Noise Ratio 100dB (Reference: Rated Power into 4Ohms at 14.4V)
Frequency Response 20Hz-200Hz (+0dB, -3dB)
Frequency Response -
Input Impedance 10k ohm
Speaker Impedance 4Ω (2Ω to 8Ω allowable)
Bridged Connection -
Audio Section Low-Pass Filter 50Hz-200Hz, -24dB/oct
High-Pass Filter -
Bass Boost 40Hz, 0dB - +18dB
Infrasonic Filter 25Hz, -24dB
RCA Input Sensitivity 0.2[V] - 5.0 [V]
Speaker Level Input Sensitivity 4.0[V] - 12.0 [V]
Terminals Battery & Ground M6 Screw Type Terminal Block
Speaker Output M4 Screw Type Terminal Block
General Dimensions(WxHxD) (W) 213mm x (H) 53mm x (D) 149mm
Weight 1.5㎏
Operating Voltage 14.4V(11-16V allowable)
Current Consumption 25 [A]
Key Features 2 Ohms Load Capability
One Sided Connection
Speaker Level Input with Signal Sensing Turn-on
Signal Sensing Turn-On
Accessorries Remote Level Control Ready ( Optional KCA-RC01A)
Terminal Cover
Power MOS-FET Switching Power Supply
Extruded Aluminum Heat Sink Design
