Speaker

KFC-XS1704

Hi-Res Audio Certified.
17cm Component Speaker(Discontinued)

KFC-XS1704
KFC-XS1704

(1) Magnetic Circuit with Aluminum Ring
An aluminum ring minimizes unwanted distortion caused by electromagnetic induction of the voice coil, and it ensures a clear sound.

(2) High Rigid Glass Fiber Diaphragm
A glass-fiber is the material with high strength and high toughness. The woven glass-fiber diaphragm cleanly provides all the detail and impact you expect.

(3) Phase Correcting Diffuser
Its specially designed slits correct unwanted phase shift and deliver a more life-like sound experience while the concave shape on a center part of diffuser clearly reproduces a vocal sound image.

(4) 2way Tweeter
The tweeter consists of two tweeters. This unique structure delivers the fullness in a wide range while each tweeter reproduces a different frequency band.

(5) Special Phase Plug with Center Dip Design
-optimizes sound radiation resulting in natural and charming vocal.

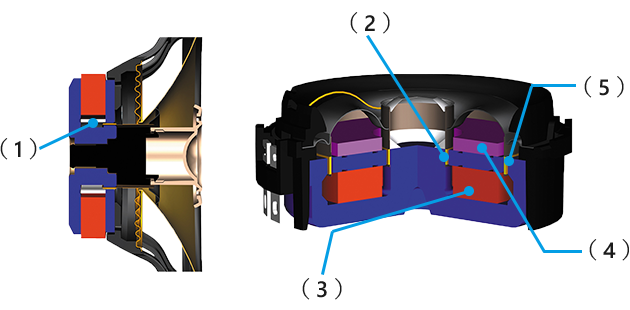

KFC-XS1704
KFC-XS1704

(1) Aluminium Short Ring

(2) Super Tweeter Voice Coil

(3) Main Magnet

(4) Sub Magnet

(5) Tweeter Voice Coil

Speaker Tech-Spec KFC-XS1704
Peak Input Power 180W
RMS Input Power 45W
Size 17cm
Tweeter Design Soft + Titanium Dome
Tweeter Magnet Composition Ferrite
Woofer Magnet Composition Neodymium
Nominal Impedance 4ohms
Frequency Response 34Hz-56kHz (-10dB)
Sensitivity (dB/W at 1m) 83dB
Mounting Depth 57mm
