DDX419BT
DDX419BT

DDX419BTAV收放机,带6.2英寸WVGA
透明涂层电阻显示器

  • 内置蓝牙

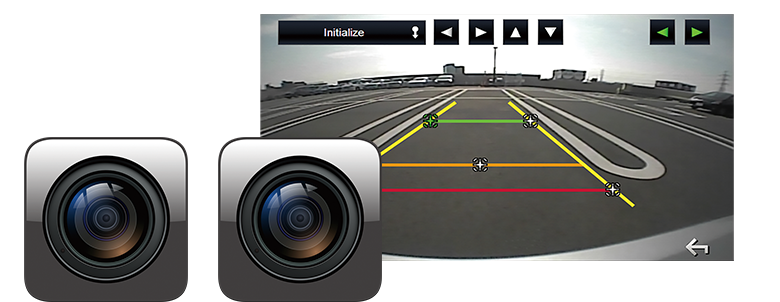

  • 后视摄像头输入带停车指南
  • 多色照明
  • Spotify控制
  • 3 个预输出 4.0V

高级蓝牙技术

通过将智能手机和接收机进行无线连接, 可让您在驾驶时享受更多乐趣和便捷。

了解更多

了解更多

专用USB功能

USB连接适用于智能设备和兼容的USB大容量存储设备。

了解更多

了解更多

其他有用的功能

了解令人兴奋的产品功能和亮点。

了解更多

了解更多

建伍车载电子系统

Authorized KENWOOD Retailers

Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.

Where to Buy

« 滚动
Monitor
Section
Picture size
W x H
6.2 inches(diagonal) wide
137.5mm x 77.2mm
Display system Transparent TN LCD panel
Drive system TFT active matrix system
Number of pixels 1,152,000
800H x 480V x RGB
Effective pixels 99.99%
Pixel arrangement RGB striped arrangement
Back lighting LED
DVD
Section
D/A Converter 24Bit
Audio Decoder Linear PCM
Dolby Audio
MP3/WMA/AAC(.m4a)/WAV
Video Decoder MPEG1/MPEG2/DivX/JPEG
Wow & Flutter Below Measurable Limit
Frequency response 96k Sampling 20 - 22,000 Hz
48k Sampling 20 - 22,000 Hz
44.1k Sampling 20 - 20,000 Hz
Total harmonic distortion 1kHz 0.010%
Signal to Noise ratio 90dB
Dynamic range 90dB
DISC Format DVD-Video/VIDEO-CD/CD-DA
Sampling frequency 44.1kHz/48kHz
96kHz
Quantifying bit number 16/20/24bit
USB I/F
Section
USB Standard USB2.0 Full Speed / High Speed
Compatible Devices Mass storage class
File System FAT 16/32
Maximum Power Supply Current DC5V (DC logo) = 1.5A
D/A Converter 24bit
Audio Decoder MP3/WMA/AAC(.m4a/.aac)/WAV/FLAC
Video Decoder MPEG1/MPEG2/DivX/JPEG
Bluetooth
Section
Technology Bluetooth V3.0
Frequency 2.402 - 2.480 GHz
RF Output Power (E.I.R.P.) +4dBm (MAX), Power Class 2
Maximum Communication range Line of sight approx.10m (32.8ft)
Audio Codec SBC/AAC
Profile HFP(Hands Free Profile) 1.6
A2DP(Advanced Audio Distribution Profile) 1.3
AVRCP(Audio/Video Remote Control Profile) 1.5
GAP(Generic Access Profile)
PBAP(Phonebook Access Profile) 1.2
SDP(Service Discovery Profile)
SPP(Serial Port Profile) 1.2
FM Frequency range
(Frequency step)
87.5 MHz - 108.0 MHz
(50 kHz)
Usable sensitivity
S/N:26 dB
6.2 dBf
0.56 μV / 75 Ohms
Quieting sensitivity
S/N:46 dB
15.2 dBf
1.58 μV / 75 Ohms
Frequency response
(±3.0 dB)
30 Hz - 15 kHz
S/N (dB) 68 dB(MONO)
Selectivity Over 80 dB(±400 kHz)
Stereo separation 40 dB(1 kHz)
AM Frequency range
(Frequency step)
531 kHz - 1611 kHz
(9 kHz)
Usable sensitivity 28.5 μV
Video Color system of external video input NTSC/PAL
External video input level (mini jack) 1Vp-p / 75Ohms
External audio max input level (mini jack) 2V / 25kOhms
Video Input level for Rear Camera (RCA jack) 1Vp-p / 75Ohms
Video Input level for Front Camera (RCA jack) 1Vp-p / 75Ohms
Video Output level (RCA jacks) 1Vp-p / 75Ohms
Analog RGB input 0.7Vp-p / 75Ohms
Audio Maximum Power (Front&Rear) 50Wx4
Full Bandwidth Power (Front&Rear) 22Wx4
(at less than 1%THD)
Preout level(V) 4V / 10kOhms
Preout Impedance(Ω) =< 600 Ohms
Speaker Impedance(Ω) 4-8 Ohms
Equalizer BAND 13Band
Frequency(Hz) 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
Gain -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9 [dB]
Q factor 1.35/1.5/2.0
2Way X'Over Tweeter
Frequency(Hz)
1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k
Gain -8/-7/-6/-5/-4/-3/-2/-1/0 [dB]
Front (HPF)
Frequency(Hz)
Through/30/40/50/60/70/80/90/100/120/150/180/220/250
Slope -6/-12/-18/-24 [dB/Oct.]
Gain -8/-7/-6/-5/-4/-3/-2/-1/0 [dB]
Rear (HPF)
Frequency(Hz)
Through/30/40/50/60/70/80/90/100/120/150/180/220/250
Slope -6/-12/-18/-24 [dB/Oct.]
Gain -8/-7/-6/-5/-4/-3/-2/-1/0 [dB]
SW (LPF)
Frequency(Hz)
30/40/50/60/70/80/90/100/120/150/180/220/250/Through
Slope -6/-12/-18/-24 [dB/Oct.]
Phase Normal/Reverse
Gain -8/-7/-6/-5/-4/-3/-2/-1/0 [dB]
Position 2Way: Front / Rear /Subwoofer Delay 0 - 610cm (2.0cm Step)
Gain -8 to 0dB
Subwoofer Level -50 to +10dB
General Operating voltage 12 V DC car battery
Installation Dimensions WxHxD 178mm x 100mm x 162mm
Weight                             Main unit 1.7 kg
