XM1041WL
XM1041WL

XM1041WL10" Subwoofer with Illumination

  • Peak Power 1300W
  • RMS POWER 300W
  • IPX6 Water Resistant PP Cone
  • Polypropylene Cone with Rubber Surround
  • UV Resistant Grille
  • Variable Color/Pattern Illumination
  • Remote Control for Illumination

Designed for All-Weather Use

Water PROOF
IPX6 certified = Protection from powerful sprays of water.

Salt Spray & UV PROOF

ASTM B117 salt spray (or salt fog) corrosion testing ensures the subwoofer will not corrode or fail in saltwater and other harsh environments.

ASTM G154 UV resistant woofer cone and subwoofer grille prevents deterioration and discoloration from strong sunlight.

ULTIMATE Peformance

DEEP Bass

Large Magnet and 4 layer voice coil reproduces deep bass sound.

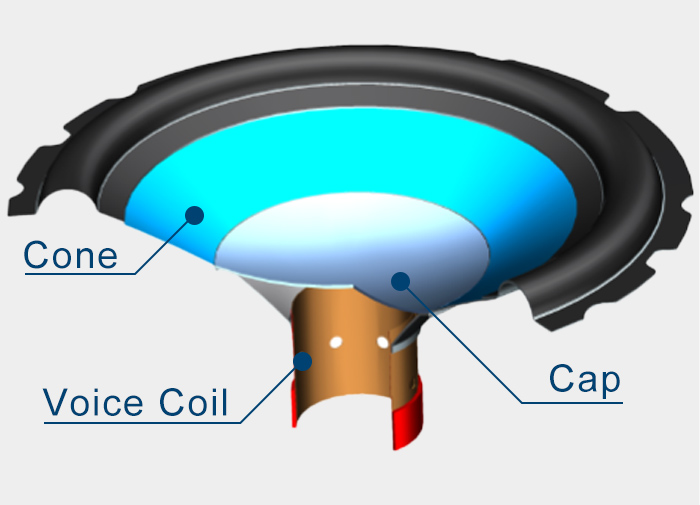

Durability

Thick 0.7mm Cone, 1.4mm Cap and Φ45.5mm Voice coil ensure sufficient strength and reduction of unnecessary noise.

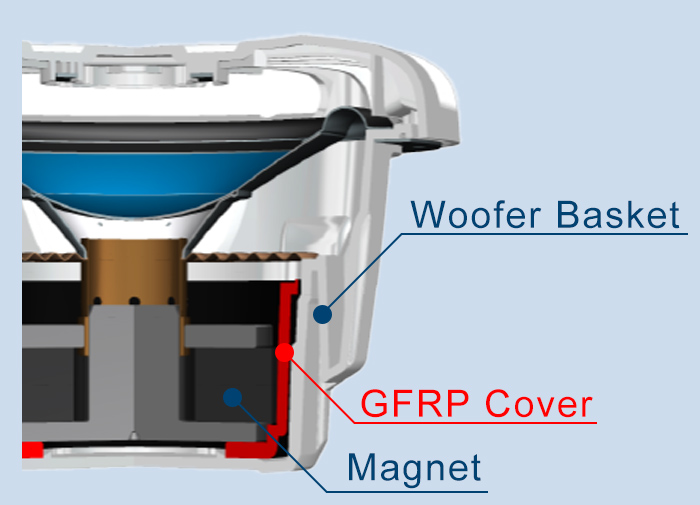

Heat Protection

Glass Fiber Reinforced Plastics (GFRP) protect the woofer basket from the magnet’s heat, stabilizing its sound and condition.

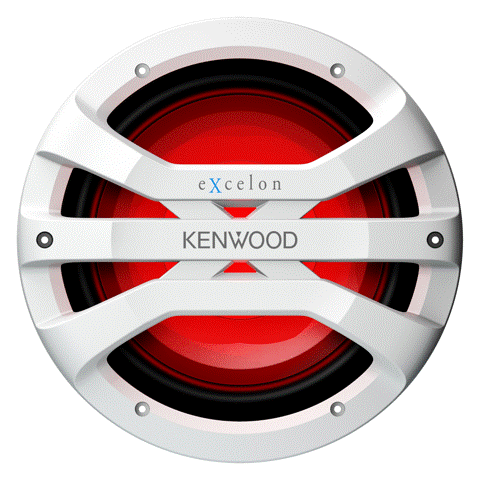

Adjustable Multi-Lighting through
RF Remote Controller

21 Illumination Colors
21 Lighting Mode Patterns
8 Brightness Adjustments
7 Speed Adjustments

A Maximum of 12 subwoofers or speakers can be connected and synchronized with illumination.

Illumination cable wiring image

Included RF Remote Control – Designed for Ease of Use

  • Illuminaiton ON/OFF Key
  • Demo Mode Key
  • Lighting Mode Key
  • Speed Adjustment Key
  • Brightness Adjustment Key
  • Color Adjustment Key
  • Strap Hole

4ch + Mono Amplifier Setting

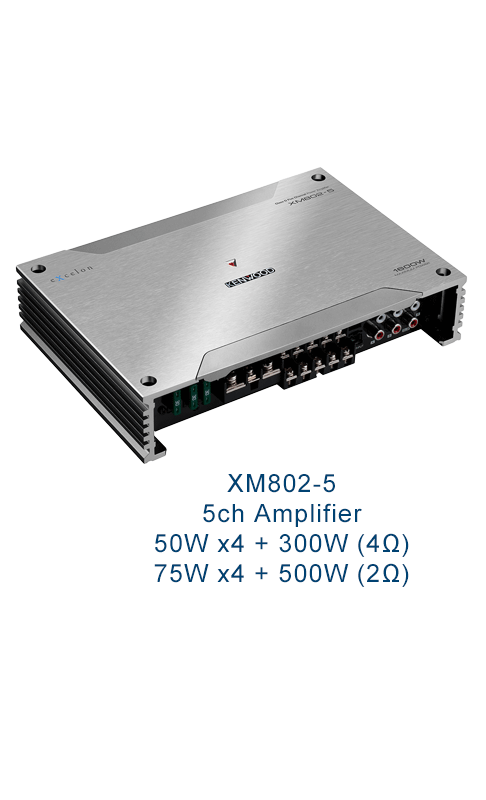

5ch Amplifier Setting

Dimension

General Features

Peak Input Power 1300W
RMS Input Power 300W
Size 10"
Woofer Magnet Composition Ferrite
Nominal Impedance 4ohms
Frequency Response 40Hz – 300Hz
Sensitivity (dB/W at 1m) 84dB
Cutout Diameter 9-1/8" 232mm
Top Height 1-13/16" 46.5mm
Mounting Depth 5-1/2" 140mm
Weight 12.1lbs 5.5kg
« scroll
Unit Size
Woofer Size 30cm 12inch
ELECTRICAL
KITS CTA
CTA Impedance (Ω) 4
RMS Power (W) 300
Sensitivity (dB at 1m) 84
Frequency Response (Hz) 40 ~ 300
Peak Input Power (W) 1300
IPXX
IPX(Subwoofer Only) IPX6
Mounting Speaker
Woofer Diaphragm(Cone) PP Silver
Cap PP Silver
Surround (Edge) Rubber Black
Basket (Frame) Resin Mold (Material ABS) White
Cusion Rubber Black
Magnet Ferrite φ135×φ60×t16mm x2
Terminal Push Terminal
Grille Resin Mold (Material ASA) White
DIMENSION/WEIGHT
Woofer Size 250mm 10 inch
Width(with.G) 282mm 11-1/8 inch
Height(with.G) 282mm 11-1/8 inch
Cut-out Diameter φ232mm Dia.9-1/8 inch
Top Height 46.5mm 1-13/16 inch
Mounting Depth 140mm 5-1/2 inch
Weight 5.5 kg 12.1 lbs

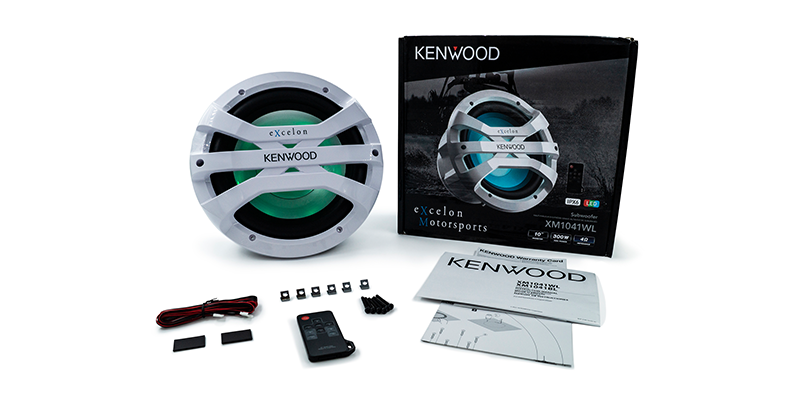

ACCESSORY
Instruction Manual
(Speaker&Remote)
1pc
Warranty Card 1pc
Tapping Screw(φ4x38mm) 6pcs/Stainless
Mounting Screw Clips 6pcs
RGB Connector Cord (3m)
※Link cable B
1pc
Remote Controller(RF) 1pc
Heat shrink tube 2pcs
Template 1pc
