STZ-RF200WD

STZ-RF200WD

Catch ALL of the ACTION

Introducing a motorsports-grade Dual Camera recording system with hide-a-way control box for stealth installations in motorcycles, side-by-sides/UTV's, ATV's, watercraft & more.
*Operating temperature rated at -4°F to 140°F.

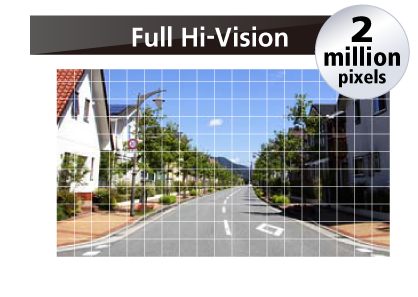

2 Megapixel HIGH DEFINITION Recording

Captures clear video from both directions.

full hivision

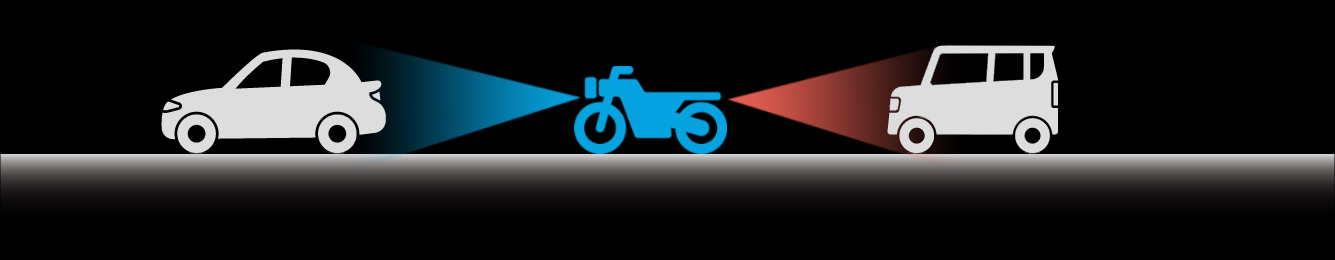

FRONT & REAR View Recording

The STZ-RF200WD includes 2 cameras: 1 to record in front of your vehicle and 1 to record behind your vehicle, all at the same time.

FRONT&REAR View Recording

EXTRA WIDE VIEW Camera Coverage

Both cameras cover a 195° (diagonal) extra wide range field of view.

Bike Angle

HDR (High Dynamic Range) for Backlighting

Built-in HDR easily records clear images in dark or well lit environments without underexposing or overexposing the image, ensuring superior night vision recording.

without HDR
without HDR
with HDR
with HDR

EIS (Electronic Image Stabilization)

Bumpy roads and surfaces have met their match! Count on smooth and steady images with effective compensation for camera shakes with its Built-in image stabilization.

without EIS
without EIS
with EIS
with EIS

3-axis G-sensor & GPS

The STZ-RF200WD is equipped with a 3-axis G-Sensor designed to detect a collision and GPS that records speed, latitude, and longitude.

3-axis G-sensor&GPS

Waterproof & Dustproof

The cameras, GPS, and switch all carry an IP66/67, meaning that they can resist high-pressure, heavy sprays of water. They are also fully sealed against dust entry. The main unit carries an IP55 rating, meaning that it is protected against dust ingress and low pressure water jets.

Waterproof&Dustproof

MEMORY Included

A 32GB microSD card is included so that you can be ready to catch all of the action right out of the box. The system supports up to a 256GB microSD card (sold separately).

MicroSDXC

SUPER Capacitor

If power is lost, this prevents the recorded video file from being corrupted, as it provides enough power to allow the video file to close properly.

point super capacitor

WIRELESS Link

Enables video playback, file transfer, and easy setup via the KENWOOD Motorsports CAM smartphone app (*Device Requirement OS: Android 7.0 or later, OS: iOS 11.0 or later).
Once files are transferred to device, you can easily share recorded videos.

DashCam Image Smartphone Image
Wireless Link Image

Review the ACTION

KENWOOD Motorsports CAM Viewer is a desktop software for displaying video recorded with this system. Simply download the installer from https://www.kenwood.com/car/app/kenwood_motorsports_cam_viewer/eng/index.html, then install according to the on-screen instructions.
*PC Requirement
Microsoft Windows 10 (32-Bit / 64-Bit). Mac OS-X 10.14 or later.

CamViewerPC Image

Compact Front & Rear Cameras

Small camera size provides for a stealthy look and easier installation in various locations.

COMPACT Front&Rear Cameras

Installation Images

left
right

YOU are in CONTROL

Multi-function control switch for simplified system control.

switch

System Installation Example

system

Cable Length
(Total connected length from main unit)

  • GPS Antenna : 6.6ft / 2m
  • Switch : 6.6ft / 2m
  • Front Camera : 6.6ft / 2m
  • Rear Camera : 6.6ft / 2m
  • Power Cable : 3.3ft / 1m

EXPAND Your Options

Optional camera extension cables to enable installation in a larger variety of vehicle types.

STZ-RFCC500

STZ-RFCC500

16ft (5m) Extension Cable

STZ-RFCC300

STZ-RFCC300

9ft (3m) Extension Cable

STZ-RFCC100

STZ-RFCC100

3.3ft (1m) Extension Cable

General Features

Recording Resolution 1920 x 1080 (2M)
Recording Format H.264 (MP4)
Image Sensor 1/2.7" CMOS Sensor
Frame Rate 27.5fps
Lens F=2.2 Fixed Focus Lens
Lens Viewing Angle 195° Diagonal (effective angle : 181°)
Recording Mode Continuous, Event, Manual
Operating Temperature -20℃ to 60℃ / -4℉ to 140℉
External Storage 32GB microSD Included (Supports max 256GB)
High Dynamic Range (HDR) Yes
GPS/GLONASS Yes
G-Sensor Yes
Super Capacitor Yes
Electronic Image Stabilization(EIS) Yes
Audio Recording Yes
Size (W x D x H)
Main Unit 79 × 104 × 22.5 mm
3-1/8 x 4-1/8 x 7/8 inches
Cameras 23.5 (Φ) × 34.4 mm
15/16(Φ) x 13/8 inches
GPS/GLONASS Antenna 27.4 × 33 × 13 mm
1-1/8 x 1-5/16 x 1/2 inches
Control Switch 25.8 × 36.9 × 9.5 mm
1 x 1-7/16 x 3/8 inches

page top

LIVE CONNECTED. DRIVE CONNECTED.

STZ-RF200WD

« scroll
Waterproofing/
Dustproofing
Main Unit IP55
Cameras IP66/67
GPS/GLONASS Antenna IP66/67
Control Switch IP66/67
Front & Rear Camera
Units
Image Sensors 2 Megapixels ( effective pixels : 1.86 megapixels)
Lens Viewing Angle 195° Diagonal (effective angle: 181°)
Frame Rate 27.5 fps
F-number 2.2
Recording Resolution 1920 x 1080
Video Quality Fine / Normal
Video File Format MP4 ( Video format : H.264 audio format : AAC)
Recorded File Length 30 seconds / 1 minute / 3minutes (Recording time for one file)
Recording Mode Continuous recording, event recording, manual recording
Data Recorded Video file, time and date, speed, location information
Audio Recording ON / OFF
HDR Yes
G-sensor Yes (5 impact sensitivity settings / OFF)
GPS Yes
Electronic Image
Stabilization
Yes
Positioning Satelites GPS / GLONASS
Storage Media microSDHC, microSDXC Class 10 UHS-I
16GB to 256GB
Recorded video Playback Methods KENWOOD Motorsports CAM App
-iOS 11 or later
-Android 7 or later
KENWOOD Motorsports CAM Viewer
- Apple Mac OS 10.14(Mojave) or later
- Microsoft Windows 10
Power Supply DC 12V
Power Consumption 0.48 A
Measurement
( W x D x H)
Main unit 79 × 104 × 22.5 mm
3-1/8 x 4-1/8 x 7/8 inches
Camera /pc 23.5 (Φ) × 34.4 mm
15/16(Φ) x 13/8 inches
GPS/GLONASS Antenna 27.4 × 33 × 13 mm
1-1/8 x 1-5/16 x 1/2 inches
Control Switch 25.8 × 36.9 × 9.5 mm
1 x 1-7/16 x 3/8 inches
Weight
(Excluding Cable)
Main unit 105 g (0.2315 lb)
Camera / pc 42 g (0.0926 lb)
GPS/GLONASS Antenna 14 g (0.0309 lb)
Control Switch 9 g (0.0918 lb)
Operating Temprature -20 °C to +60 °C
(-4 °F to 140 °F)
Warrantly 1year
