TM-V71A

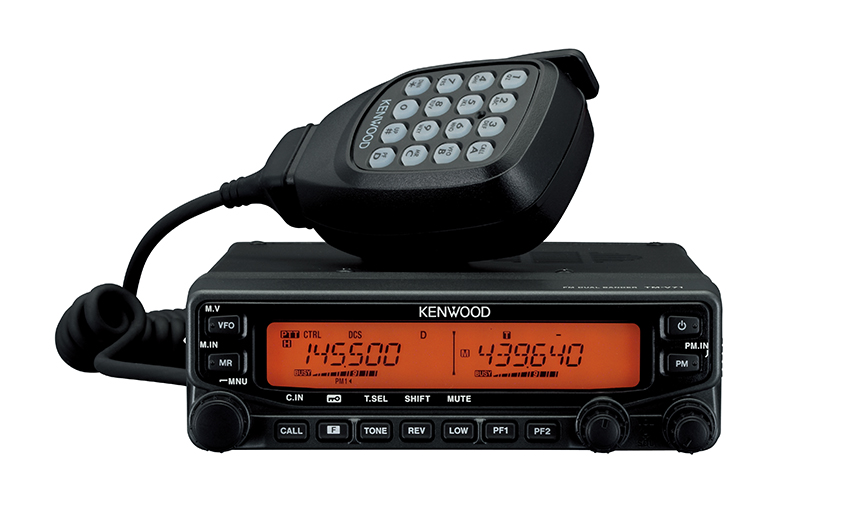

144/430MHz FM Dual Bander tm-v71a

High RF Power Output (50W)

The TM-V71A provides an impressive 50 watts of RF power (VHF & UHF), with a choice of High/Mid/Low output.

Dual Receive on Same Band

In addition to simultaneous receive on both VHF and UHF bands, this radio can receive two frequencies on the very same band. This means, for example, that you can have both the call channel and local channel, or the repeater channel and local channel, on the same band.

Compatible with ARRL TravelPlus* (US only)

The MCP-2A programming software is compatible with ARRL TravelPlus For Repeaters; this allows data export to the radio, making trip planning easy. *TravelPlus is available from the ARRL at : www.arrl.org

"Five -in-One" Programmable Memory

For extra versatility, the TM-V71A has a programmable memory that can store five entire operating profiles, ready for instant recall at the push of a button. Each profile includes such settings as display mode, frequency range, and memory mode. It can equally be used to switch between 5 VFO frequencies

1,000 Multifunction Memory Channels

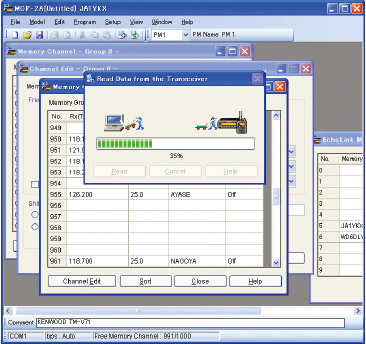

There are 1,000 split memory channels for storing essential data - such as transmit and receive frequencies, frequency step, and tone frequency - plus an additional 10 for programmable scan. You can identify each channel with up to 8 alphanumeric characters (Memory Name function). Additionally, memory data can be edited and stored on a PC using the optional PG-5G programming interface cable and MCP-2A Memory Control software (a free download from the KENWOOD website*).
*www.kenwood.com/i/products/info/amateur/software_download.html

Multiple Scan

As well as VFO scan, program scan, MHz scan, memory scan and call scan, the TM-V71A offers memory bank scan: the 1,000 channels are grouped into 10 banks for selective scanning. Also featured are scan resume (time-operated, carrier-operated, and seek), memory channel lockout, tone scan, CTCSS scan, and DCS scan.

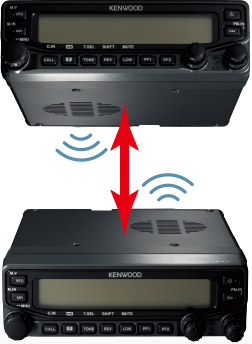

Invertible Front Panel

For greater installation convenience, the detachable front panel can be inverted so the transceiver can be mounted upside down, thus ensuring that the speaker is not obstructed.

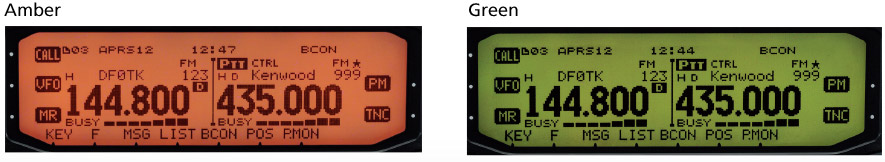

Choice of 2 Backlight Colors

To maximize visibility, the backlight color for the large LCD panel can be switched between warm amber and cool green.

104-Code Digital Code Squelch

In addition to CTCSS (42 subtone frequencies), the TM-V71A is equipped for DCS (104 codes). Whatever code is chosen, the squelch will only open for reception if the other party uses the identical code.

Voice Guidance & Strage Option (VGS-1)

The audible announcement function is enabled for blind-key operation using the optional VGS-1 unit, which also provides up to 30 seconds of continuous recording.

Wether Alert/RX (US Only)

This transceiver is capable of receiving the NOAA Weather Band and responding to emergency transmissions such as storm warnings by emitting an audible alert tone.

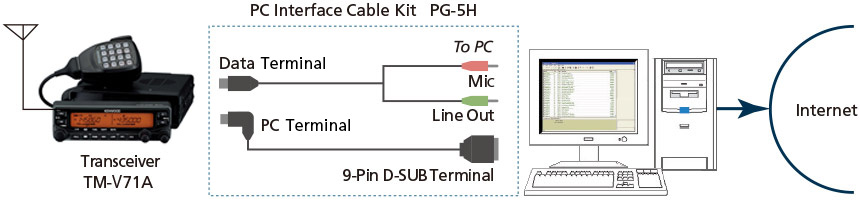

EchoLink® Sysop Mode for Node Terminal Operation

When the TM-V71A is connected to a PC (with the necessary Windows-compatible software installed) using the PG-5H option, it can operate as a node terminal for EchoLink ?. EchoLink® connects radio amateurs through the Internet using VoIP technology: any transceiver with access to a node can connect to any other in the world as long as it too has node access. It is also possible to access the EchoLink ? network directly from a PC. To register for EchoLink ? (using your call sign), access the official website at www.echolink.org.

EchoLink® Memory (Automatic Dialer)

Up to 10 DTMF memory channels dedicated to EchoLink ? can store call signs (or conference names) and Node Numbers. Memory Control is also possible using a PC with the MCP-2A software.

Other Features

Wide reception: 118-524MHz, 800-1300MHz*
MC-59 16-Key Hand Microphone with backlighting
Separate VOL/SQL for A & B Bands
6-pin Mini-DIN Socket for External TNC
8-pin Mini-DIN Socket for PC Connection
Programmable Function Keys
Band Mask
Call Channel
S-meter Squelch & Hysteresis Timer
Monitor Function
Mute
3-hour Auto Power Off
MHz Mode
Selectable Frequency Step
Shift Function
Repeater Offset (selectable)
Reverse
Auto Repeater Offset (on/off, VHF only)
Automatic Simplex Checker
DTMF Memory (10 channels, 16 digits)
DTMF Remote Control
Time Out Timer
Key Lock
Power-on Password
Memory Shift
Programmable VFO
Beep On/Off, Volume Control
Mic Program Function
Channel Display Mode
Power-on Message
LCD Brightness Control, Auto Brightness
Switch to External Speaker
Reset (VFO, PART, PM, FULL)

*Excluding cellular blocked + frequencies

General Features

- HIGH RF POWER OUTPUT (50W)
- DUAL RECEIVE ON SAME BAND (VxV, UxU)
- COMPATIBLE WITH ARRL TravelPlus*
- "FIVE-IN-ONE" PROGRAMMABLE MEMORY
- 1,000 MULTIFUNCTION MEMORY CHANNELS
- MULTIPLE SCAN
- INVERTIBLE FRONT PANEL
- CHOICE OF 2 BACKLIGHT COLORS
- 104-CODE DIGITAL CODE SQUELCH
- VOICE GUIDANCE & STORAGE OPTION (VGS-1)
- WEATHER ALERT/RX (US only)
- EchoLink® Sysop MODE FOR NODE TERMINAL OPERATION
- EchoLink® MEMORY (AUTOMATIC DIALER)
