Speaker

Stage - Wide Range Hi-Quality Sound

If you want to replace your factory speakers with a discreet installation, the KENWOOD new S series speakers are ideal for their ease of installation with wide range high quality sound which we call “stage sounding”.

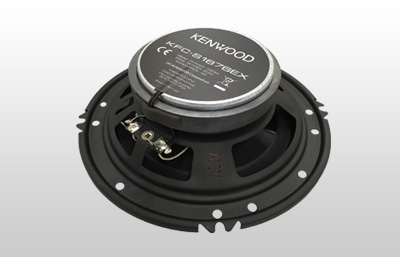

KFC-S1676EX

16cm 2Way Stage Sound Speaker

KFC-S1676EX KFC-S1676EX

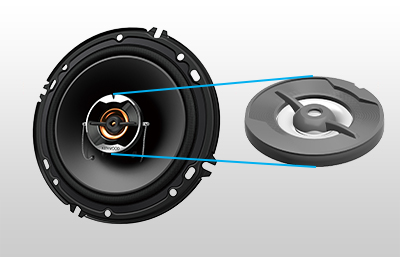

  • Sound Field Enhancer

    Sound Field Enhancer

    enhances 5kHz and upper frequencies and reproduces life-like “stage” sounding.

    Sound Field Enhancer
  • Bigger Magnet Circuit

    Bigger Magnet Circuit

    creates enough power to drive woofer cones and reproduce high-density sound.

    Bigger Magnet Circuit

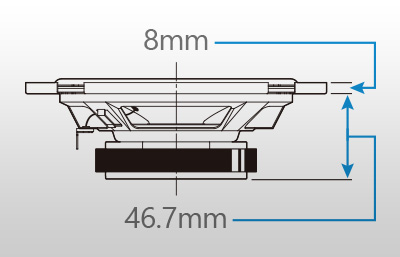

  • Shallow Depth

    Shallow Depth

    Easy to replace your factory speakers with a discreet installation.

    Shallow Depth
Speaker Tech-Spec KFC-S1676EX
Peak Input Power 330W
RMS Input Power 60W
Size 16cm 2Way
Tweeter Design Balanced Dome
Tweeter Magnet Composition Neodymium
Woofer Magnet Composition FerriteΦ85 x t12
Nominal Impedance 4ohms
Frequency Response 80Hz - 22kHz
Sensitivity (dB/W at 1m) 87dB
Mounting Depth 46.7mm

KFC-S6976EX

6 x 9 inch 3Way Stage Sound Speaker

KFC-S6976EX
Speaker Tech-Spec KFC-S6976EX
Peak Input Power 500W
RMS Input Power 80W
Size 6 x 9 inch 3Way
Tweeter Design Cone
Tweeter Magnet Composition Ferrite
Woofer Magnet Composition FerriteΦ90 x t12
Nominal Impedance 4ohms
Frequency Response 44Hz - 18kHz
Sensitivity (dB/W at 1m) 87dB
Mounting Depth 79.3mm

KFC-S6966

6 × 9 inch 3Way Speaker

KFC-S6966
Speaker Tech-Spec KFC-S6966
Peak Input Power 400W
RMS Input Power 45W
Size 6 x 9 inch 3Way
Tweeter Design Cone
Tweeter Magnet Composition Ferrite
Woofer Magnet Composition FerriteΦ80 x t10
Nominal Impedance 4ohms
Frequency Response 35Hz - 20kHz
Sensitivity (dB/W at 1m) 91dB
Mounting Depth 76.8mm

KFC-S1666/1366/1066

16cm / 13cm / 10cm 2Way Speaker

KFC-S1666/1366/1066
Speaker Tech-Spec KFC-S1666 KFC-S1366 KFC-S1066
Peak Input Power 300W 260W 220W
RMS Input Power 30W 30W 21W
Size 16cm 2Way 13cm 2Way 10cm 2Way
Tweeter Design Balanced Dome Balanced Dome Balanced Dome
Tweeter Magnet Composition Neodymium Neodymium Neodymium
Woofer Magnet Composition FerriteΦ80 x t10 FerriteΦ70 x t10 FerriteΦ70 x t10
Nominal Impedance 4ohms 4ohms 4ohms
Frequency Response 40Hz - 22kHz 45Hz - 22kHz 50Hz - 22kHz
Sensitivity (dB/W at 1m) 90dB 89dB 88dB
Mounting Depth 43.2mm 43.7mm 43mm

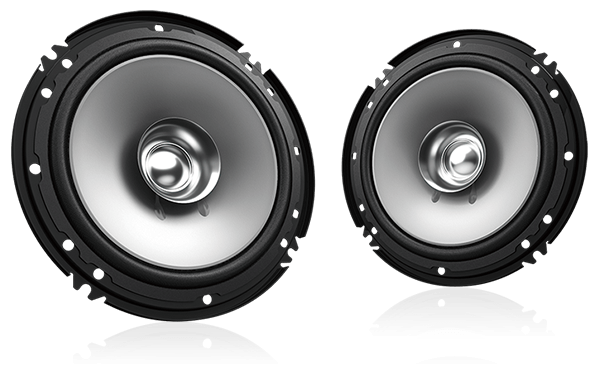

KFC-S1656G/1356G/1056G

16cm / 13cm / 10cm Dual Cone Speaker

KFC-S1656G/1356G/1056G
Speaker Tech-Spec KFC-S1656G KFC-S1356G KFC-S1056G
Peak Input Power 300W 260W 220W
RMS Input Power 30W 30W 21W
Size 16cm Dual Cone 13cm Dual Cone 10cm Dual Cone
Tweeter Design
Tweeter Magnet Composition
Woofer Magnet Composition FerriteΦ80 x t10 FerriteΦ70 x t10 FerriteΦ70 x t10
Nominal Impedance 4ohms 4ohms 4ohms
Frequency Response 40Hz - 18kHz 45Hz - 18kHz 50Hz - 18kHz
Sensitivity (dB/W at 1m) 90dB 89dB 88dB
Mounting Depth 43mm 43.5mm 43mm

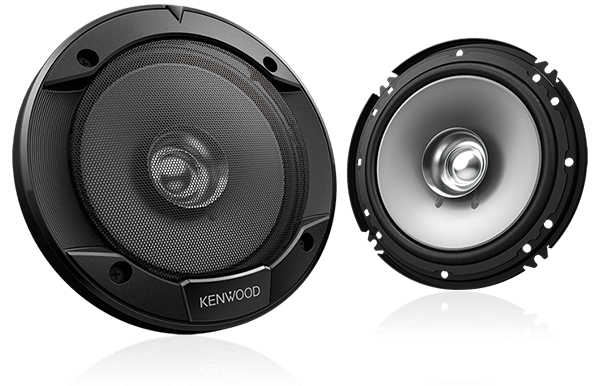

KFC-S1656/1056

16cm / 10cm Dual Cone Speaker

KFC-S1656/1056
Speaker Tech-Spec KFC-S1656 KFC-S1056
Peak Input Power 300W 220W
RMS Input Power 30W 21W
Size 16cm Dual Cone 10cm Dual Cone
Tweeter Design
Tweeter Magnet Composition
Woofer Magnet Composition FerriteΦ80 x t10 FerriteΦ70 x t10
Nominal Impedance 4ohms 4ohms
Frequency Response 40Hz - 18kHz 50Hz - 18kHz
Sensitivity (dB/W at 1m) 90dB 88dB
Mounting Depth 43mm 43mm

KFC-E715P

17cm Component Speaker

KFC-E715P
Speaker Tech-Spec KFC-E715P
Peak Input Power 300W
RMS Input Power 30W
Size 17cm Component
Tweeter Design PEI Balanced Dome
Tweeter Magnet Composition Neodymium
Woofer Magnet Composition Ferrite
Nominal Impedance 4ohms
Frequency Response 30Hz - 22kHz
Sensitivity (dB/W at 1m) 92dB
Mounting Depth 44mm

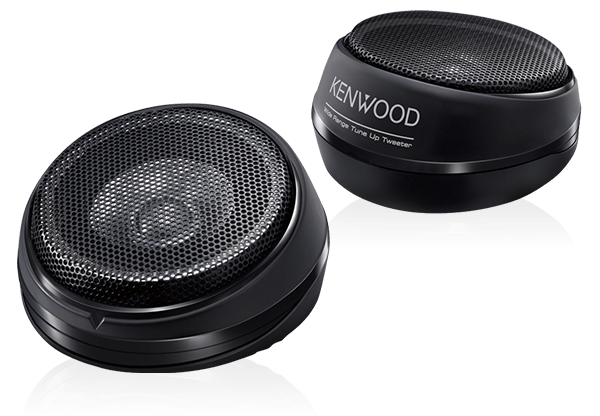

KFC-T40A

40mm Tweeter

KFC-T40A
Speaker Tech-Spec KFC-T40A
Peak Power Handling 280W
RMS Power Handling 65W
Size 40mm Tweeter
Tweeter Design PET Cone
Tweeter Magnet Composition Ferrite
Woofer Magnet Composition
Nominal Impedance 6ohms
Frequency Response 3kHz – 20kHz
Sensitivity (1W / 1m) 90dB
Mounting Depth
